MOTEE UX65 Optical Sensor DC5~24V Plug-in Slot Photoelectric Sensor for Factories

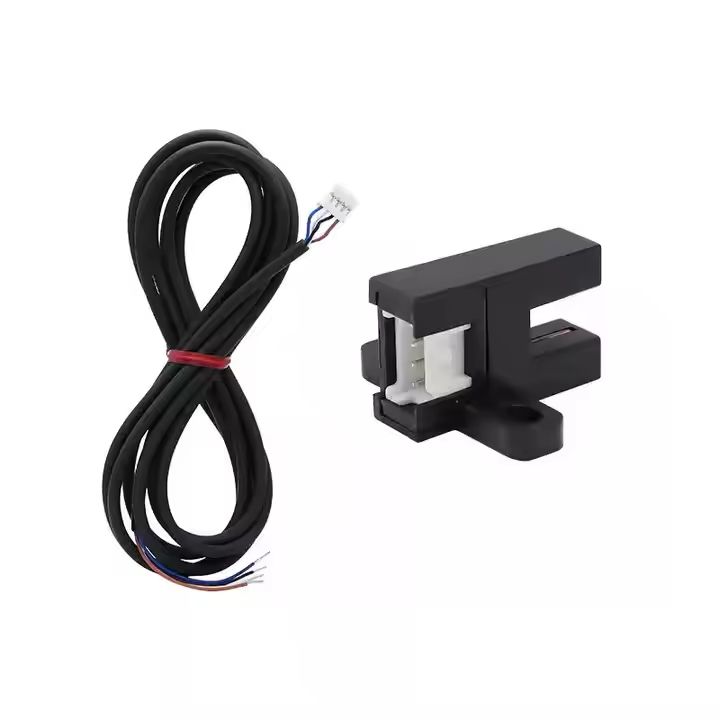

Cable Outlets
Optional UX1008 Connector
Optional UX1008-GR High-Flexibility Cable.
Wide Voltage Range
Power Supply Voltage Range 5~24VDC
High-Speed Response
High-speed response frequency of 3kHz.
Description
Description

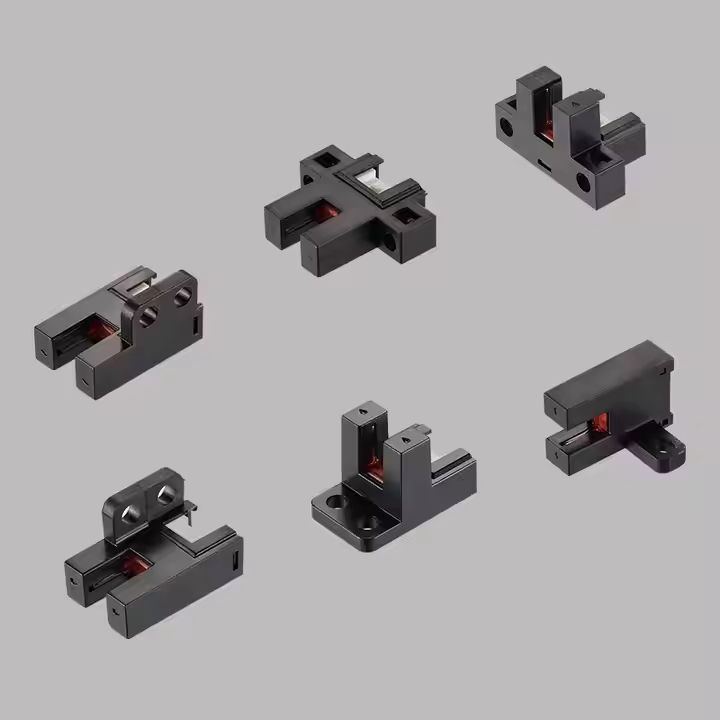

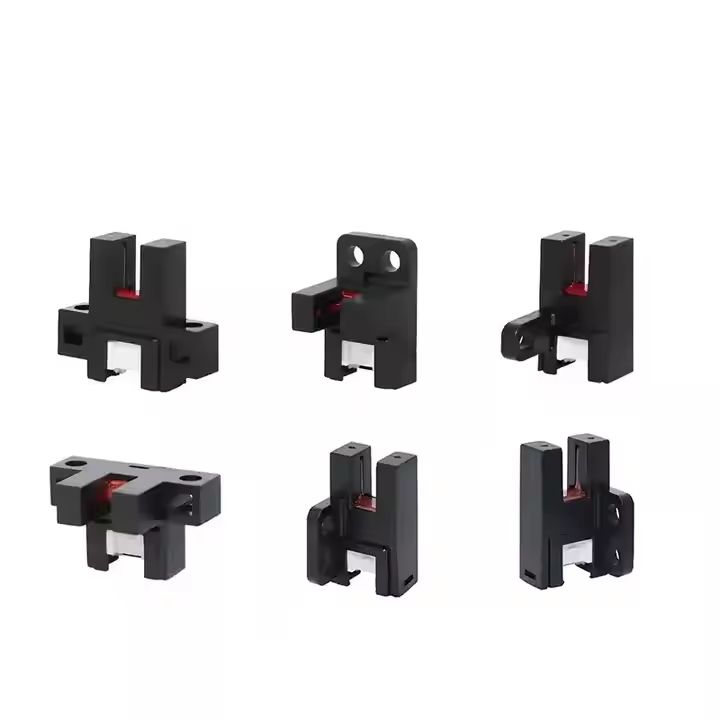

Product Model | K-Type | L-Type | T-Type | Y-Type | F-Type | R-Type |
Operating voltage | 5VDC~24V DC±10% ripple P-P10% or less | |||||
Residual voltage | 1V or less (load current 100mA) | |||||
Current consumption | ≤8mA | |||||
Protective structure | IP50(IEC) | |||||
Ambient light | Incandescent lamp illuminance on the light receiving surface: less than 1000 lux | |||||
Ambient temperature | -25℃-+55℃ (no condensation or icing), storage: -30℃-+80℃ | |||||
Ambient humidity | 5%RH-85%RH, Storage: 5%RH-95%RH | |||||
Withstand voltage | AC1,000V 1 minute between all power connection terminals and the housing | |||||
Vibration resistance | Frequency 10Hz~2,000Hz, double amplitude 1.5mm (maximum acceleration 196m/s2), XYZ directions 2 hours | |||||
Insulation resistance | Between all power connection terminals and the housing, more than 20MΩ, based on a DC250V high resistance meter | |||||
Protection level | IP50(IEC) | |||||
Material | ABS+PC | |||||
Outlet mode | Connectors | |||||
Model NPN | UXK65 | UXL65 | UXT65 | UXY65 | UXF65 | UXR65 |
Model PNP | UXK65P | UXL65P | UXT65P | UXY65P | UXF65P | UXR65P |
