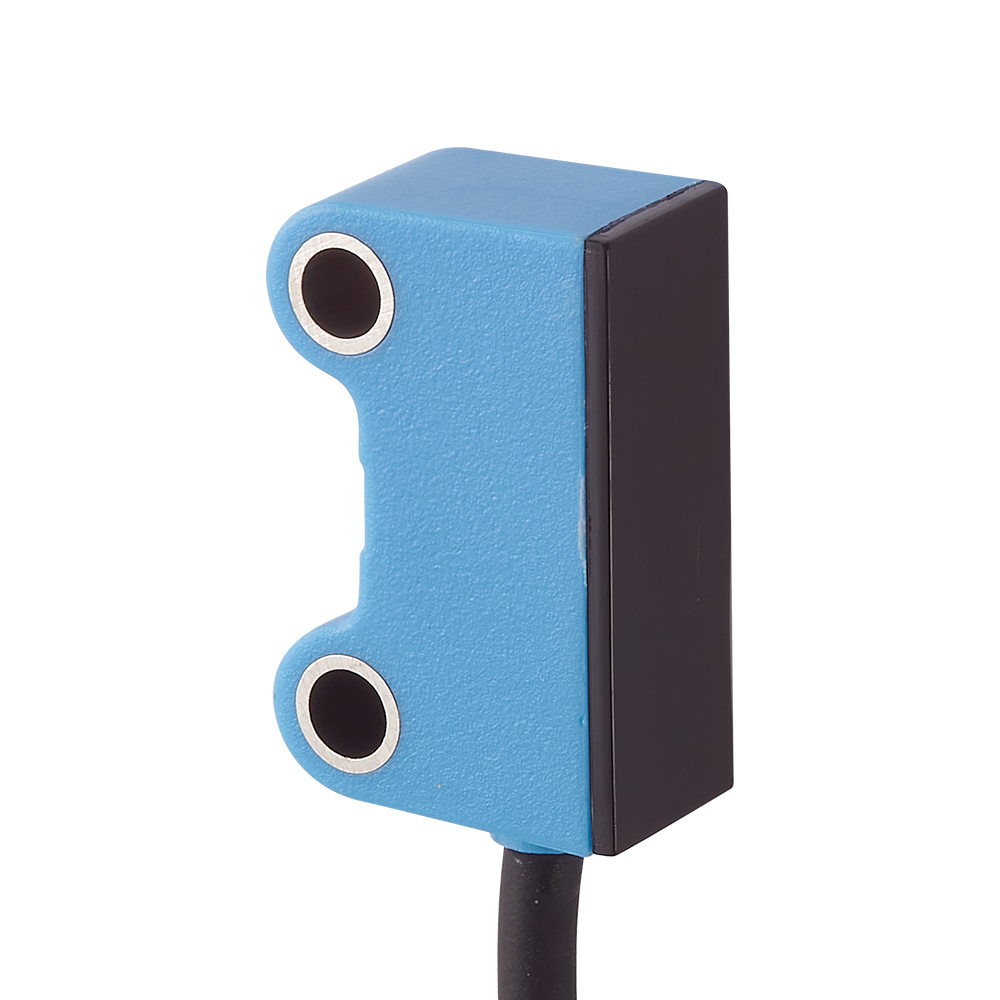

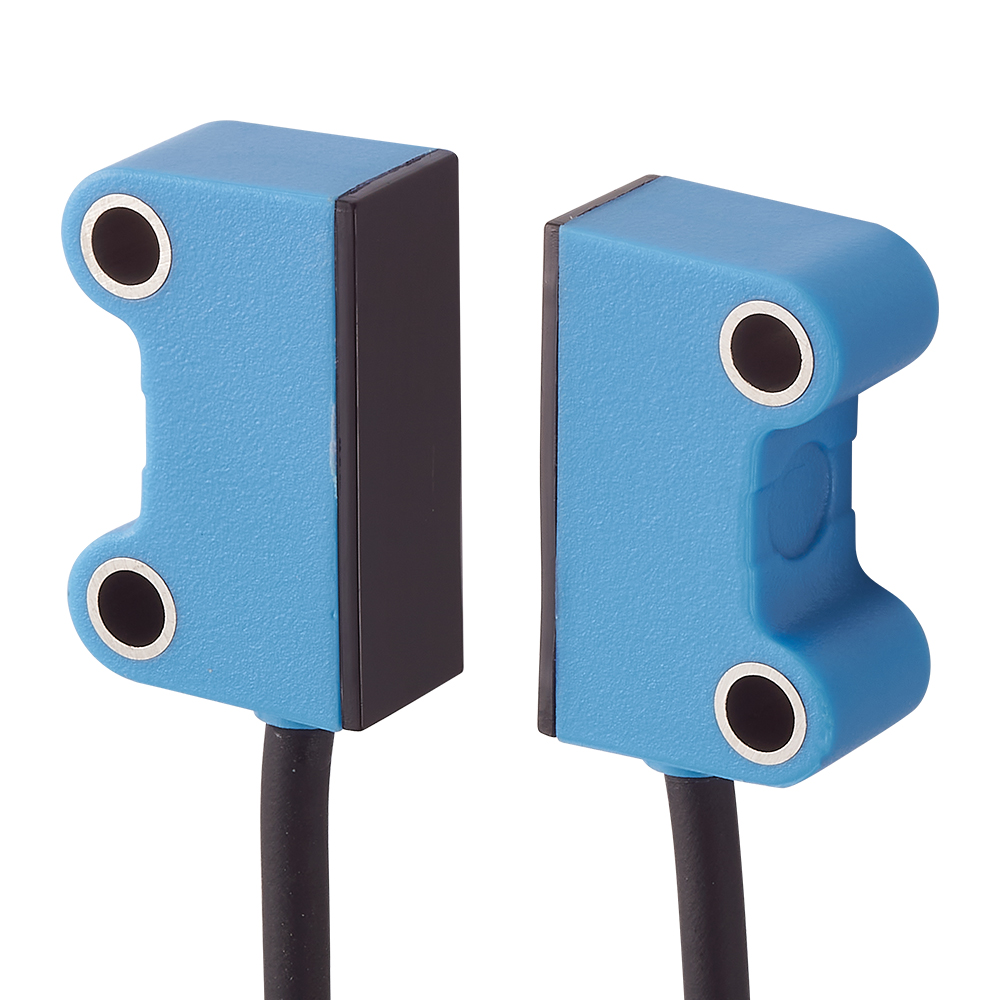

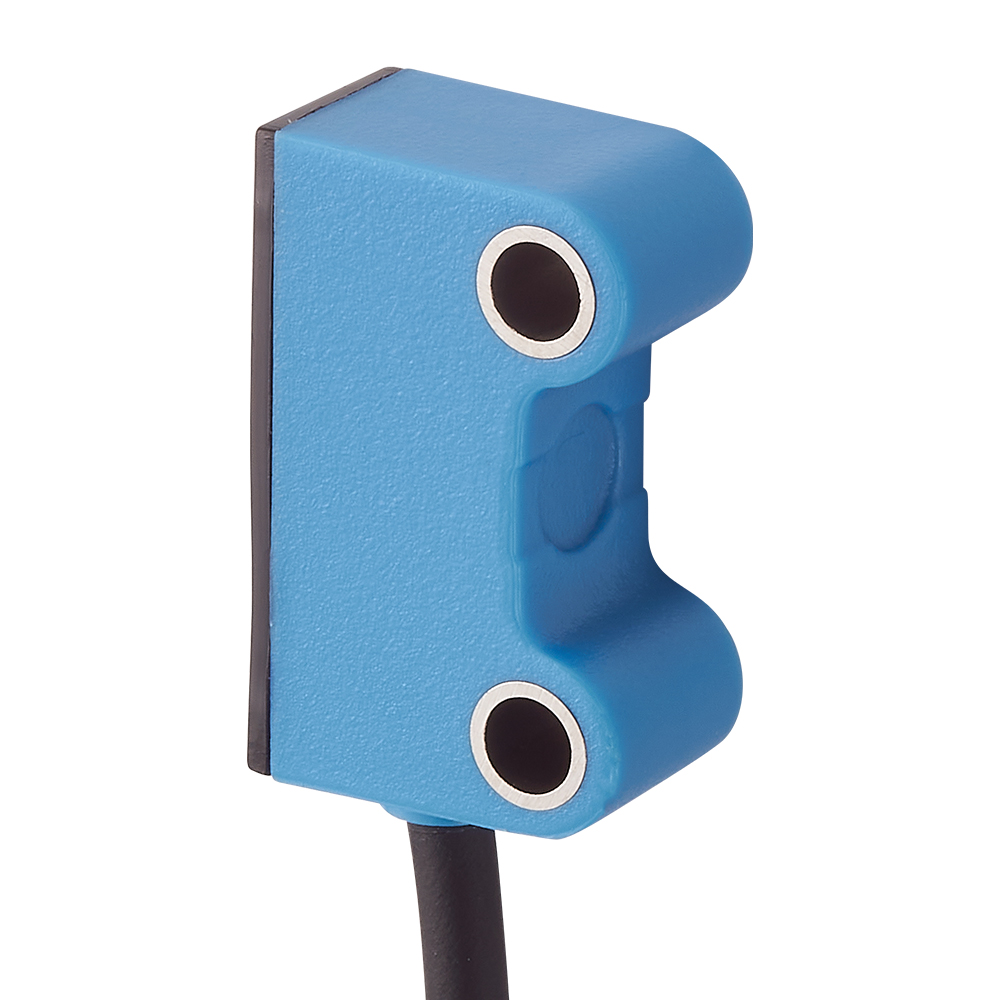

MOTEE Ultra-small Photoelectric Switch Diffuse Reflection Photoelectric Switch square Micro Limit Switch Anti-interference
Ultra-compact body
Internationally compatible 15mm aperture spacing
Comprehensive range of models
Complete range of detection methods including through-beam and reflective detection
Optical lens
Built-in optical lens capable of detecting objects as small as 0.5mm
Description
Description
Product Model | Through-beam type | Diffuse reflection | ||
NPN.NO lead type | EZ-T31 | EZ-D31 | ||
PNP.NO lead type | EZ-T31P | EZ-D31P | ||
Detection distance | 1500mm | 100mm | ||
Detecting objects | Opaque objects with a diameter of more than 4mm | |||
Detection distance | More than 20% of the detection distance | |||
Control output | Normally open and normally closed switchable | |||
Response frequency | Less than 1ms | |||
Supply voltage | DC12-24 pulsation (p-p) less than 10% (DC10-30) | |||
Current consumption | ≤25mA | |||
Switching capacity | ≤3W | |||
Residual voltage | 1V or less (load current 100mA) | |||
Circuit protection | Surge protection, short circuit protection, reverse polarity protection nm | |||
Light source | 960nm infrared light | |||
Display Light | Action indicator light (red) | |||
Ambient temperature | Operation: -25°C~+70°C (no ice, no frost) Storage: -40°C~+85°C (no ice, no frost) | |||
Impact of ambient illumination | Daylight: 10000LX or less Incandescent lamp: 3000LX or less | |||
Vibration (durability) | 10-55Hz, 1.5mm double amplitude, up to 2h in X, Y, Z directions | |||
Impact (durability) | 500m/s2 double amplitude, 10 times in X, Y, Z directions | |||
Shell material | PC | |||
