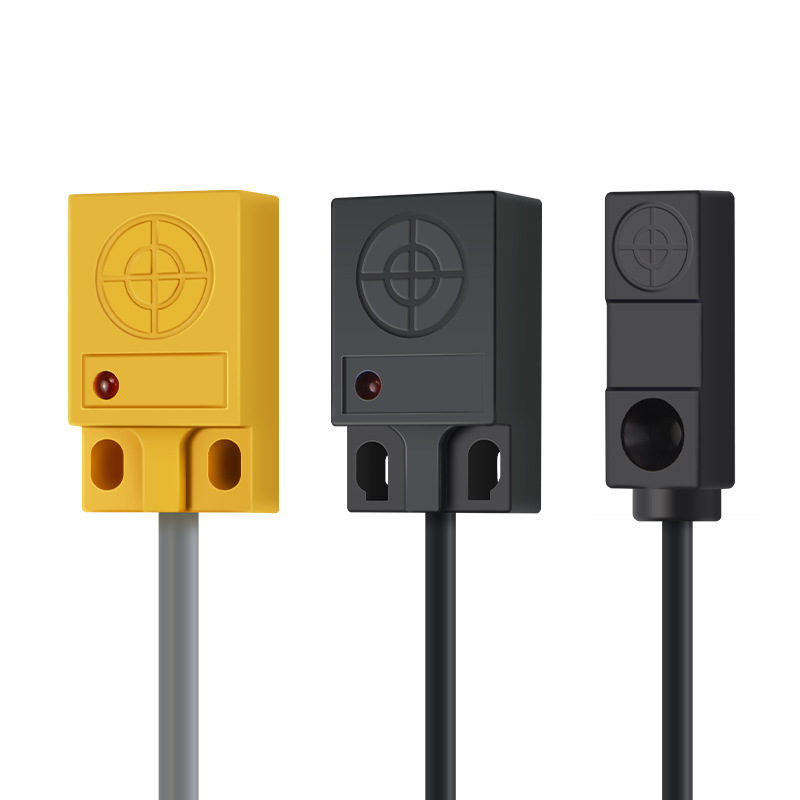

MOTEE square Proximity Sensor EB Flat Reflective Infrared Proximity Sensor 12V24V
Installation Methods
Available for both top-mounted and front-mounted detection.
Can be installed anywhere.
The sensor is only the size of a fingertip, unrestricted by installation space.
Cost Advantage
Achieves high-performance, cost-effective standard proximity sensor.
Available with bend-resistant cable.
10 times better bend resistance (Note: -GR). Ideal for movable parts such as robot arms.
Description
Description
Product Model | EB-W2N | EB-WS2N | EB-W3N | EB-W4N | EB-W5N |
Detection distance | 2mm | 3mm | 5mm | ||
Set distance | 0-1.5mm | 0-2.5mm | 0-4.5mm | ||
Hysteresis | Less than 10% of the detection distance | ||||
Detectable objects | Magnetic Metal | ||||
Standard detection object | Iron 8x8x1mm | Iron 15x15x1mm | |||
Power supply voltage (operating voltage range) | DC12~24V | ||||
Ripple (P-P) less than 10% | |||||
(DC10~30V) | |||||
Current consumption | 15mA or less (at DC24V, no load) | 10mA or less (at DC24V) | |||
Protective structure | IEC standard IP67, company internal standard oil resistant | IEC standard IP67 | |||
