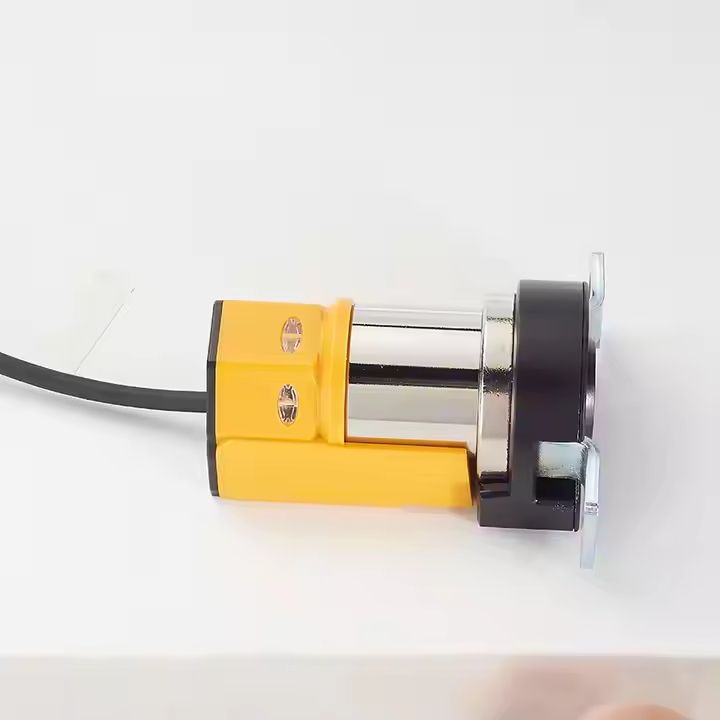

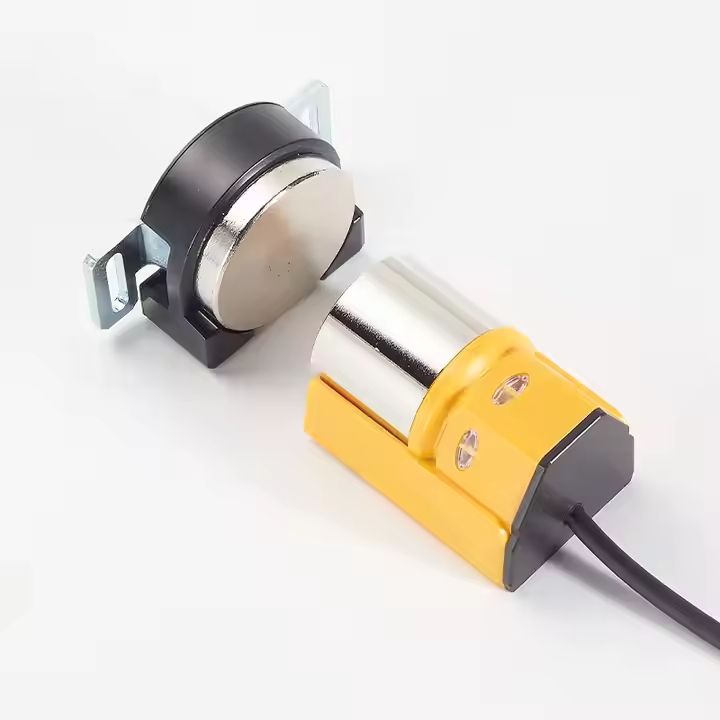

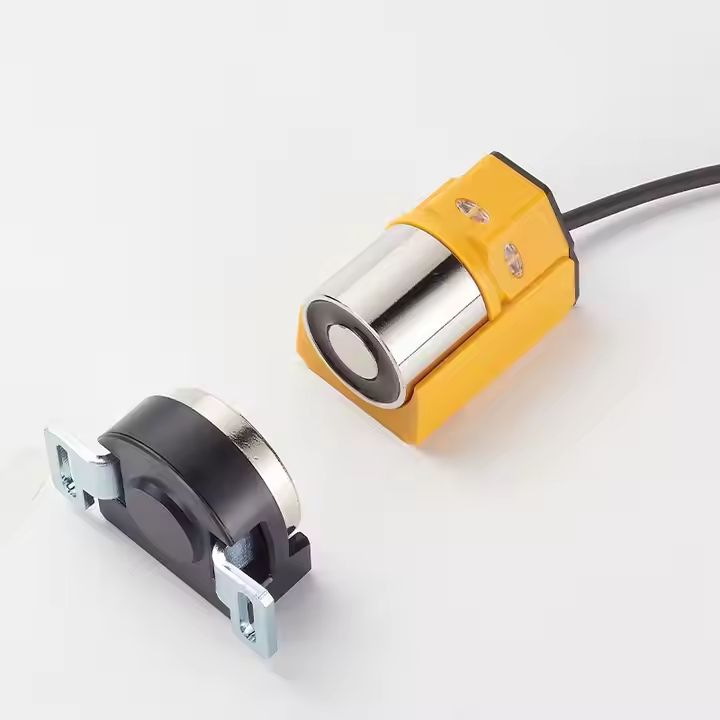

MOTEE Safety Magnetic Switch Proximity Sensor MT-M50 Electromagnetic Lock Safety Door Lock Industrial Automation
Features:
Easy and secure locking via electromagnetic force
This product features a flat electromagnetic locking structure, effectively solving door misalignment issues.
It also includes dual-channel Hall effect sensing.
The MT-M50 series is not only keyless and simple in structure,
but also significantly enhances security.

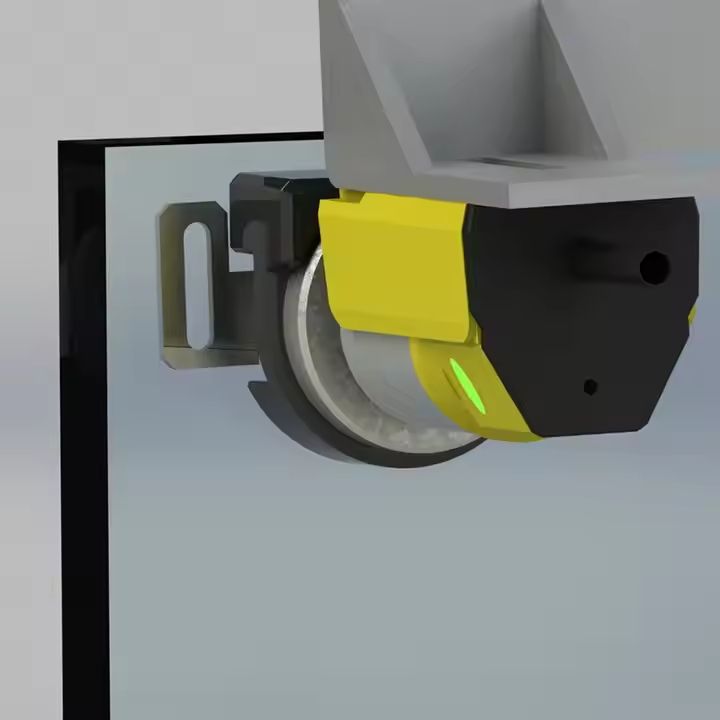

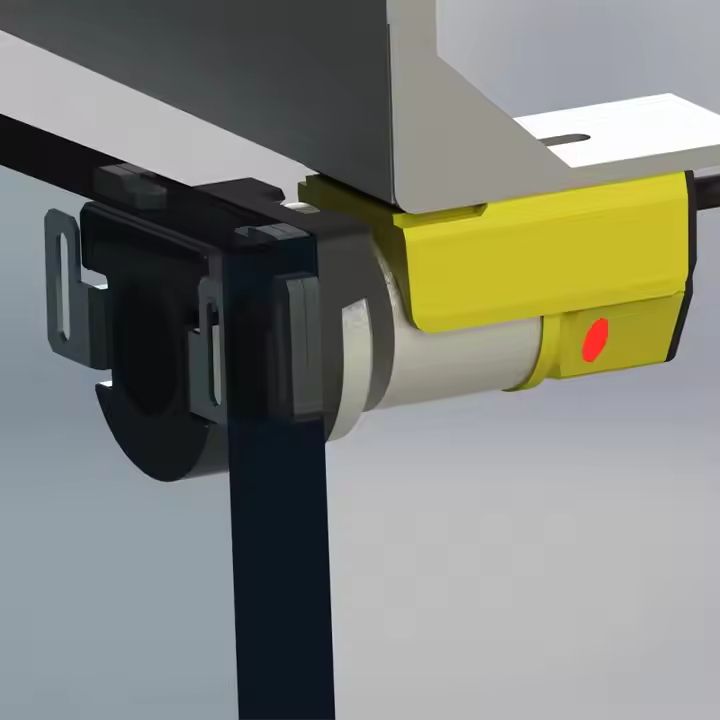

Easy installation and ultra-compact design
No need to worry about installation location; it can be installed and used even in confined spaces.
Description
Description
Type | MT-M50N | MT-M50P | ||
RFID radio frequency identification model | MT-M50N-RF | MT-M50P-RF | ||
Signal | Dual NPN | Road PNP | ||
Locking Force | 450N (locked) ~1N (unlocked) | |||
Operating Characteristics | ||||
– Working Distance | 2mm (OFF→ON) | |||
– Response Time | Lock→Unlock: 250ms Unlock→Lock: 50ms | |||
Safety Output (OSSD) | ||||
– Type | 2-channel transistor output | |||
– Max. Load Current | 100mA per channel | |||
– Residual Voltage | ≤2V (with 2m cable) | |||
Input Specifications | ||||
– OFF Voltage | ≤2.0V (5m cable) | |||
– Enable Input Current | ~2mA | |||
– Lock Control Current | ~2.5mA | |||
Certifications | CE, SIL3 (IEC 61508) | |||
Protection Features | Power reverse polarity protection, per-output short-circuit/surge protection, output reverse protection | |||
Power Supply | 24VDC +20%/-15% (Class 2), ≤10% ripple (p-p) | |||
Environmental Ratings | ||||
– Power Consumption | 5W | |||
– IP Rating | IP65 | |||
– Operating Temperature | -20°C to +55°C (no ice) | |||
– Storage Temperature | -25°C to +70°C (no ice) | |||
– Storage Humidity | 5% to 95% RH | |||
Mechanical Robustness | ||||
– Vibration Resistance | 10-55Hz, 2.0mm amplitude, 5min per X/Y/Z (IEC 60947-5-3) | |||
– Shock Resistance | 30G, 6 impacts per X/Y/Z (IEC 60947-5-3) | |||
