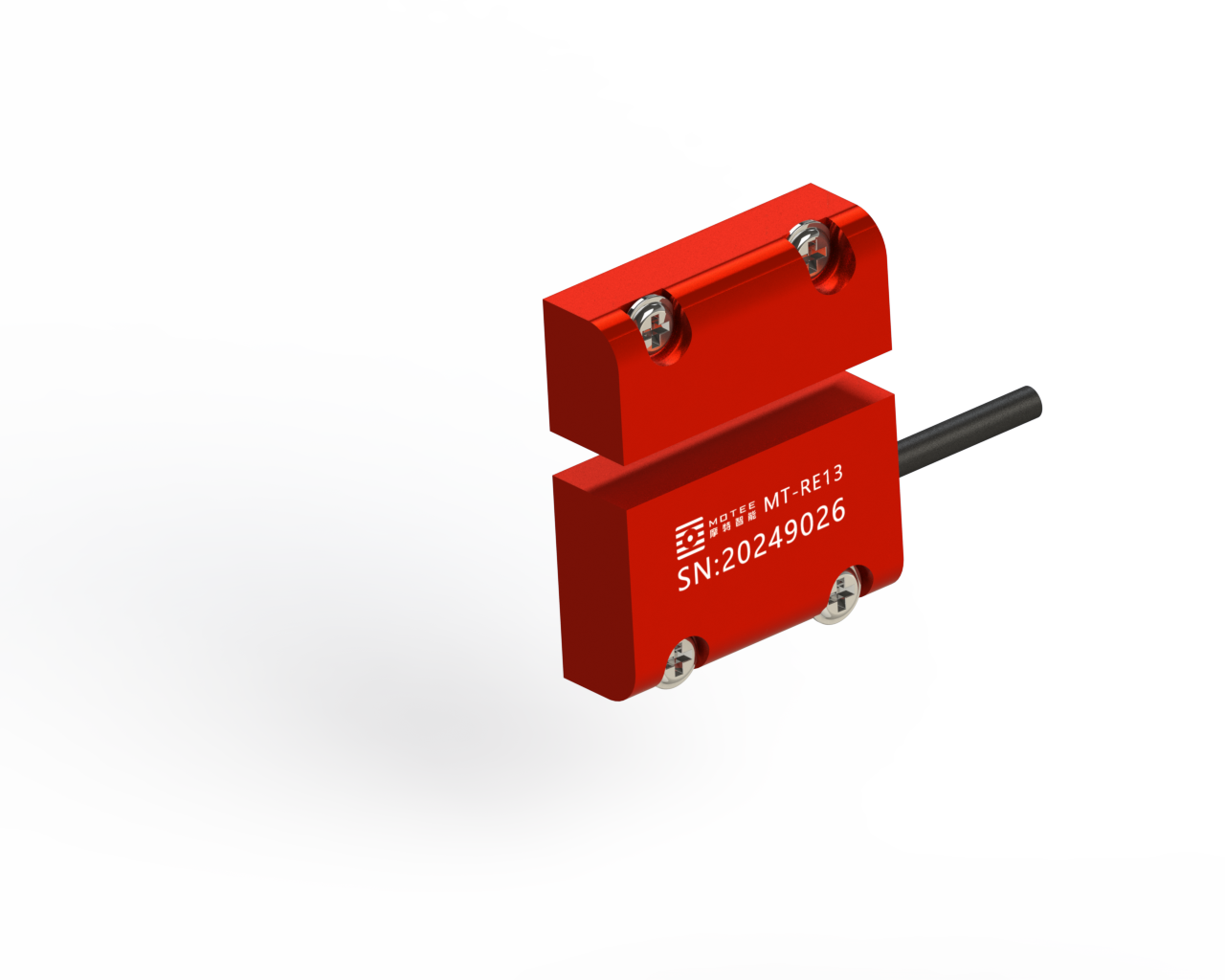

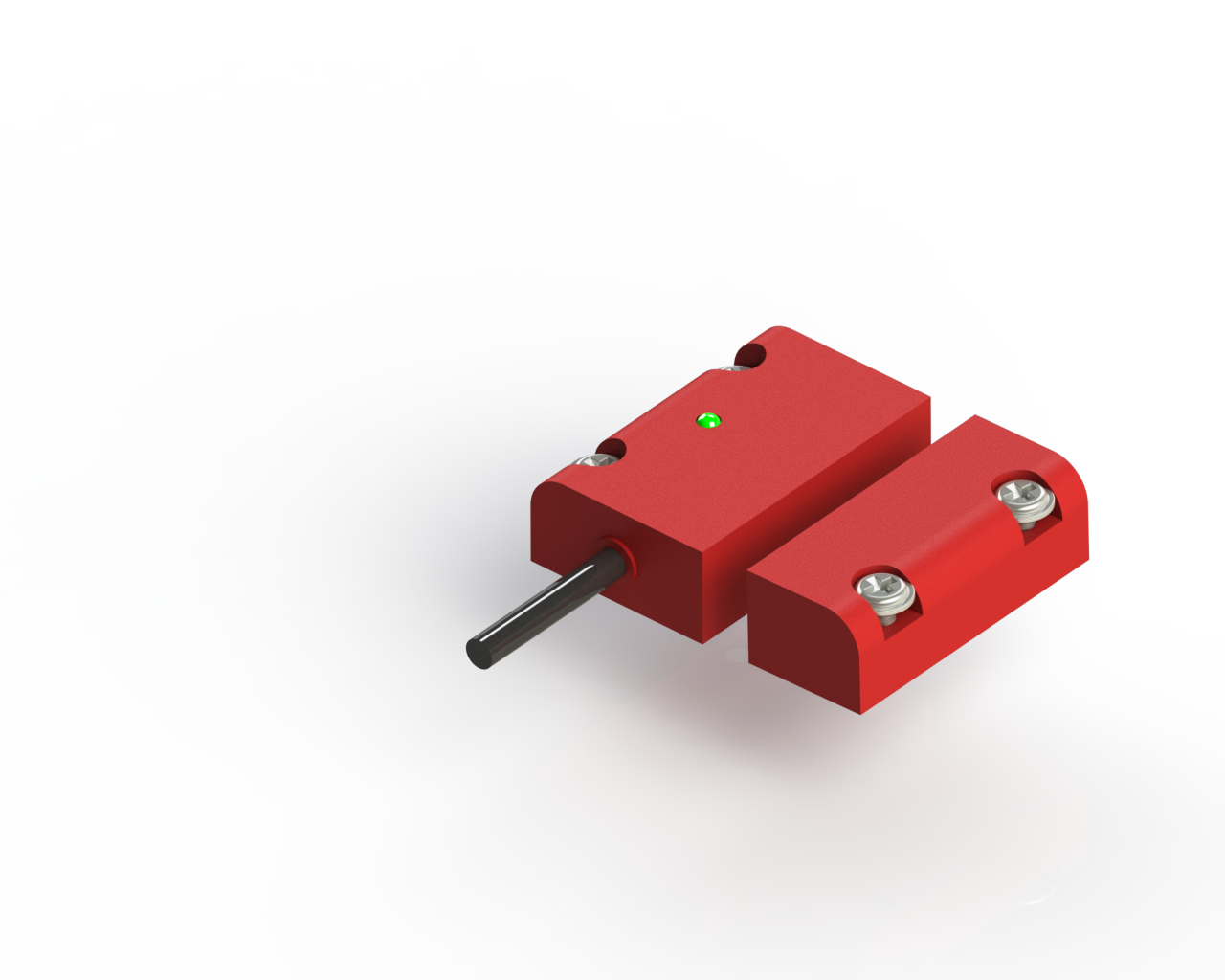

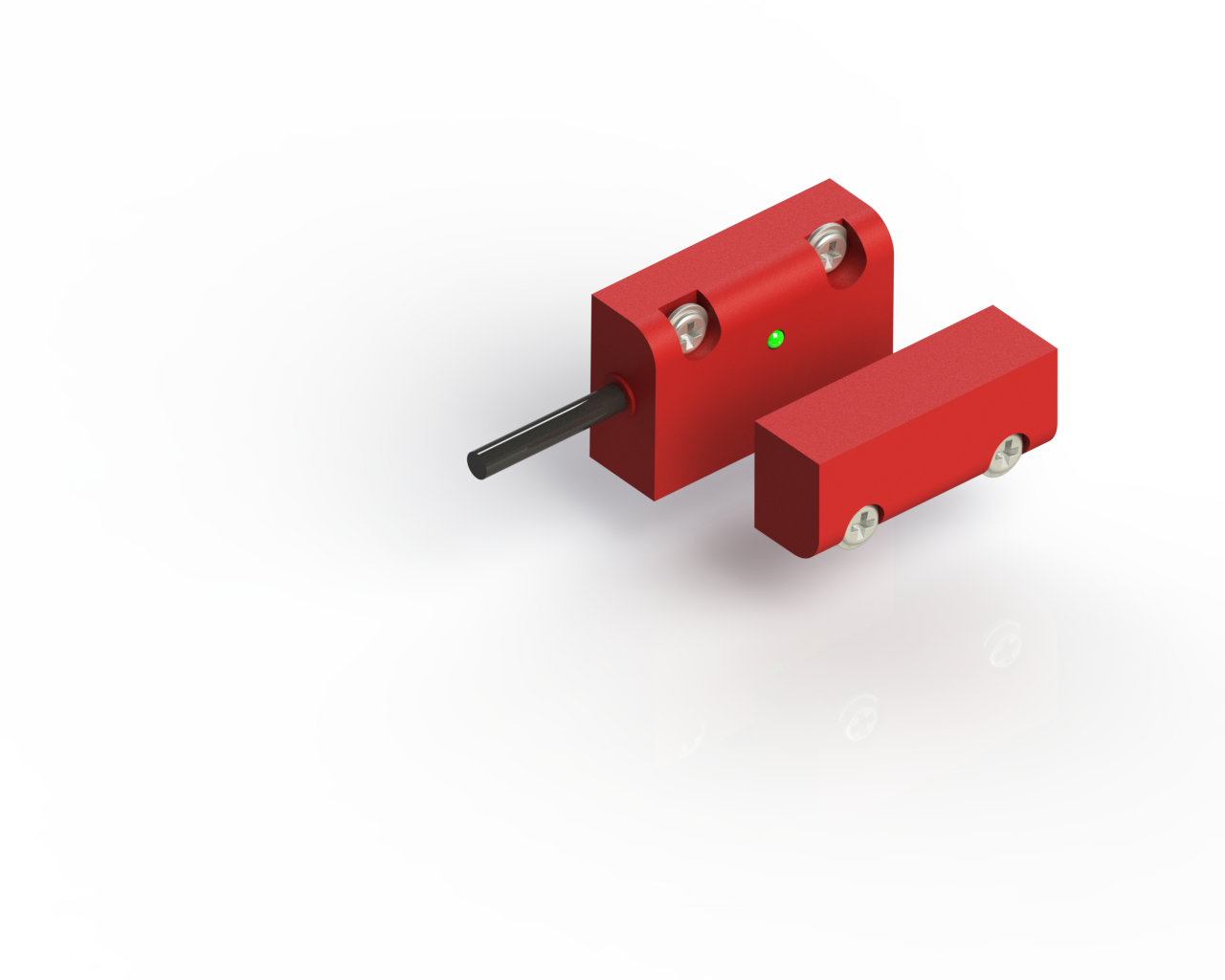

MOTEE Non-contact Safety Door Switch MT-RE13 Magnetic Coding Door Magnetic Sensor Industrial Door Magnetic Induction
The MT-RE13 series safety switches utilize RFID technology, offering high security and confidentiality (unique coding available), strong anti-interference capabilities, and stability. Alternatively, they can combine multiple magnetically encoded magnetic elements, requiring a specific triggering sequence for proper operation. Non-contact operation provides high misalignment tolerance, a wide detection range, and easy installation. Multiple switches can be connected in series. The MT-RE13-NP/MT-RE13-IO can be used with the MSR-N/P safety module to achieve Level 4 safety, is CE certified, and complies with ISO13849-1 SIL3PLe, Category 4.
Description
Product Model | MT-RE13-NP | MT-RE13-RF0 | MT-RE13-RF1 | MT-RE13-IO |
Signal method | Magnetic encoding | High frequency RFID radio frequency technology | Reed switch contacts | |
Output method | NPN normally closed + PNP normally closed | Two independent normally open contacts | ||
Safety Standards | ISO13849-1,IEC/EN60947-5-3 | |||
Outlet mode | irect outlet 2 meters, outlet with aviation plug (-J) | |||
Working distance | On.Min:8mm; Off.Max:17mm | |||
Typical Tolerance | Above or side | |||
Output current (max) | 100mA | |||
Response time | 5ms | |||
Protection level | IP67 | |||
Operating frequency | 10Hz | |||
Operating temperature | -10~+55℃ | |||
Relative humidity | 5%~95% | |||
Material | ABS+PC | |||
