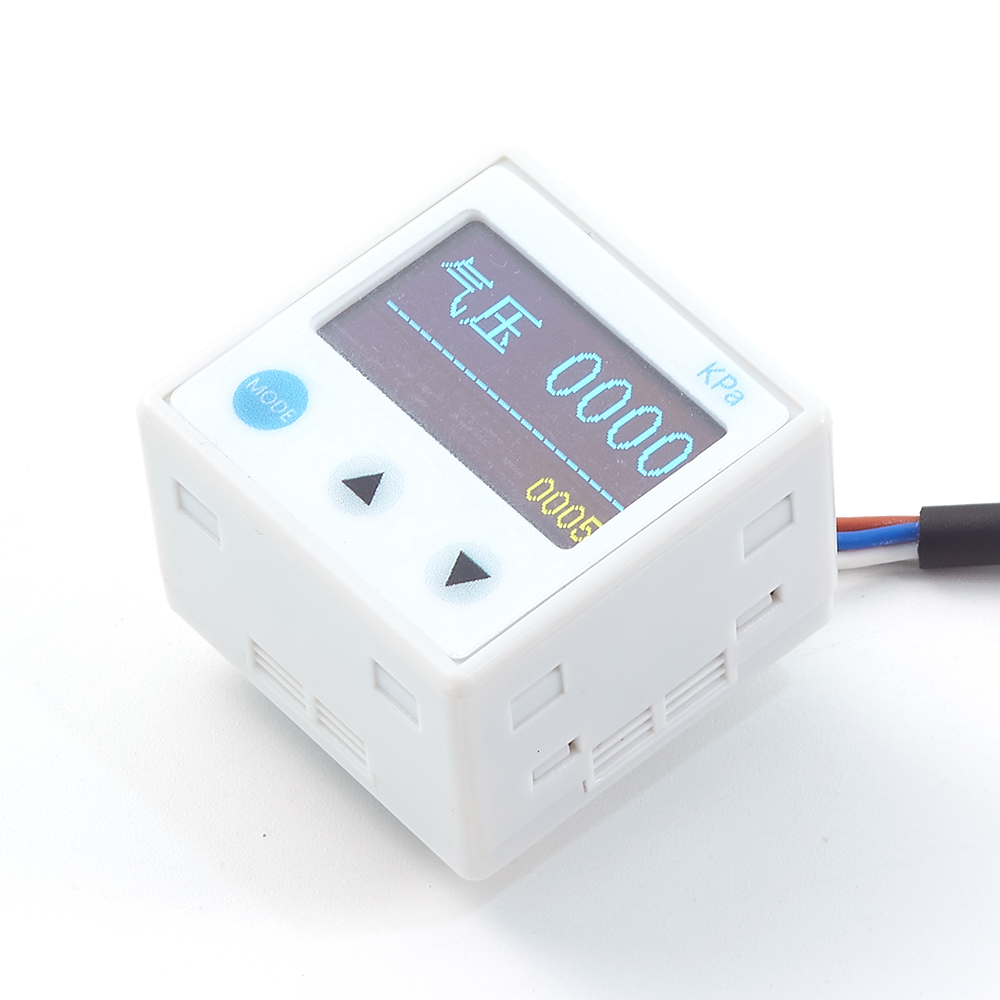

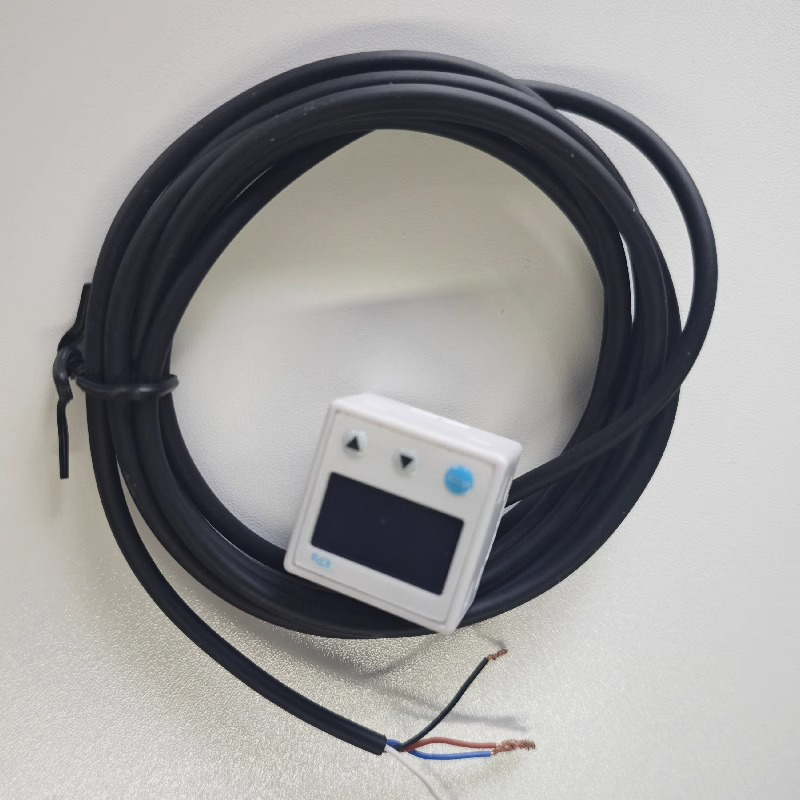

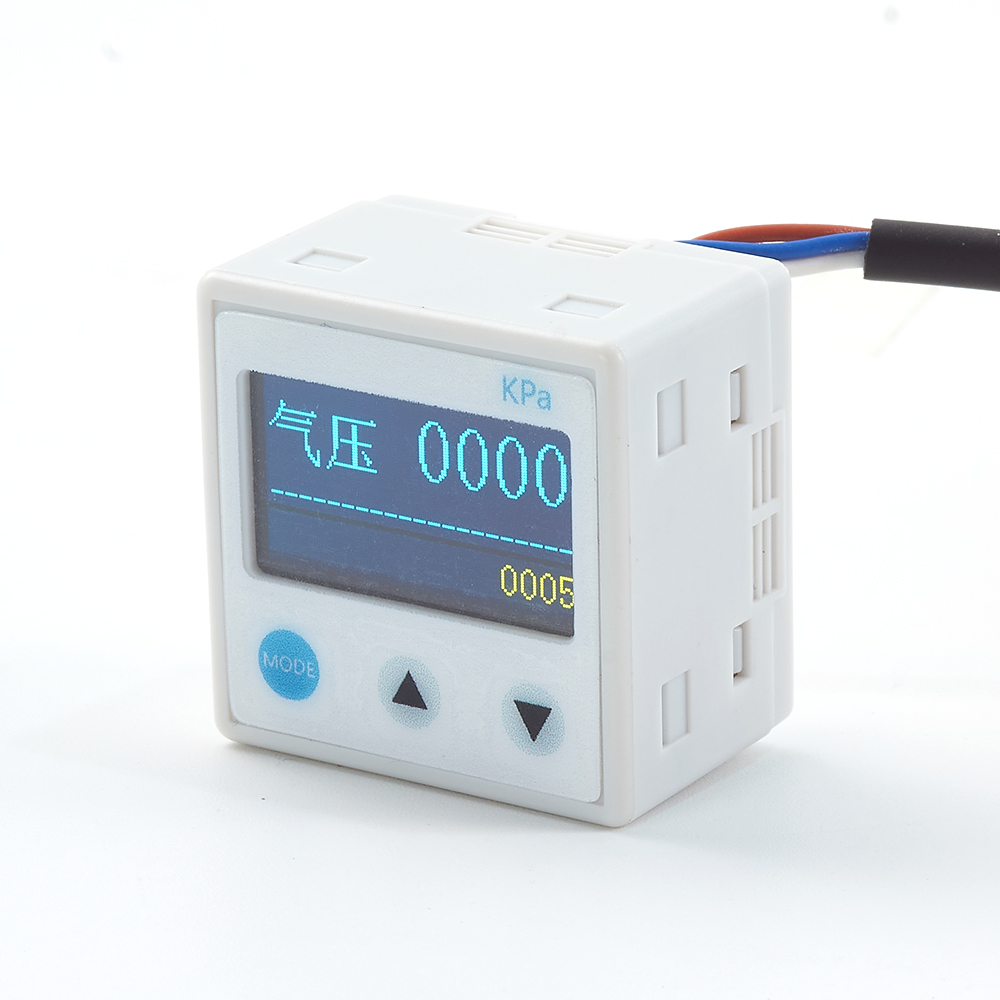

MOTEE Negative Pressure Sensor Low Pressure Switch Sensor Positive and Negative Pressure Vacuum Gauge DP-101 Analog Quantity
Features
Clear and concise settings
DP-100 settings are displayed numerically. Settings can be easily understood through numerical values, facilitating maintenance via telephone, etc.
Description
Description
Product Model | NPN | PNP | ||
Type | Low pressure | High pressure | ||
Model | MS-DP101 | MS-DP102 | ||
Compliance standards and certifications | EMC directive, RoHS directive, UL/c-UL certification | |||
Pressure Type | Gauge pressure | |||
Rated pressure range | -100.0~+100.0KPa | -0.100~+1.000 MPa | ||
Set pressure range | -101.0~+101.0 KPa | -0.101~+1.010 MPa | ||
Pressure resistance | 500 KPa | 1.5 MPa | ||
Applicable fluid | Non-corrosive gas | |||
Supply voltage | 12~24VDC±10% | Pulsation P-P 10% or less | ||
Power consumption | Normal: 720mW or less (current consumption is 30mA or less when the power supply voltage is 24V) ECO mode: 480mW or less when STD (current consumption is 20mA or less when the power supply voltage is 24V), 360mW or less when FULL (current consumption is 15mA or less when the power supply voltage is 24V) | |||
Hysteresis | Minimum 1digit (variable) | |||
Protective structure | IP40(IEC) | |||
Material | Case: PBT, LCD display: Acrylic, Pressure port: SUS303, Mounting thread: Brass (nickel-plated), Switch: Silicon rubber | |||
Vibration resistance | Frequency 10~500Hz double amplitude 3mm or maximum speed 196m/s2X, Y and Z directions 2 hours each | |||
