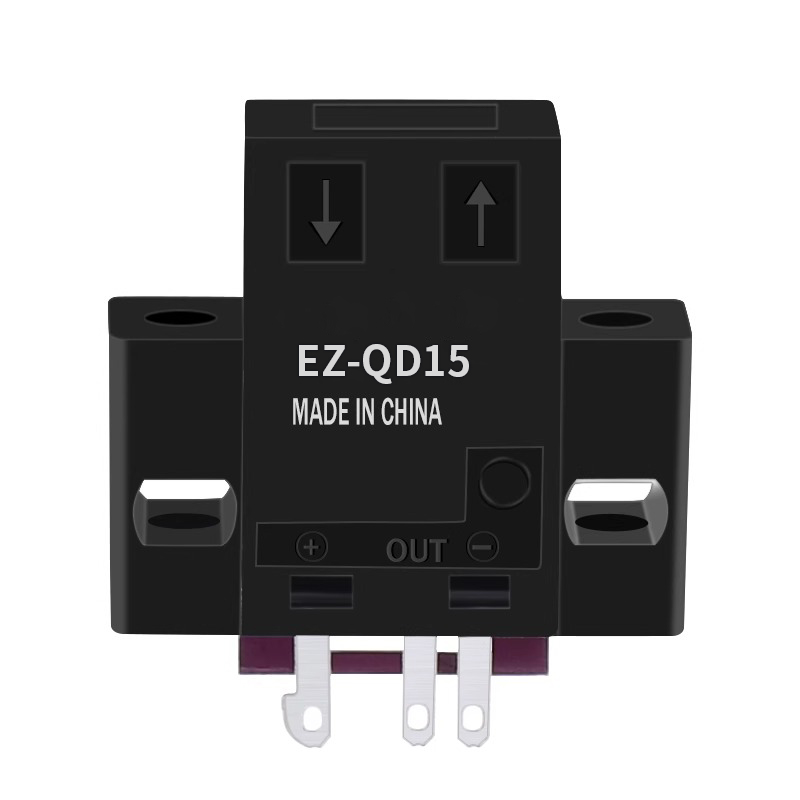

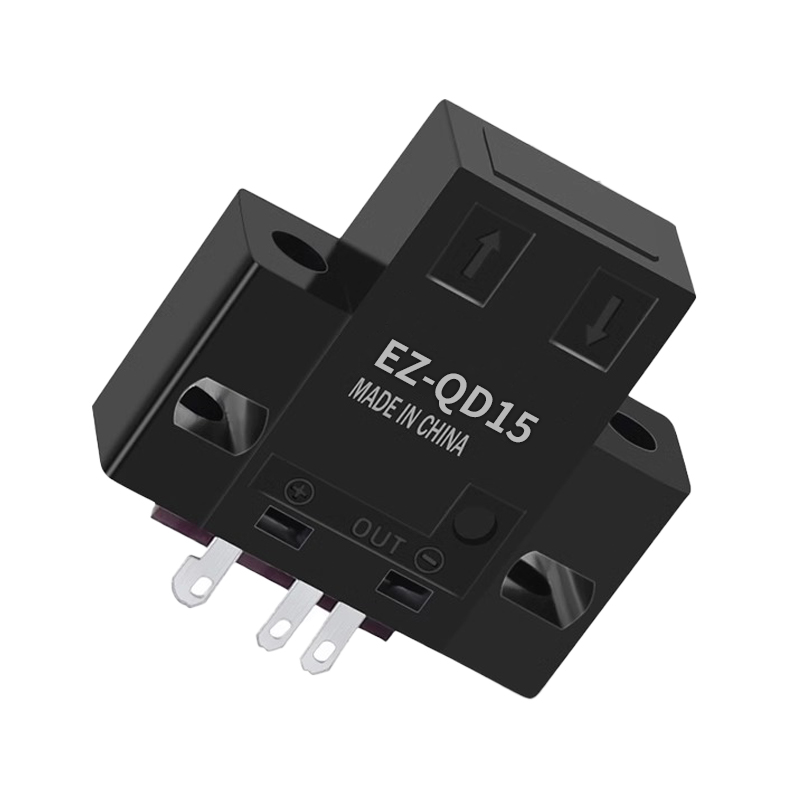

MOTEE Micro Diffuse Reflection Photoelectric Switch Diffuse Reflection Type 940nm Infrared Laser Optical Sensor
Ultra-compact and space-saving
Ultra-small size, suitable for installation in various narrow spaces.

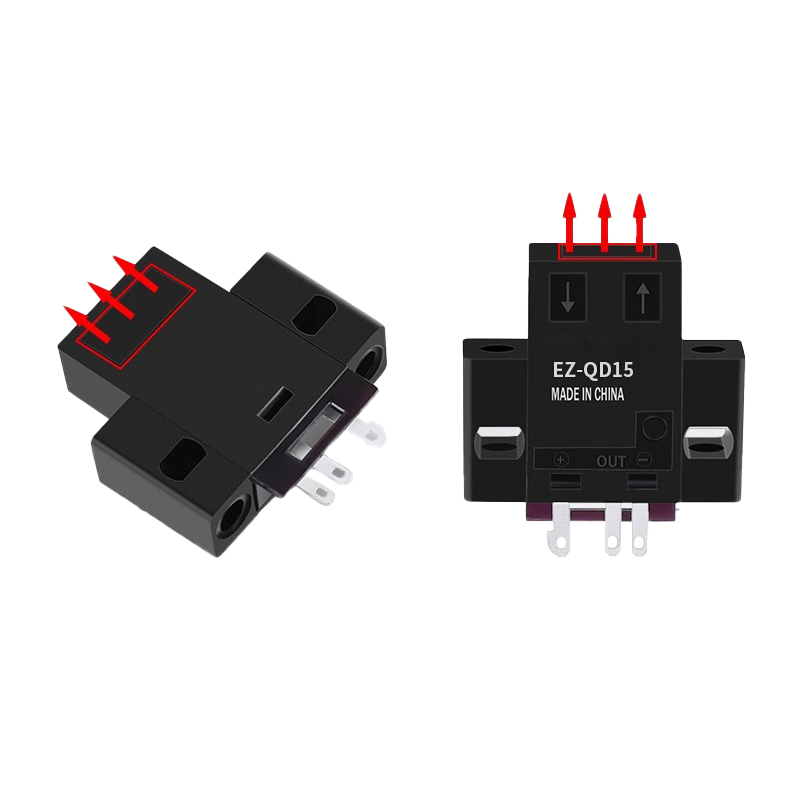

Equipped with two detection methods
Two detection methods are available, allowing you to choose the model that best suits your installation requirements.
Description
Description
Product Model | EZ-WD15 | EZ-QD15 | ||
NPN Output | Upper detection | Front detection | ||
Detection distance | Black is larger than 5mm White is larger than 10mm | |||
Detection method | Diffuse reflection | |||
Detection light source | 940nm infrared light | |||
Detecting objects | Opaque objects with a diameter of more than 4mm | |||
Control output | Light ON | |||
Response frequency | Less than 1ms | |||
Supply voltage | DC12-24 pulsation (p-p) less than 10% (DC10-30) | |||
Current consumption | ≤25mA | |||
Circuit protection | Surge protection, short circuit protection, reverse polarity protection | |||
Display Light | Action indicator light (red) | |||
Ambient temperature | Operation: -25°C~+70°C (no ice, no frost) Storage: -40°C~+85°C (no ice, no frost) | |||
Impact of ambient illumination | Daylight: 10000LX or less Incandescent lamp: 3000LX or less | |||
Protective structure | IP65 | |||
Link method | Lead wire type (standard 2m) | |||
Shell material | PC | |||
