MOTEE Manufacturer’s Precision for Small Object Identification Laser Photoelectric Optical Sensors
The built-in amplifier type achieves industry-leading detection distance.
Through-beam type (red light source, 8m detection distance) products are equipped with filters to prevent mutual interference.
Various reflective types (2 units) are equipped with anti-interference functions.
A long-range through-beam type with a detection distance of 30m (2ms response time) is also available.
Description
Product Introduction
The Background Suppression Photoelectric Sensor is a specialized optical sensor designed to provide precise detection of objects by eliminating interference from background objects. Unlike traditional photoelectric sensors that might detect all objects in their field of view, this sensor uses advanced technology to focus on detecting the target object while ignoring objects in the background. This feature makes it ideal for applications where background clutter or multiple objects are present within the sensor’s range, ensuring accurate detection every time.
This sensor is particularly useful in industries where precise object identification is required despite the presence of multiple potential distractions or varying surface textures. By suppressing background interference, it ensures that only the intended object triggers the sensor, providing more reliable and stable performance.
Detection method | Through-beam type | Through-beam type | Diffuse reflection | ||

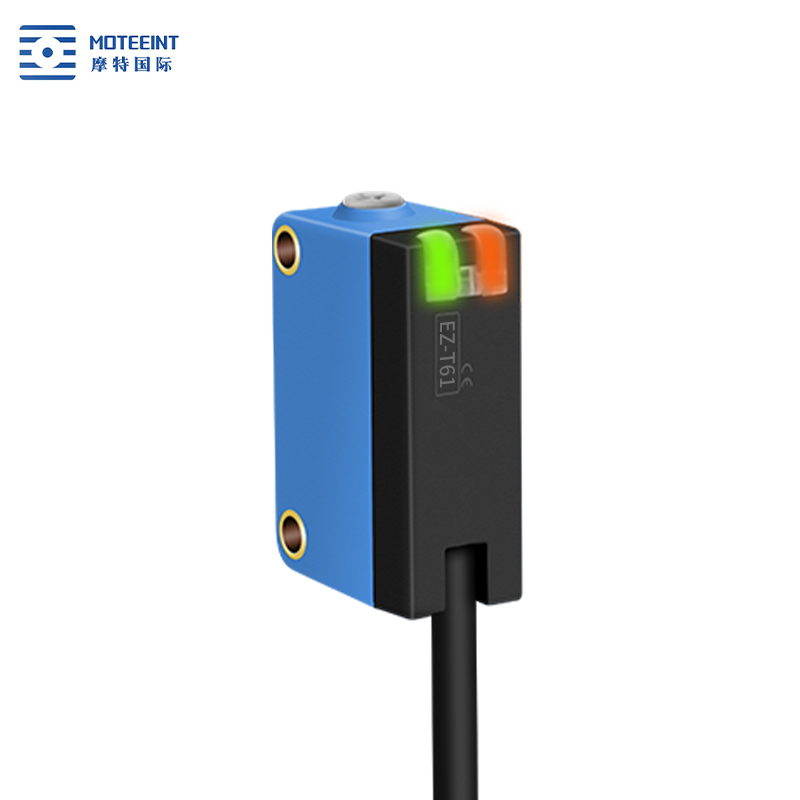

NPN Output | EZ-T61 | EZ-R61 | EZ-R61S | EZ-D61 | EZ-D62 |
Detecting objects | Opaque objects with a diameter of ≥12mm | Opaque objects with a diameter of ≥5mm | 100X100 white drawing paper | ||
Light source (wavelength) | 640nm red light | ||||
Supply voltage | DC12-24V ripple (p-p) less than 10% (DC10-30) | ||||
Current consumption | ≤25mA | ≤45mA | |||
Control output | Load power supply current 100mA or less (residual voltage 1V or less) | ||||
Circuit protection | Surge protection, short circuit protection, reverse polarity protection | ||||
Response time | Action/response time: less than 1.0ms | ||||
Display Light | Action indicator light (red) | ||||
Ambient temperature | Operation: -25°C~+55°C (no ice, no frost) Storage: -40°C~+70°C (no ice, no frost) | ||||
Impact of ambient illumination | Daylight: 10000LX or less, Incandescent lamp: 3000Lx or less | ||||
Effect of voltage | When the rated power supply voltage fluctuates within ±15%, the detection distance changes within ±1% | ||||
Insulation resistance | 20MΩ or more (DC500 megohmmeter) between charging part and shell | ||||
Dielectric strength | AC1000V or above, 50/60Hz1min, between charging part and shell | ||||
Vibration (durability) | 10~50Hz, 1.5mm double amplitude, up to 1h in X, Y, Z directions | ||||
Impact (durability) | 500m/s² double amplitude, 3 times in each of the X, Y, and Z directions | ||||
Protective structure | IP65 | ||||
Shell material | pc | ||||
A: 1 pair order is also accepted.
A: The larger the order quantity, the lower the price, you can contact us to confirm a certain discount for different quantity orders.
