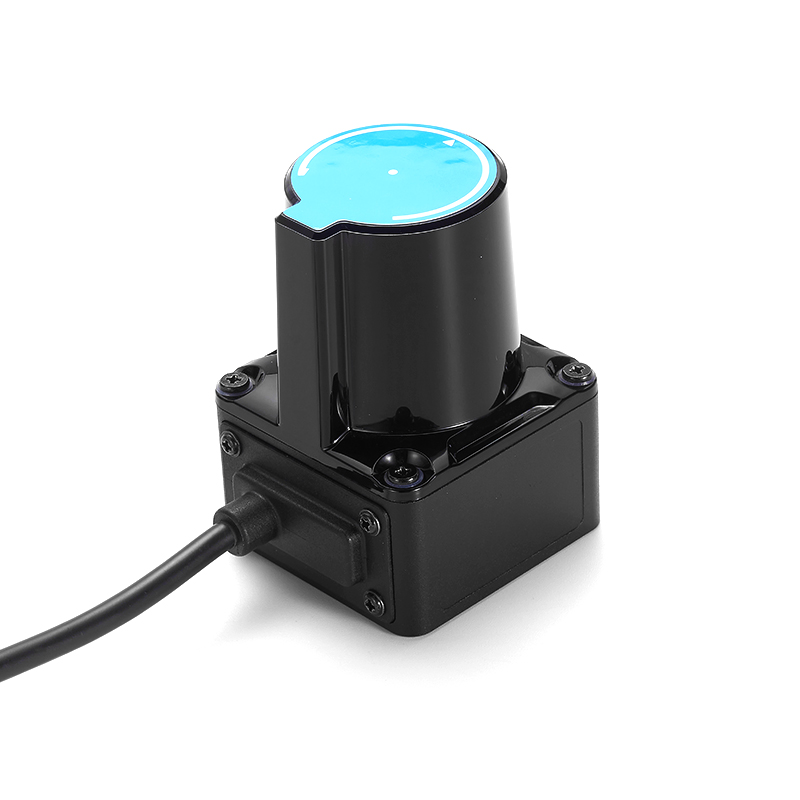

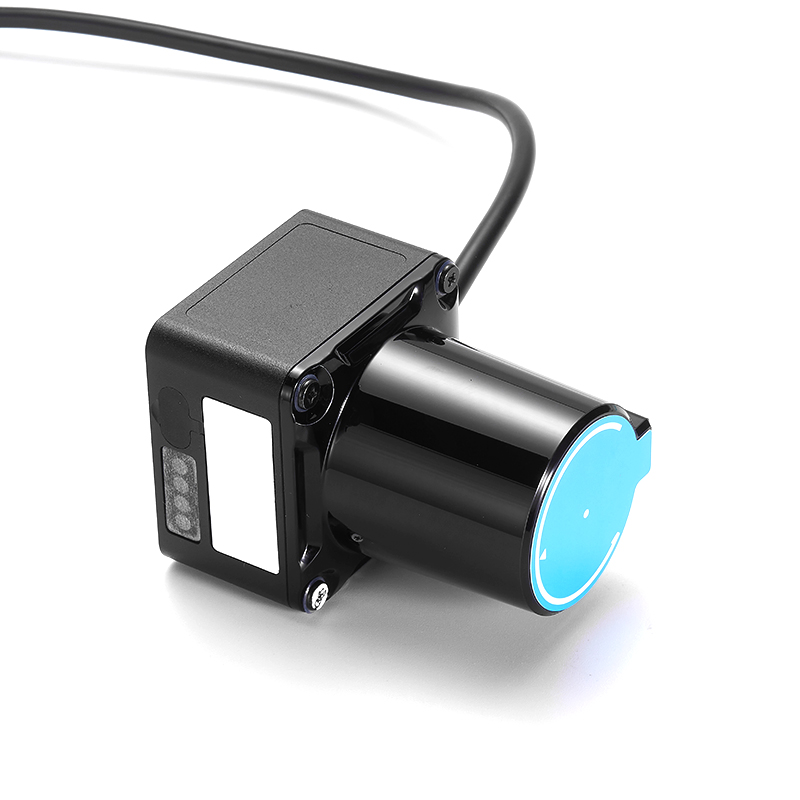

MOTEE LiDAR Scanner Tof Outdoor Obstacle Avoidance Ranging Sensor Path Planning Large Screen Interactive 20m
Features
The MT-LR10 series is the latest industrial obstacle avoidance LiDAR. This product has a 270° scanning angle, can be divided into 64 independent channels, and supports serial port (Type-C interface) communication.
Excellent anti-light interference capability
Maximum anti-light interference capability reaches 80,000 Lux
±2cm ranging accuracy
Advanced optical path design enables high-precision ranging
Compact and flexible size
Dimensions are 50mm*50mm*72mm
IP65 protection rating
Adaptable to various complex environments
Description
Product Name | Laser obstacle avoidance radar | |||
Model | MT-LR10N | MT-LR10P | ||
Signal | NPN | PNP | ||
Detection range | 270° | |||
Scan frequency | 25Hz | |||
Distance measurement accuracy | ±2cm | |||
Startup time | ＜10s | |||
Detection output delay | Can be set within the range of 0~2s | |||
Detection size | Can be set within the range of 0~5° | |||
Operating temperature | -10℃~50℃ | |||
Ambient humidity | Below 80%, no condensation | |||
Protection level | IP65 | |||
Data sampling rate | 18KHz/54KHz | |||
Angular resolution | 0.5° | |||
Response time | 40ms | |||
Communication interface | USB-TYPE C (serial port) | |||
Detection hold delay | Can be set within the range of 0~2s | |||
Switch input | 6个（NPN） | |||
Storage temperature | -20℃~70℃ | |||
Ambient light resistance | 80000Lux | |||
Power supply | DC 9V~28V | |||
Communication interface | USB-TYPE C (serial port) | |||
Detection hold delay | Can be set within the range of 0~2s | |||
Switch input | 6个（NPN） | |||
Storage temperature | -20℃~70℃ | |||
Device size | 50mm(L)*50mm(W)*72mm(H) | |||
Device power consumption | Rated power:<1W (no load) Starting power <3W (no load) | |||
Switching output | 4 (3 zone signals, 1 fault signal) | |||
Indicator Lights | 4 (3 zone signals, 1 fault signal) | |||
Number of channels | 64 (each channel contains 3 detection areas) | |||
