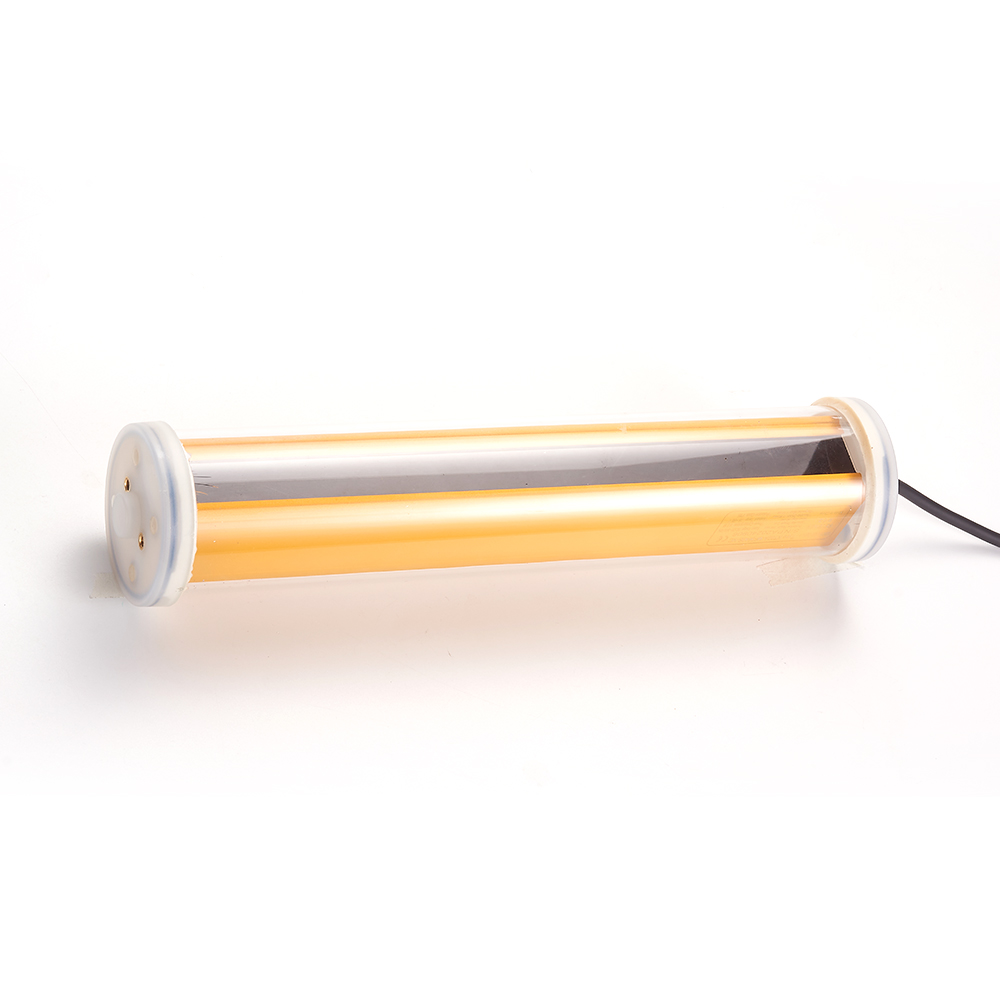

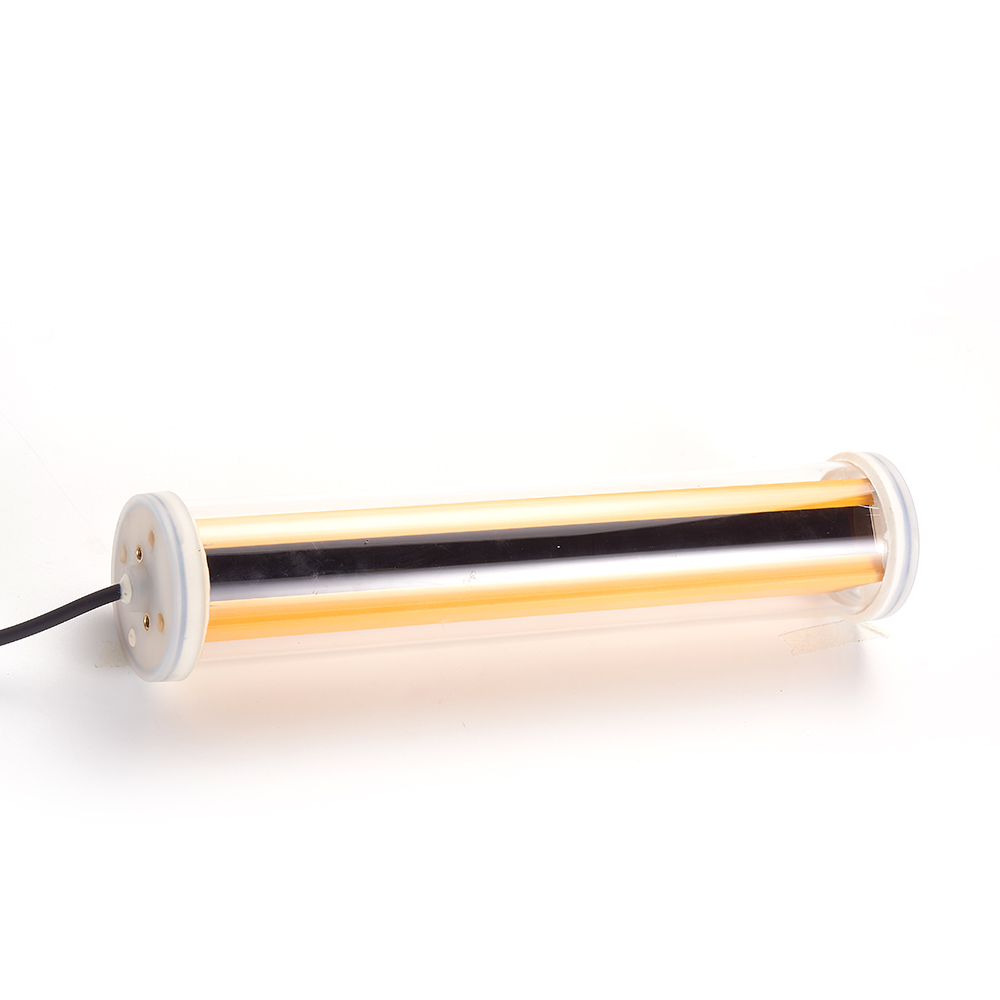

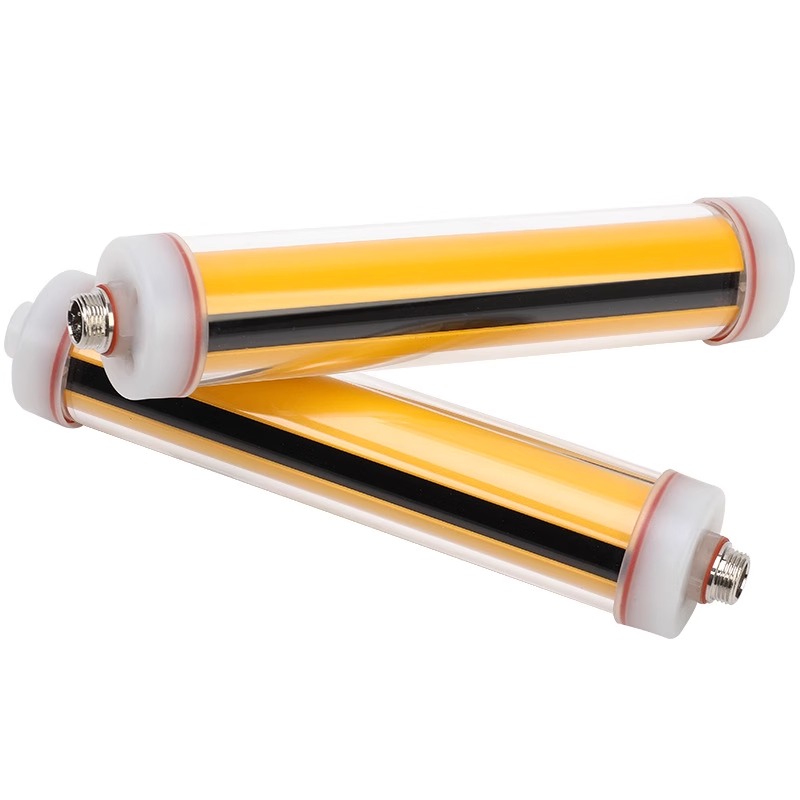

MOTEE Industrial Grade Waterproof, Dustproof and Oilproof Safety Grating Light Curtain Sensor
Description
Description
Product Name | Waterproof safety grating | |||
Features | Plastic housing | |||
Cross-section size | 13X30 | |||
Optical axis spacing | 20mm | |||
Number of optical axes | 4、6、8、10…256 | |||
Protection height | Optical axis spacing X (optical axis number – 1) | |||
Protection width | 0.2-3m | |||
Supply voltage | 24V±10% | |||
Power | 3~8W | |||
Response time | ≤10ms | |||
Insulation resistance | ≥100MΩ | |||
Signal output | NPN、PNP | |||
Operating temperature | -10℃~+55℃ | |||
Storage temperature | -40℃~+70℃ | |||
Operating humidity | 35%RH-85%RH | |||
Anti-light interference | 10000Lux | |||
Light curtain form | Default optical synchronization, optional line synchronization | |||
Protection level | IP65 | |||
Product Certification | CE / FCC / EMC/ REACH / SIL3/TYPE 4 | |||
Circuit Protection | Reverse polarity protection/output short circuit protection | |||
Standard wiring | Direct outlet 2 meters | |||
