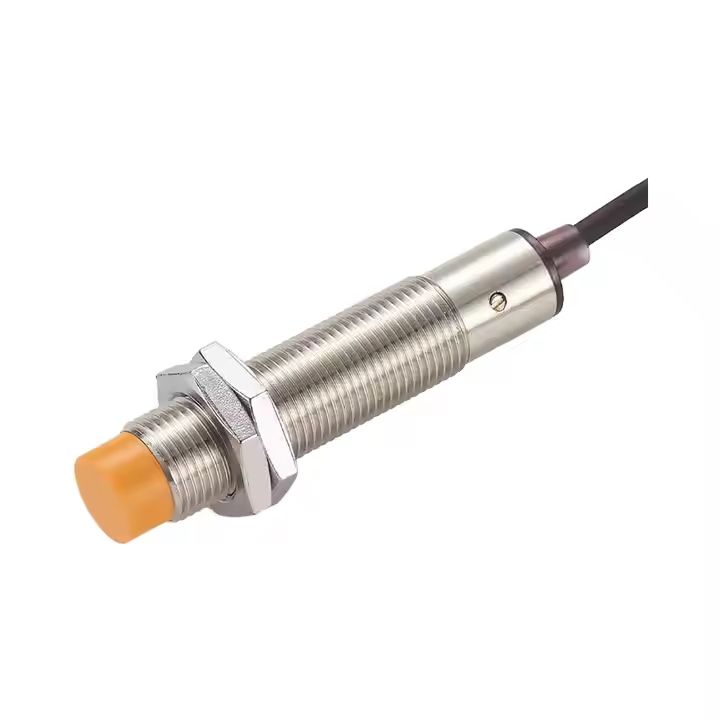

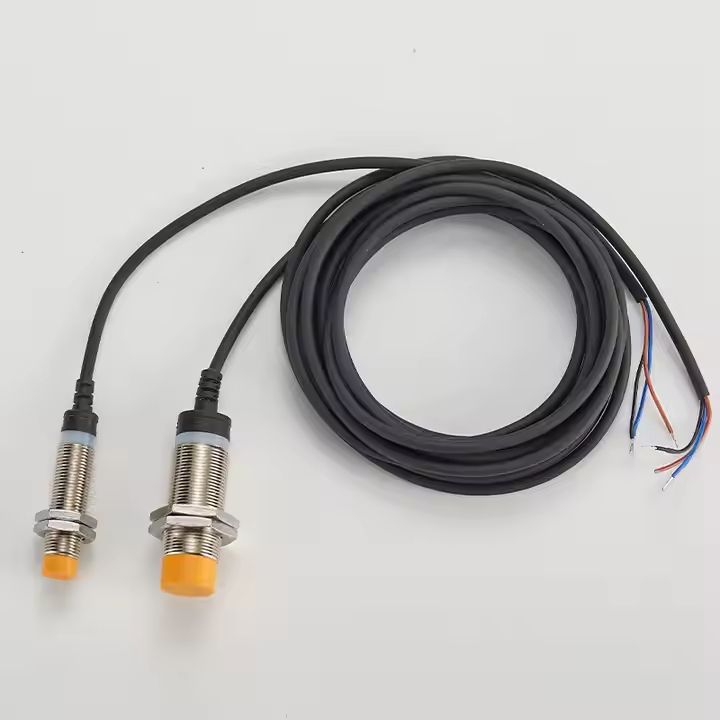

MOTEE Inductive Proximity Sensor NPN NC DC 12-30V EB-HE Cylindrical Detection High Range Closed Loop Detection Range

Dimensions: M8, M12, M18, etc.
Detection polarity: North pole, South pole, unipolar or bipolar (default)

Description

Model	EB-HEM12N	EB-HEM12NC	EB-HEM12P	EB-HEM12PC
Output mode	NPN NO	NPN NC	PNP NO	PNP NC
Detection distance	10mm (the detection distance mainly depends on the magnetic force of magnetic steel)
Working frequency	3000HZ
Load current	<200mA
Loop protection	Polarity protection output short circuit protection (more than 200mA)
LED	have
Temperature drift	<±10%
Shell material	Nickel plating on brass
Cable length	2m standard
Type	embed
Standard target	alnico
Voltage drop	Less than 1.5V
Working temperature	-20℃~70℃
Operating voltage	-20℃~70℃
The protection grades	12~30V DC
Consumption current	Less than 15mA
Detection surface material	Nickel plating on brass
