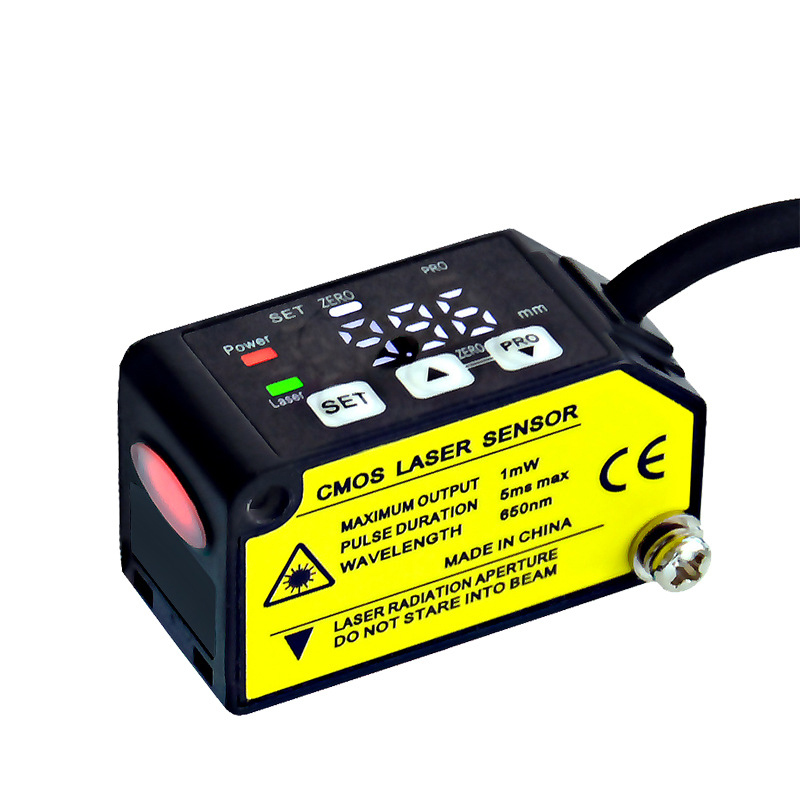

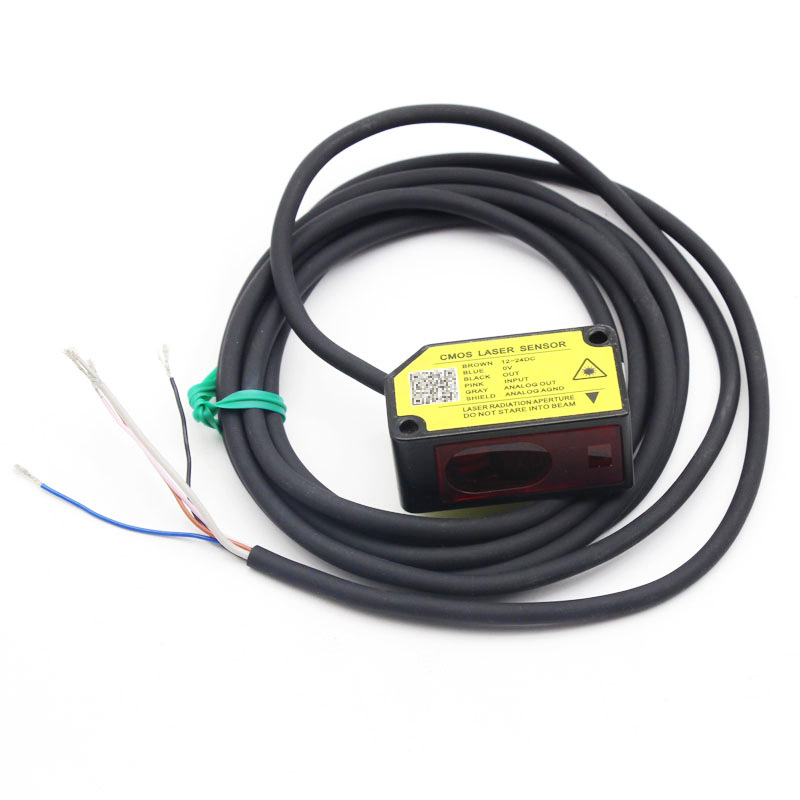

MOTEE High-precision Laser Displacement Distance Sensor RS458 Analog 0-10V 4-20mA 0-5V Output
Stable detection repeatability of 0.01mm
High measurement accuracy of ±0.1%
Ultra-fast response time of up to 1.5ms
Multiple output modes: pure I/O type/analog type/RS-485
Description
Description
Product Category | 30mm type | 50mm type | 100mm type | 200mm type |
Product Model | MD-LS030 | MD-LS050 | MD-LS100 | MD-LS200 |
Measuring center distance | 30mm | 50mm | 100mm | 200mm |
Measuring range | ±5mm | ±15mm | ±35mm | ±80mm |
Repeatability | 10um | 30um | 70um | 200um |
Measurement accuracy | ±0.1%F.S. | ±0.2%F.S. | ||
Response frequency | 1.5ms/5ms/15ms switchable | |||
Light source | Red laser (655nm) | |||
Spot diameter | 100um | 100um | 100um | 100um |
Supply voltage | 12V~24V DC ±10%/Pulsation P-P 10% or less | |||
Light source power | <1W | |||
Output | Transistor output: NPN/PNP can be set Analog output: 0V~5V, 0V~10V, 4mA20mA Communication output: RS-485 | |||
Output Action | Switchable: ON when light is on/ON when no light is on | |||
Short circuit protection | Equipment | |||
Protective structure | IP67 | |||
Operating temperature | -10°C~+50°C (no condensation or icing) | |||
Ambient temperature | -20°C~+60℃ | |||
Ambient humidity | 35%RH~85%RH | |||
Ambient illumination | Incandescent lamp: illumination of the light receiving surface is less than 3000 lux | |||
Withstand voltage | 1000V/AC/50Hz/60Hz 60s | |||
Insulation resistance | ≥50MΩ(500V DC) | |||
Vibration resistance | Frequency 10~50Hz · Double amplitude 15mm XYZ direction 2 hours (no power supply) | |||
Impact resistance | Acceleration 500m/s2 (about 50G) 3 times in each direction of XYZ (when power is not supplied) | |||
Material | Housing: Die-cast zinc Window: Glass | |||
