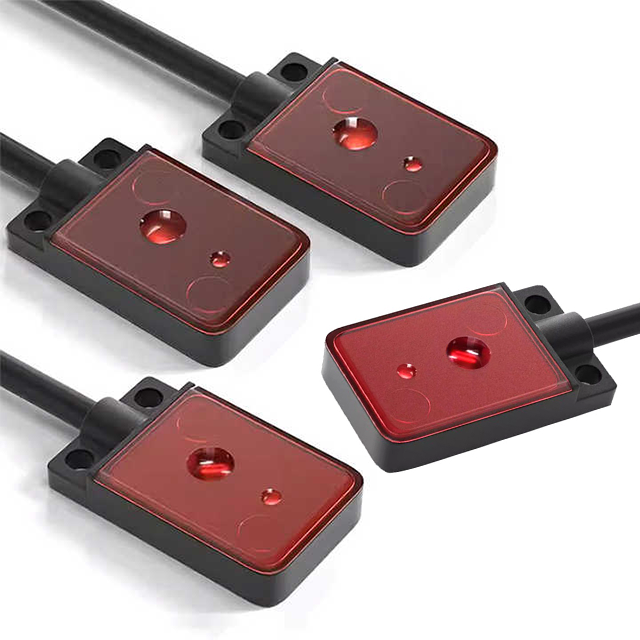

MOTEE Flat Ultra-thin Photoelectric Switch Diffuse Reflection Micro Induction Switch Infrared Sensor
Features
Rugged Construction
Constructed with a robust PBT construction, durable and with a long service life.
Ultra-Compact Size
Small size, small blind zone, can detect even close to the detection window.
Easy Installation
Easy installation using standard M2 screws.
Description
Description
Product Name | Thin photoelectric sensor | |||
NPN | EZ-FT11 | EZ-FD11 | ||
PNP | EZ-FT11P | EZ-FD11P | ||
Type | Through-beam type | Reflective | ||
Detection distance | 0.6M | 2~30mm | ||
Spot diameter | 3~8mm (the farther away, the larger) | About 5mm (at 30mm) | ||
Light source | Point light source: Red LED (650nm) | |||
Reaction time | Maximum 1ms | |||
Indicator Lights | Output: Red; Stable operation: Green; Transmitter power: Green | |||
Supply voltage | 10~30VDC including ripple current (P-P) 10% | |||
Current consumption | 15mA | 20mA | ||
Control output | NPN output type: NPN open collector 30VDC or less, 50mA or less; Residual voltage: 10mA or less, 1.5V or less at 10~30mA, 2.0V or less at 30~50mA | |||
