Product Model

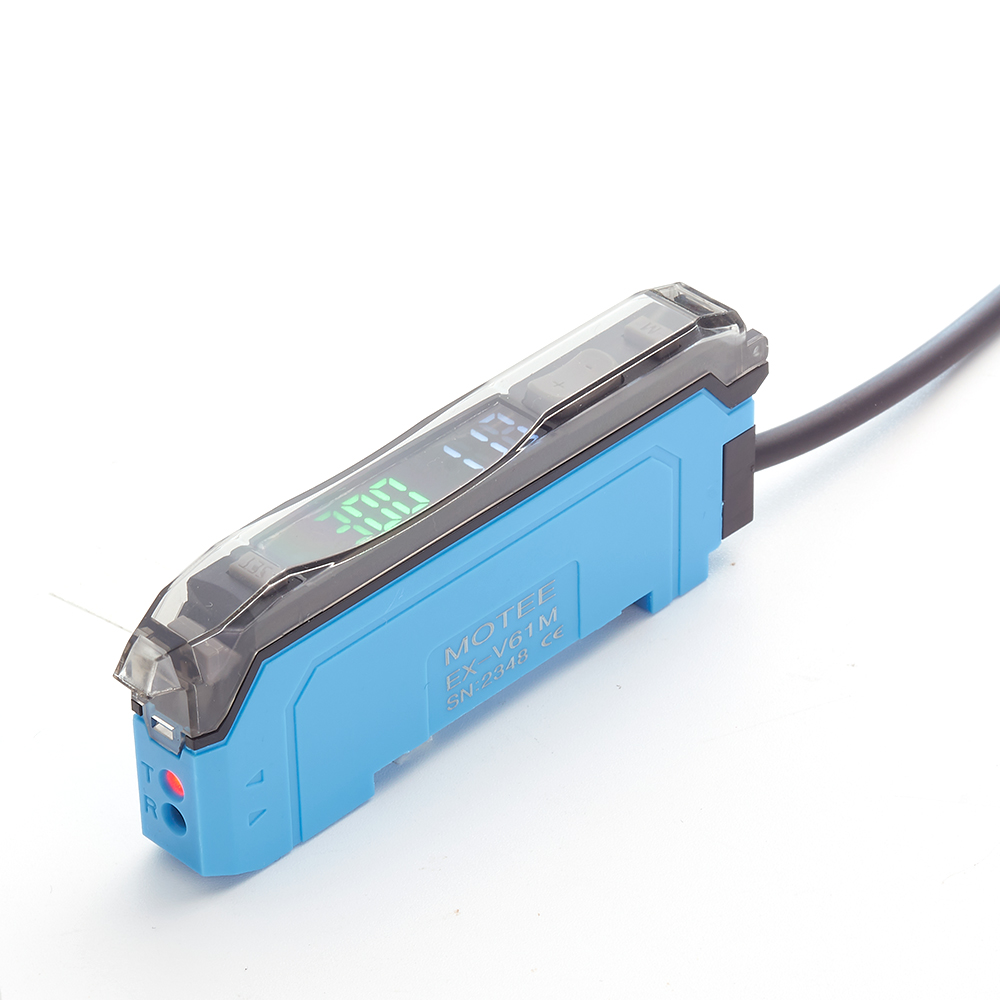

EX-V61M

EX-V61MV

NPN output + analog current

NPN output + analog voltage

Type

1 output port, wire lead-out

Control output

1 output port (with analog output)

Light source

Red, 4-element LED body

Reaction time

P-0 25μs P-1:100μs，P-2:400μs，P-3:800μs，P-4:3.2ms

Output Selection

LIGHT-ON/DARK-ON

Display Indicator

peration indicator: white LED, dual digital monitor: dual 7-digit display, threshold value (4-digit green LED indicator) and current value (4-digit white LED indicator) light up together. Current value range: 0-9999

Detection method

Light intensity (area detection, automatic sensitive tracking available)

Delay function

Off delay timer/on delay timer/single timer/on delay single timer, selectable. Duration time can be selected from 1ms to 9999ms.

Control output

NPN/PNP open collector 24V, maximum 100mA (only for main components) maximum 20mA (when expansion components are connected, residual voltage: 1V. The sensor with M is analog output, analog voltage from 0-5V, detection accuracy is 1/1000

Power supply

Between 12 and 24 VDC ±10%, floating ratio (P-P): maximum 10% level 2

Working environment brightness

Incandescent lamp: Maximum: 20,000 lux, Sunlight: Maximum: 30,000 lux

Power

Standard mode: Maximum 300mW

Standard mode: Maximum 300mW

Consumption

Maximum voltage 24V

Vibration resistance

10 to 55Hz, double amplitude: 1.5mm, 2 hours for X, Y, and Z axes respectively

Ambient temperature

-10 to +55°C, no freezing
