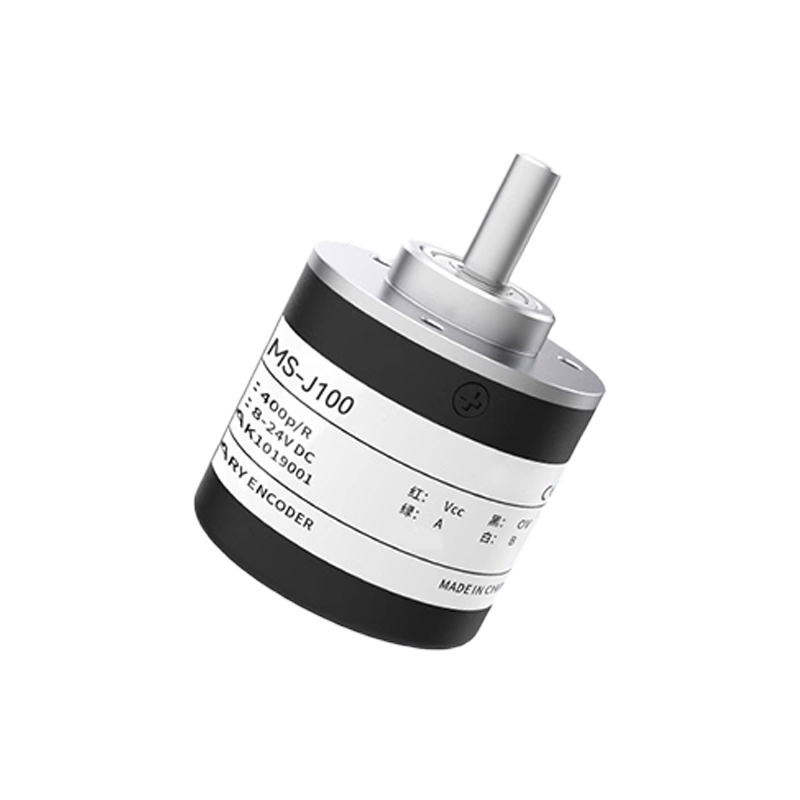

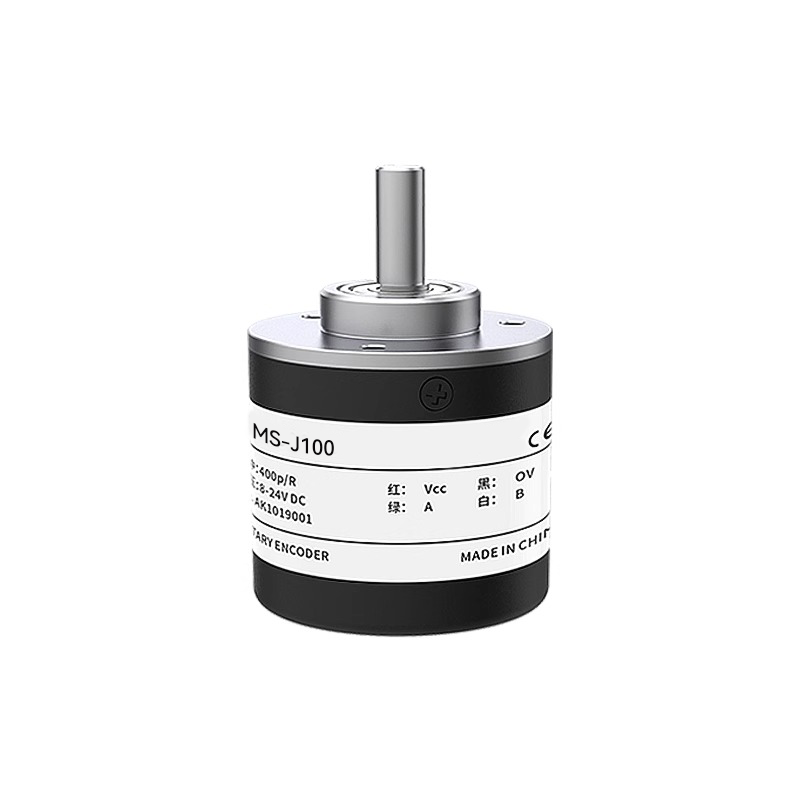

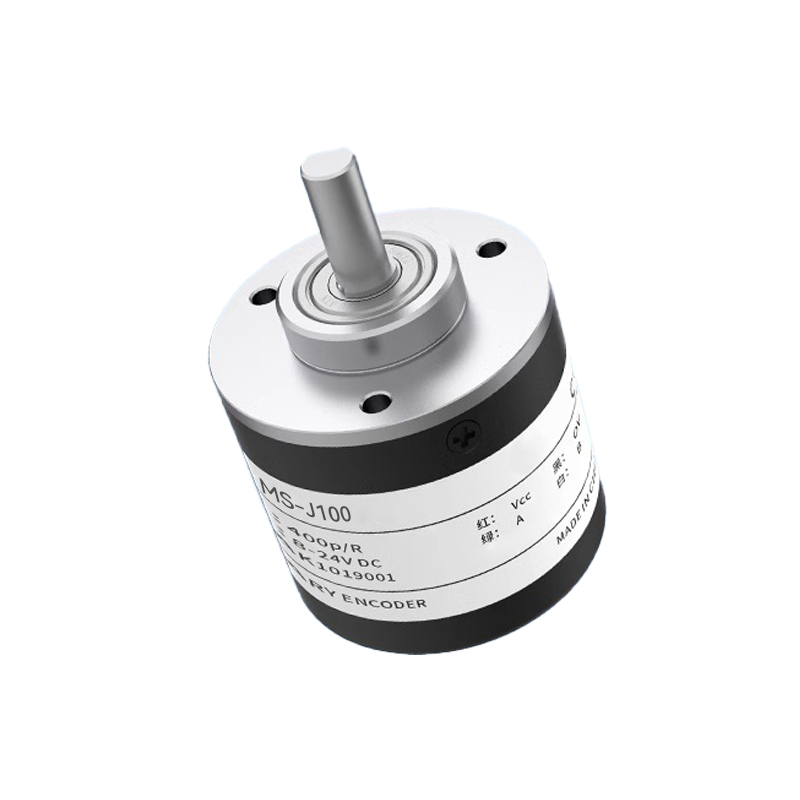

MOTEE Encoder Incremental Photoelectric Rotary Encoder with Stable Performance

  • Current consumption:≤100mA
  • Response frequency:0~100kHz
  • Operating temperature:-20℃~+70℃
  • Storage temperature:-20°℃~+80℃
  • Output voltage VH:≥Vcc-2.5V
描述

Product Features

  • Current consumption:≤100mA
  • Response frequency:0~100kHz
  • Operating temperature:-20℃~+70℃
  • Storage temperature:-20°℃~+80℃
  • Output voltage VH:≥Vcc-2.5V

Products Description

Electrical parameters Mechanical parameters
Pulse number Max. 500P/R Starting torque 2*10 ’N.m(+25C)
Current consumption ≤100mA Allowable shaft load Axial 9.8N, Radial 9.8N
Response frequency 0~100kHz Moment of Inertia 4x10°Kgm²
Operating temperature -20℃~+70℃ Maximum speed 5000r/min
Storage temperature -20°℃~+80℃ Protection level IP54
Output A,B,Z Vibration resistance 50m/s (10~200Hz x, y, z directions for 2 hours each)
Output voltage VH ≥Vcc-2.5V Shock resistance 980m/S (2 times in x, y, z directions, 6ms each)
Output voltage VL ≤0.5V Material Shaft:Stainless steel
1.0V End face: Aluminum alloy
Supply voltage DC5V~12V Shell: Aluminum alloy powder coating
DC12V~24V weight 50g
Rise/Fall Time 5V driver ≤0.1us
24V
