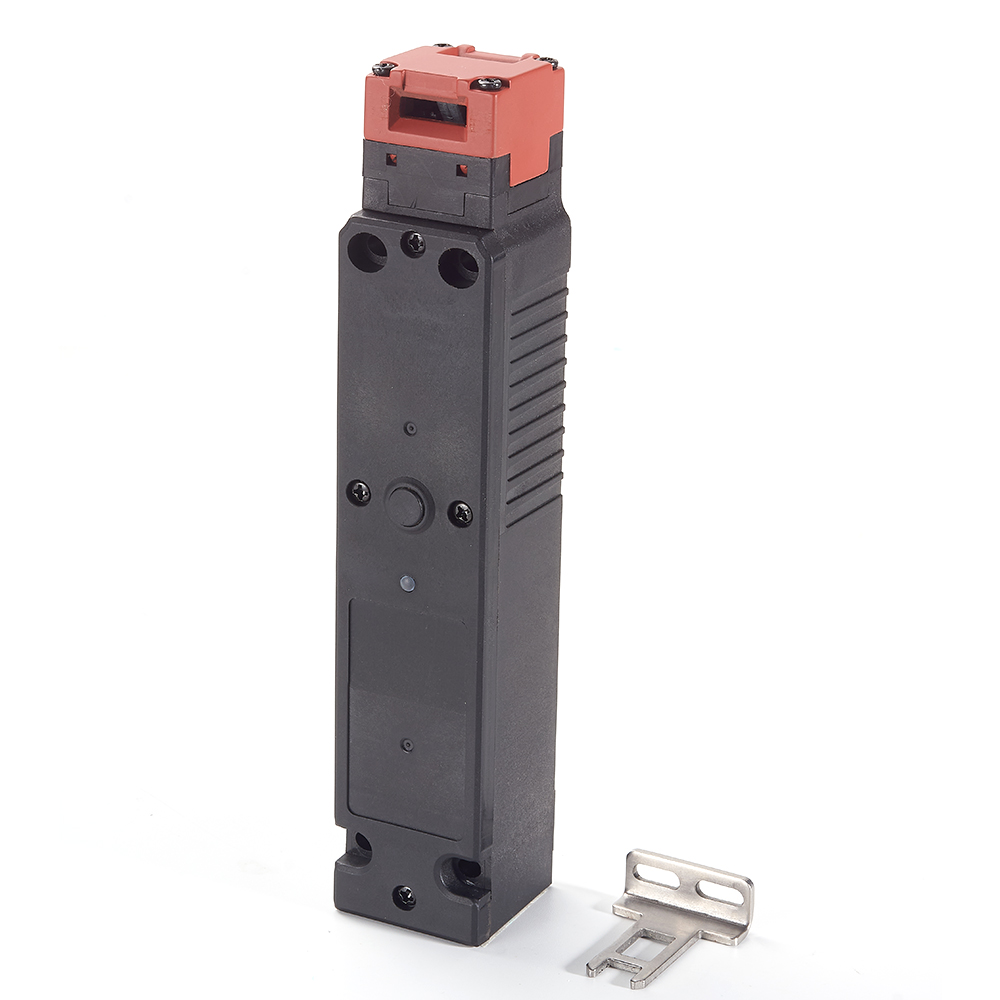

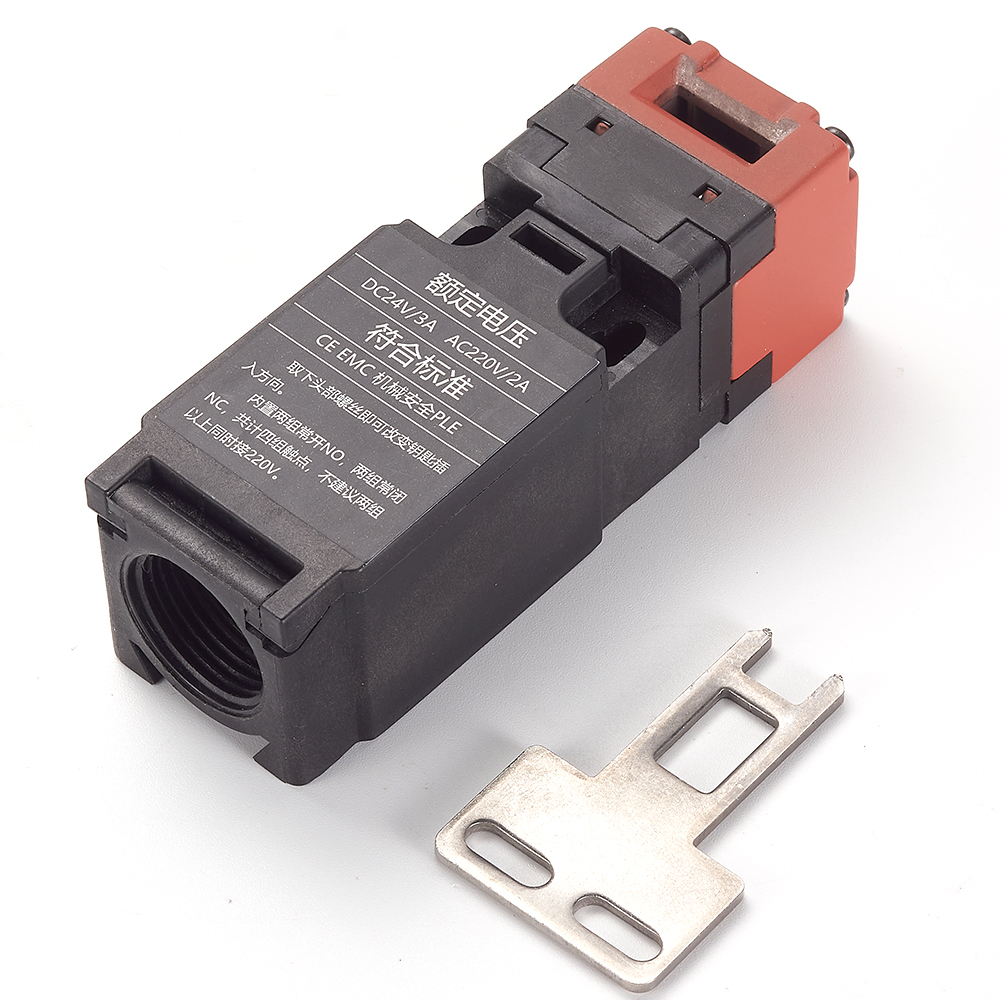

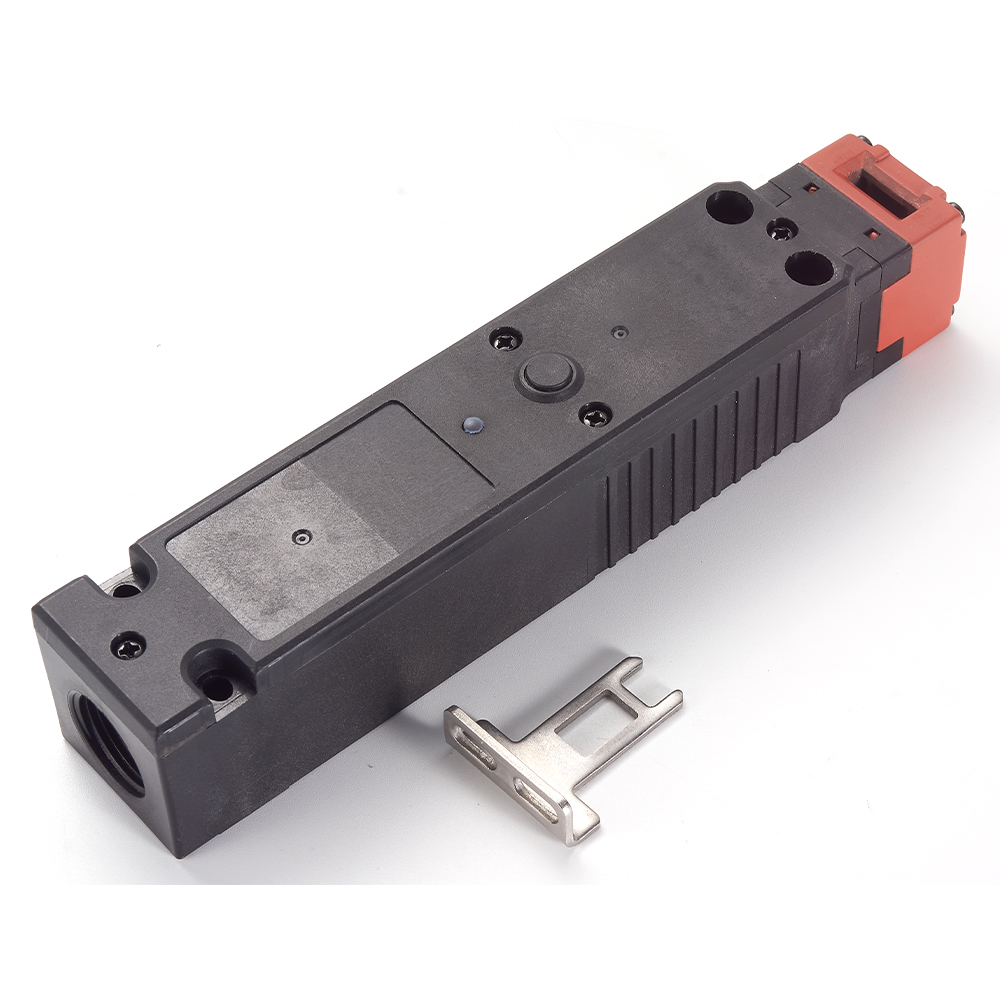

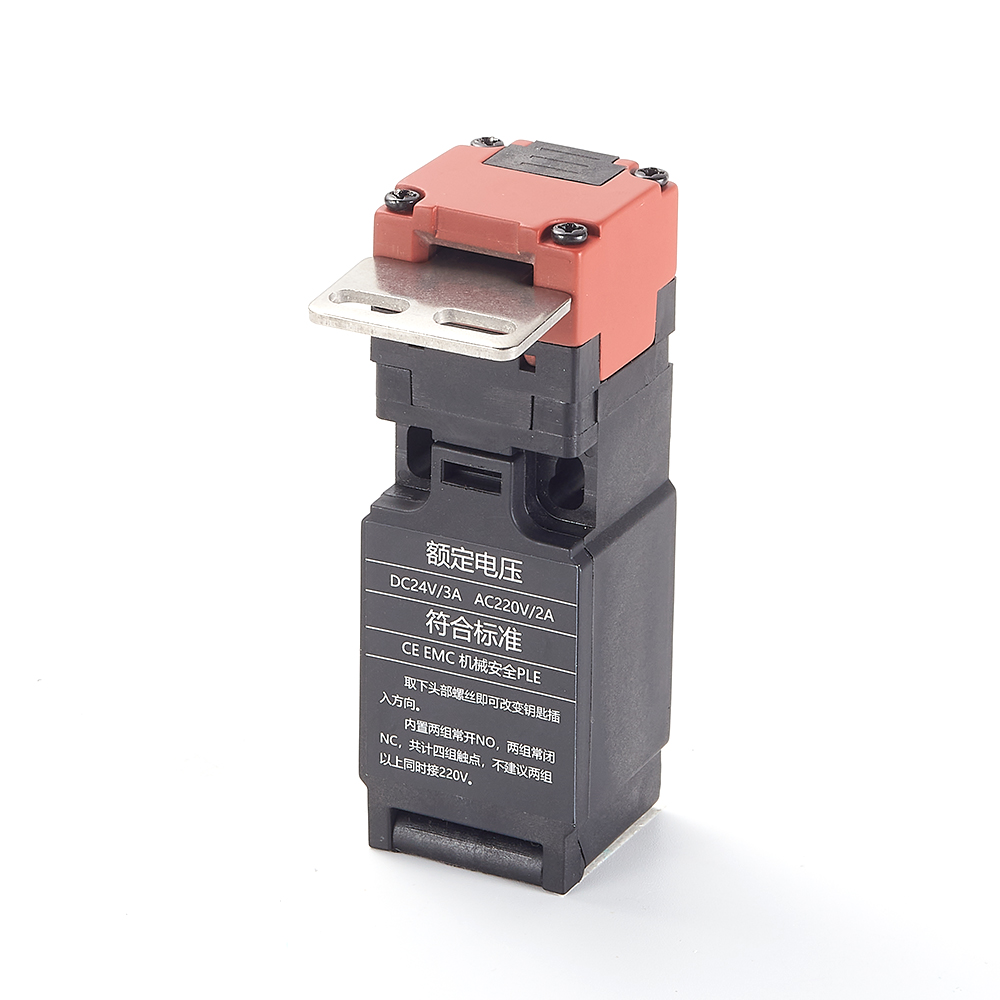

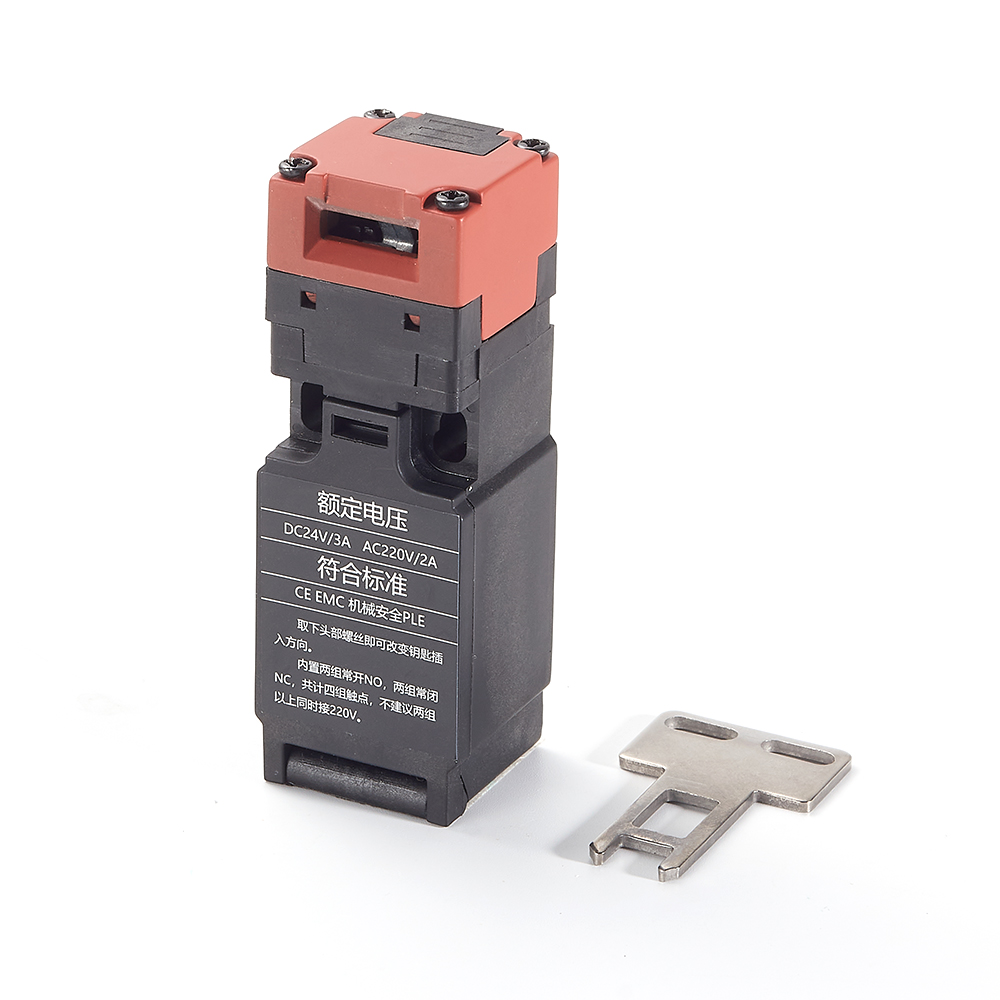

MOTEE Electromagnetic Lock Limit Small Safety Door Switch with Latch Key Industrial Safety Door Lock
Features:
The MT-GS51 series safety door lock is based on magnetic encoding sensing technology and features a monitored stainless steel latch structure. It is used in protective door systems involving personnel or machine safety. Utilizing safety dual-channel output technology, it can achieve safety levels of SIL3 or PLe and can be used in conjunction with safety relays.
Description
Description
Standard | ISO 13849-1 IEC/EN60947-5-3 | |||
Security Classification | Category 4 switch/SIL3 dual channel interlock according to ISO 13849-1 suitable for PLe/PLd | |||
Certification | CE SIL3 | |||
Protect | ||||
Safety Short circuit protection Over temperature protection Stop and restart Current limit Reverse polarity protection Overload protection Transient noise protection Overvoltage protection Failure pulse protection | ||||
Output | ||||
Safety output | 2 redundant PNP and 2 NPN normally closed signal outputs | |||
Enter | 1 0V output (door open/close/door lock/fault indication, etc.) | |||
Technical Parameters | ||||
Lock bolt insertion deviation | Max.:±2mm | |||
Locking holding force Fmax (ISO14119) | 1300N or more | |||
Lock holding force Fzh (ISO14119) | 1300N or more | |||
Minimum radius of revolving door | ≥220mm | |||
Operating voltage | DC 24V±15% | |||
Rated Power | 4.6W (no load) ※ | |||
Output Current | Max.:200mA | |||
Output forward voltage drop | <2.5V@200mA | |||
Leakage Current | <100uA | |||
Operating frequency | 0.5Hz | |||
Response time | 100ms (independent operation) | |||
Risk Time | 100ms | |||
Startup time | 3.5s | |||
Protection level | lp65 | |||
Operating temperature | 0…+55℃ | |||
Relative humidity | 5…95% | |||
Material | Nylon/zinc alloy/stainless steel | |||
