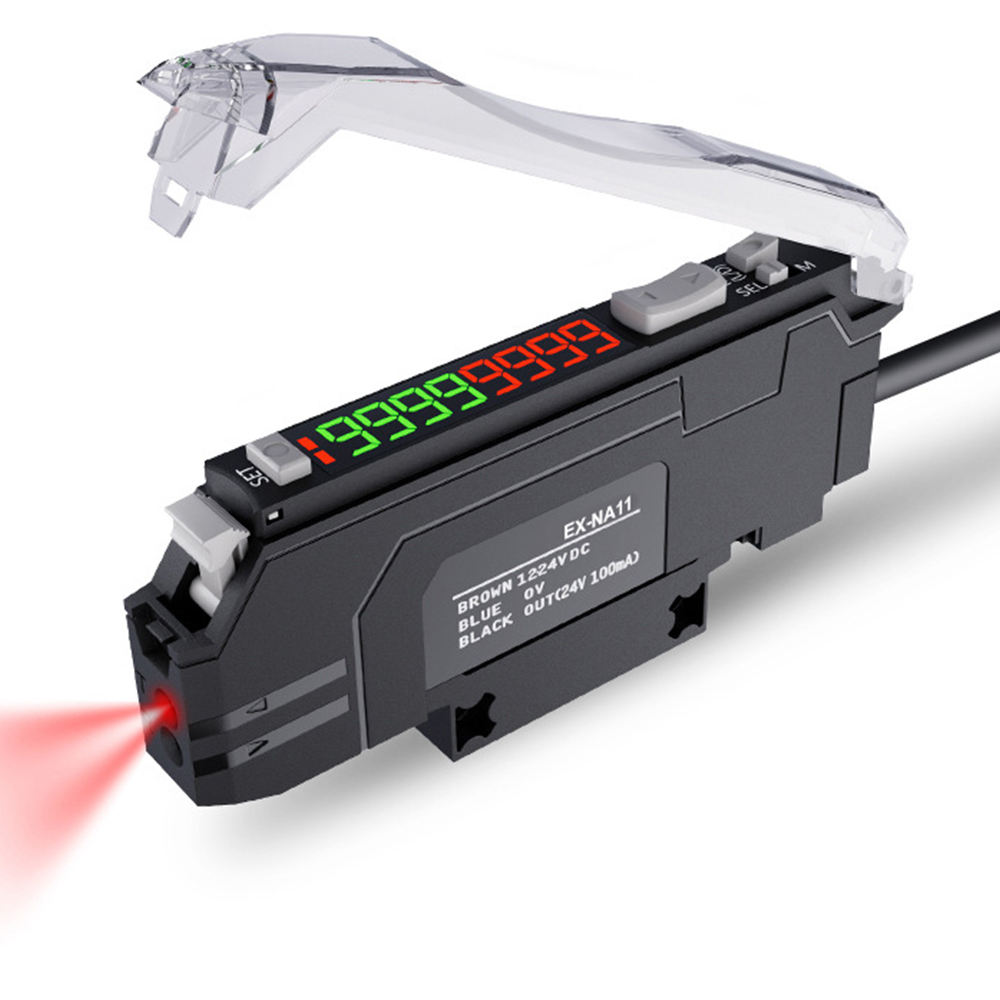

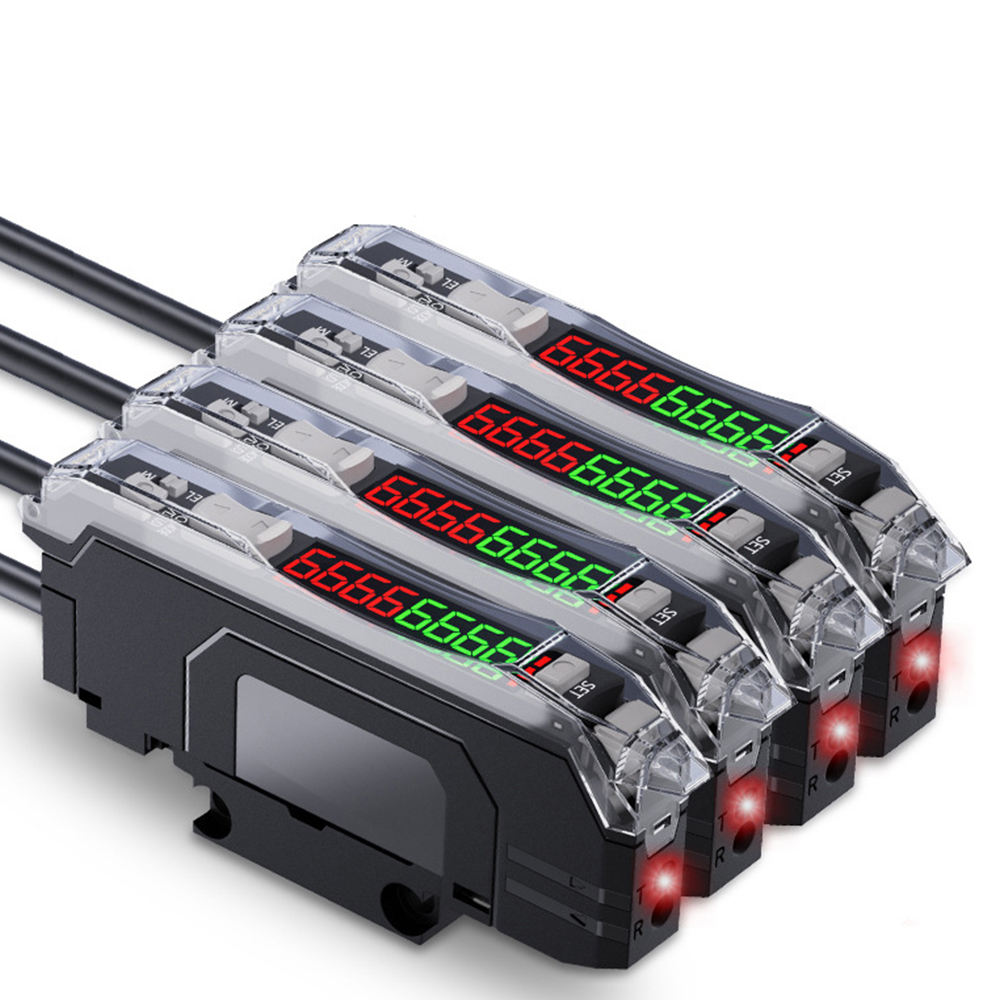

MOTEE Dual Digital Display High-speed Fiber Optic Amplifier EX Infrared Beam Sensor Diffuse Reflection Induction Switch
Description
Description
Product Model | Economical | Simple dual digital display | Photosensitive amplifier | Universal dual digital display | Chinese dual digital display |
EX-NA11 | EX-HD08 | EX-HD09 | EX-HD10 | EX-HD20 | |
Light source | 640nm red modulated light | ||||
Supply voltage | DC12-24V±10% Fluctuation (p-p) less than 10% | ||||
Power consumption | ≤30mA | ||||
Output Mode | NPN open collector/PNP open collector | ||||
Switching mode | L.on (light-on action)/D.on (light-off action) can be set | ||||
Response time | P-0 25μs P-1:100μs，P-2:400μs，P-3:800μs，P-4:3.2ms | ||||
Timer function | On delay, off delay, ONE SHOT timer | ||||
Timing range | 1~9999ms | ||||
Useful functions | Parameter initialization/key lock/threshold two points, fully automatic and manual setting | ||||
Advanced Features | Automatic compensation of projected light and received light, differential detection, area detection | ||||
Ambient temperature | -20℃~+50℃ | ||||
Ambient humidity | 35~85%RH | ||||
Ambient light | Daylight: 30000LX or less Incandescent lamp: 20000LX or less | ||||
Protection Circuit | Surge protection circuit, short circuit protection, reverse polarity protection | ||||
Vibration (durability) | 10~55Hz, 1.5mm double amplitude, up to 2h in X, Y, Z directions | ||||
Impact (durability) | 500m/s2 double amplitude, 10 times in X, Y, Z directions | ||||
Material | Shell: PBT Cover: PC | ||||
