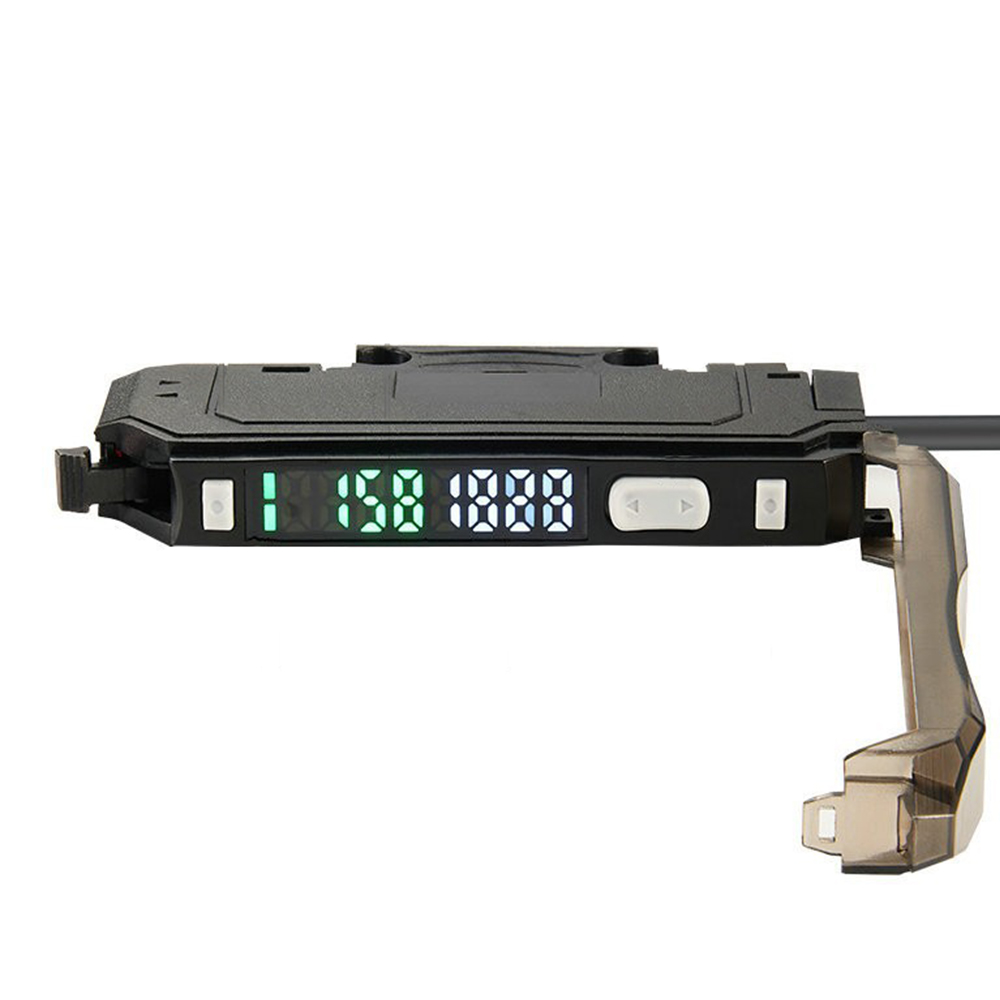

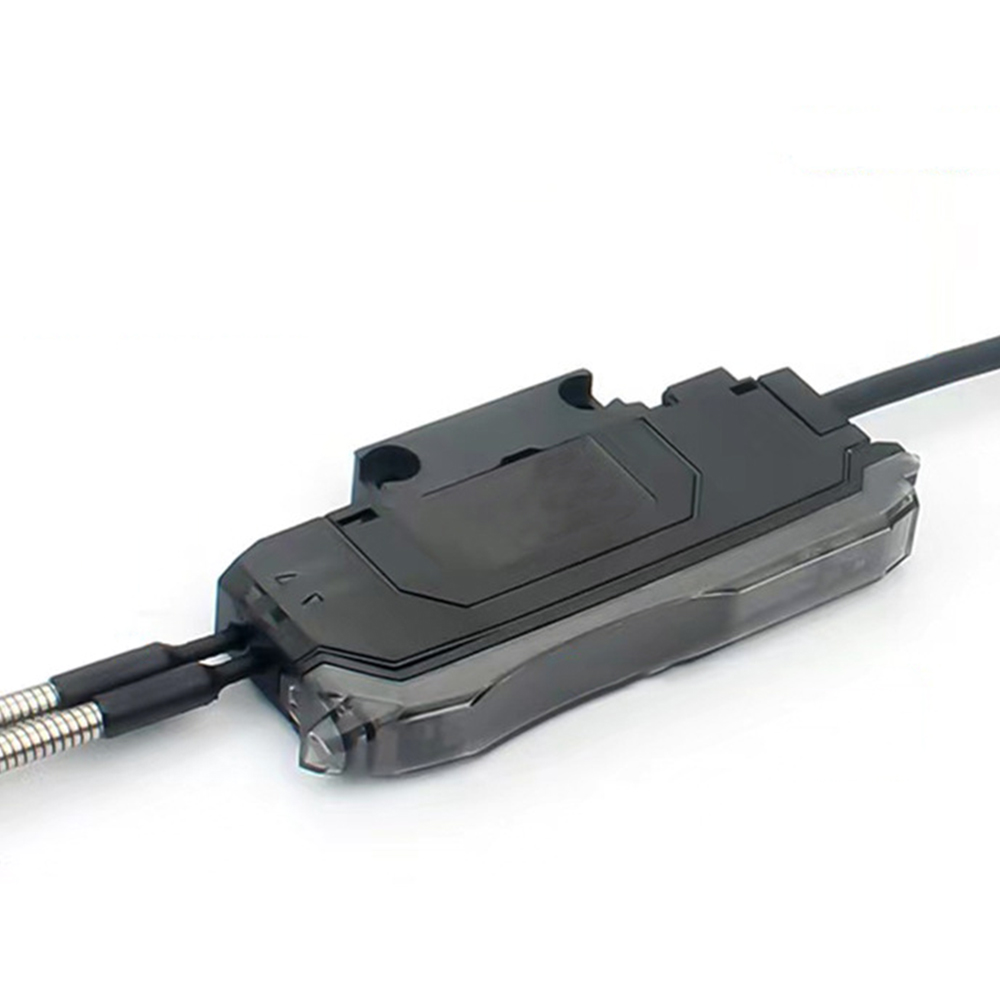

MOTEE Color Fiber Amplifier Color Mark Photoelectric Switch Sensor Label Deviation Correction Positioning Anti-shake Detection
Color fiber optic amplifier
RGB light source capable of recognizing multiple targets
Description
Description
NPN output | EX-C71 | EX-C71X4 | ||
PNP output | EX-C71P | EX-C71X4-P | ||
Control output | Single channel output detection monochrome | Four-channel output detects four groups of colors | ||
Light source | RGB three-color, 4-element light-emitting diode | |||
Reaction time | 300μs(HSP)/1ms(FINE) | |||
Output Selection | LIGHT-ON/DARK-ON | |||
Display Indicator | Output: Red LED Matching rate/received light intensity:LED(red) Set value: LED (green) | Operation indicator: Dual 7-digit display, threshold and current value light up together. Current value range: 0-9999 | ||
Detection method | Light intensity (area detection, automatic sensitive tracking available) | |||
Delay function | Off delay timer/on delay timer/single timer/on delay timer, selectable. Duration time can be selected from 1ms to 9999ms. | |||
Control output | PNP/NPN open collector: 40VDC max (100mA max) Residual voltage: 1.0V max | |||
Power supply | 12 to 24 VDC ±10%, ripple (P-P): maximum 10% | |||
Working environment brightness | Incandescent lamp: up to 5000 Lux Daylight: up to 10000 Lux | |||
Power consumption | Standard mode: Maximum 300mW Maximum voltage: 24V | |||
Vibration resistance | 10 to 55Hz, 1.5mm double amplitude in X, Y, Z directions, 2 hours each | |||
Vibration resistance | -10 to +55°C, no freezing | |||
