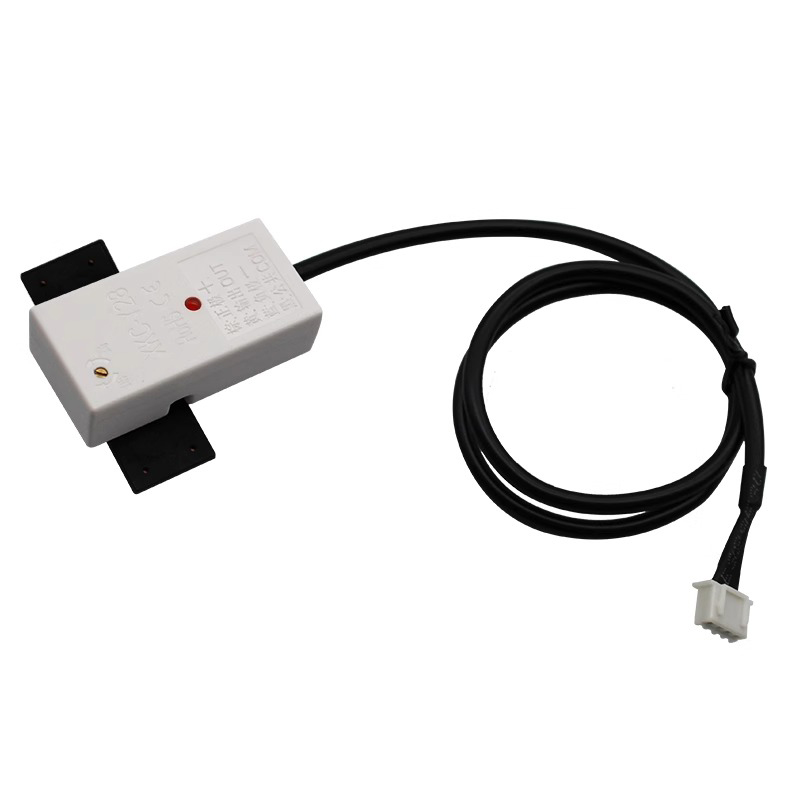

MOTEE Capacitive Liquid Level Sensor Non-contact Replacement of Float Switch Liquid Detection Water Level Sensor
Features
Intelligent non-contact liquid level sensor (hereinafter referred to as liquid level sensor)
Utilizes advanced signal processing technology and a high-speed signal processing chip
Achieving true non-contact detection of liquid level height in sealed containers.
Description
Description
Product Name | EB-DRY capacitive liquid level sensor | |||
Product Model | EB-DRY28NO | EB-DRY28NC | EB-DRY15N | EB-DRY15P |
DC input voltage | 5-24VDC | |||
Output method | Normally open | Normally closed | NPN | PNP |
Sensitivity | Pipe outer diameter D(mm) | Induction tube wall thickness L(mm) | ||
D≥100 | 20±3 | |||
100>D≥80 | 15±2 | |||
80>D≥60 | 12±1.5 | |||
60>D≥40 | 7±1.0 | |||
40>D≥30 | 5±1.0 | |||
30>D≥20 | 3±1.0 | |||
20>D≥10 | 1.5±0.5 | |||
