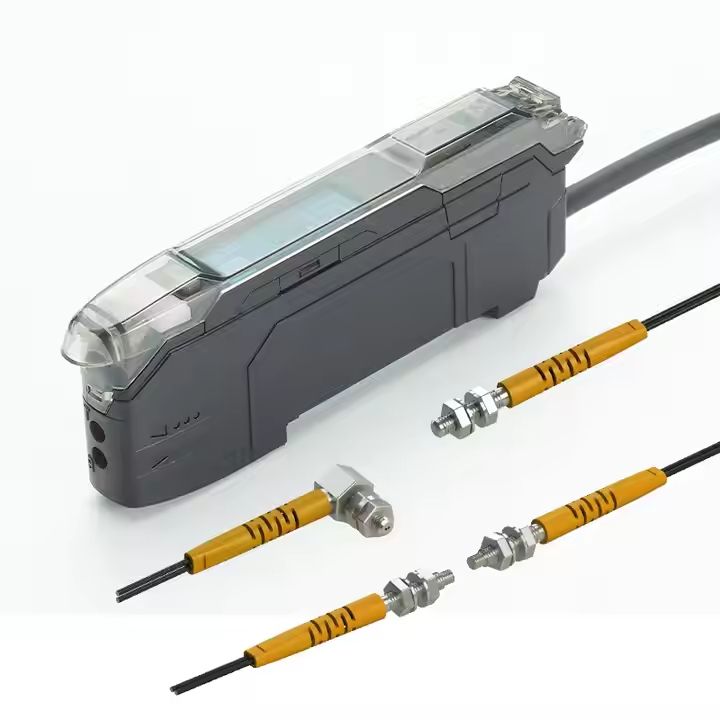

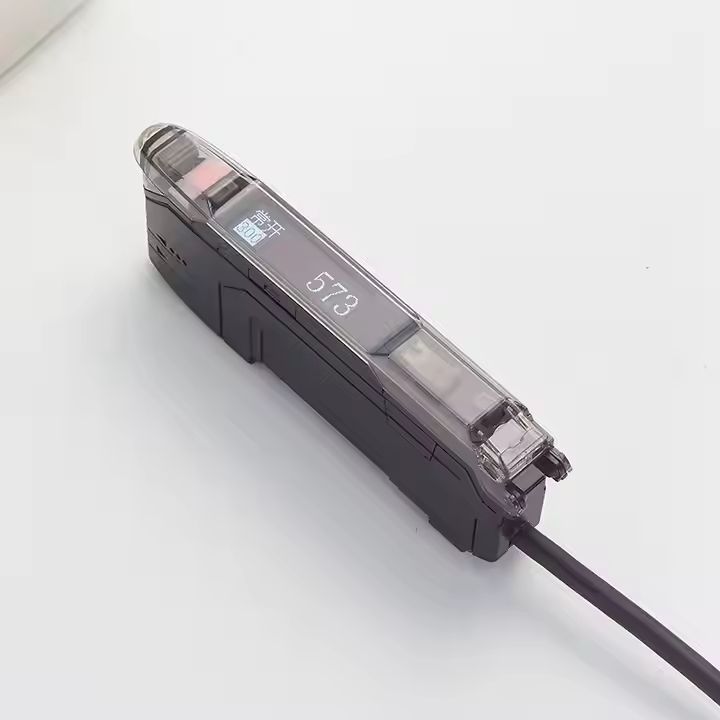

MOTEE Brand New Original Digital Fiber Optic Sensor EX-HD20 Photoelectric Fiber Optic Sensor

Description

Parameter	Specification
Operating voltage	DC 12 ~ 24V ± 10%
Current consumption (no load)	≤ 30mA
Detection distance	Standard mode: Reflection: 200 mm, Beam: 700 mm Long range mode: Reflection: 300 mm, Beam: 1200 mm
light source	4-element red LED (630 nm)
Response time	High speed: <80 μs Standard: <500 μs Remote: <3 ms
Response frequency	5 kHz
Delay function	No delay/single delay/pull high delay/pull low delay
Output Mode	NPN open collector/PNP open collector
Maximum input/output current	100mA
Maximum residual voltage	<1.5V (at 100mA load, 2m cable)
Switching Mode	Light (light action)/Dark (dark action)-switchable

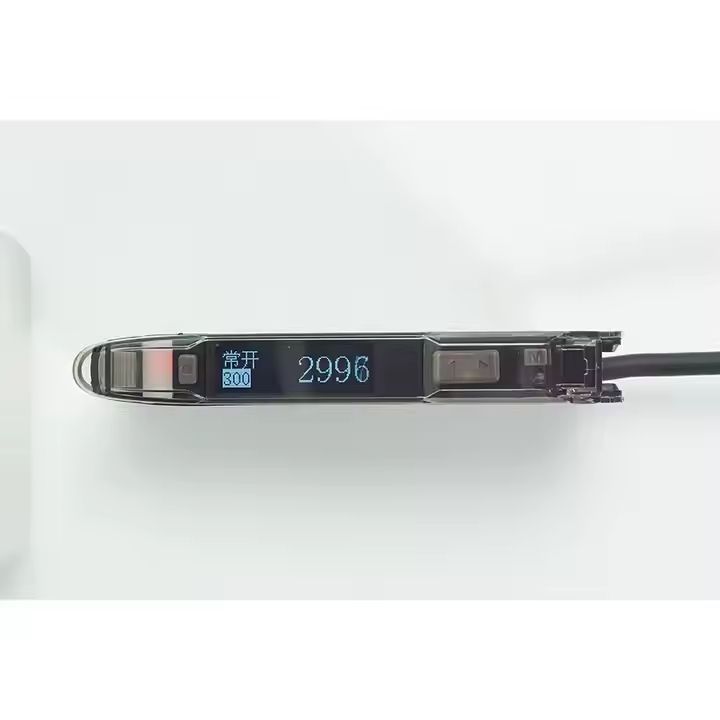

show	Chinese display
Ambient Lighting	Incandescent lamp: ≤ 3000 Lux Sunlight: ≤ 10000 Lux
Operating temperature	Operation: -10°C to +55°C Storage: -25°C to 70°C (non-freezing)
Operating humidity	Operation: 35% ~ 85% RH Storage: 35% ~ 95% RH (non-condensing)
Protection Circuit	Reverse polarity protection/surge protection/short circuit protection
Protection level	IP64
Connection Type	Cable output (3 cores, standard length: 2m)
Housing Material	ABS
Pressure resistance	AC 500V, 50/60Hz, 1 minute
Vibration resistance	10 ~ 55Hz, double amplitude 1.5mm, X/Y/z axis (2H each)
Shock resistance	500m/s², X/Y/z axis (10 times each)
