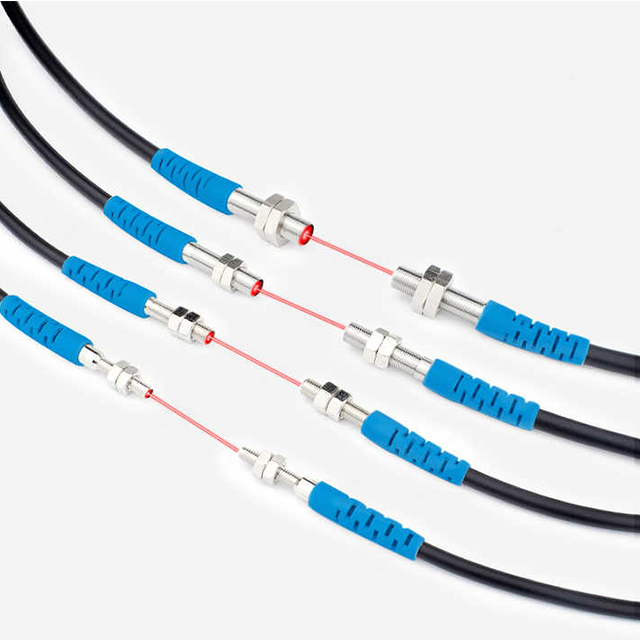

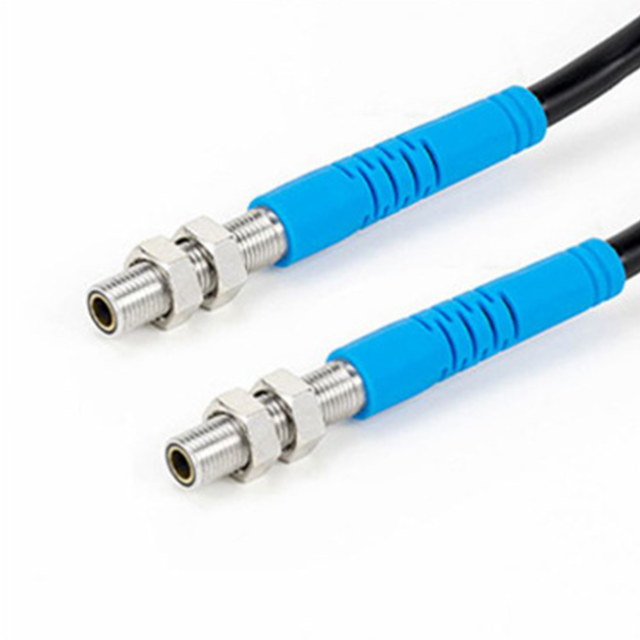

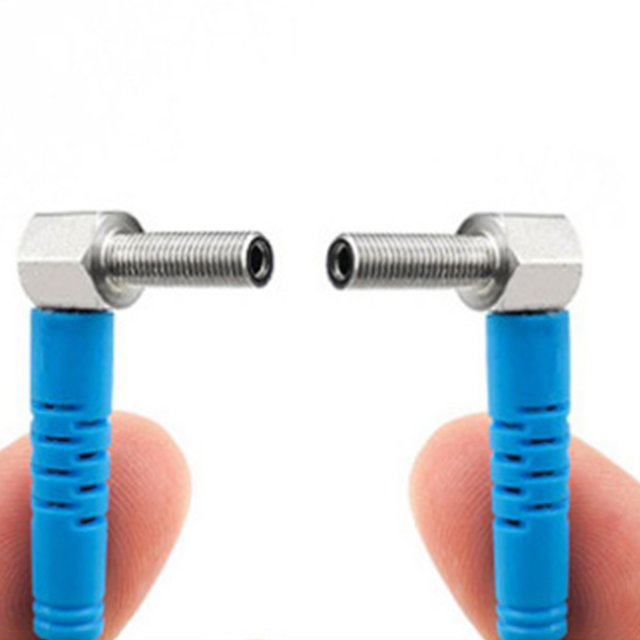

MOTE Micro Laser Photoelectric Switch, Visible Light Spot Sensing, Small Sensor 20/50 Meters

  • Output method:NPN/PNP Normally open/Normally closed
  • Detection distance:0-100mm or 0-3000mm
  • Spot size:Standard 2.0MM
  • Operating voltage:10-30VDC
  • No-load current:<10mA
  • Maximum load:150mA
  • Leakage Current:<0.01mA
  • Switching frequency:100Hz
描述

Product Features

  • Output method:NPN/PNP Normally open/Normally closed
  • Detection distance:0-100mm or 0-3000mm
  • Spot size:Standard 2.0MM
  • Operating voltage:10-30VDC
  • No-load current:<10mA
  • Maximum load:150mA
  • Leakage Current:<0.01mA
  • Switching frequency:100Hz
  • Sturdy body: Small laser diffuse reflection photoelectric sensor
  • Visible laser: (660nm) visible red light. Intuitive, compact, and stable.

Part Number

NPN Models E3F-LDM5 E3F-LDM5Z E3F-LTM5 E3F-LTM5Z
PNP Model E3F-LDM5P E3F-LDM5ZP E3F-LTM5P E3F-LTM5ZP
Detection distance 0-100mm 0-3000mm
Output method NPN/PNP Normally open/Normally closed
Spot size Standard 2.0MM
Operating voltage 10-30VDC
No-load current <10mA
Maximum load 150mA
Leakage Current <0.01mA
Voltage drop <1.5V
Switching frequency 100Hz
Response time 5ms
Switching hysteresis <15%(Sr)
Repeatability <5%-10%(Sr)
Short circuit protection YES
Overload protection 100mA
Standard cable length 2 meters
