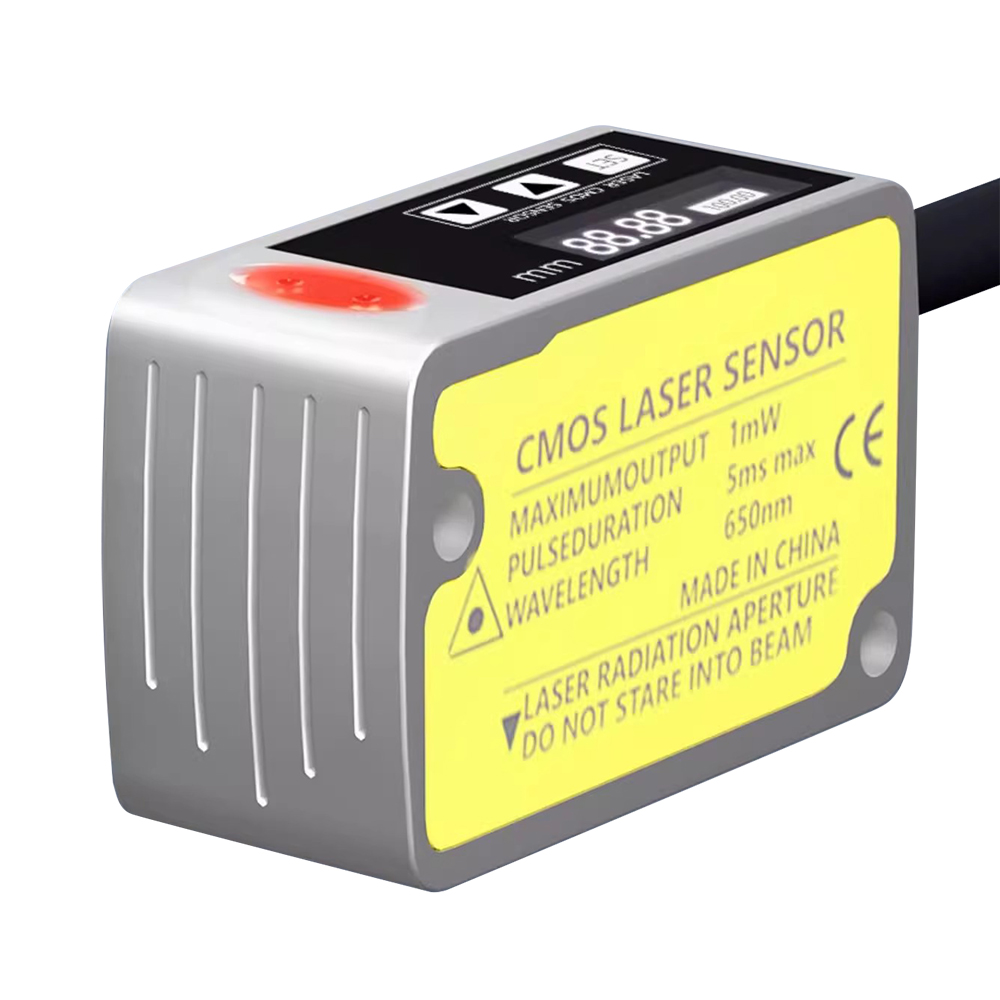

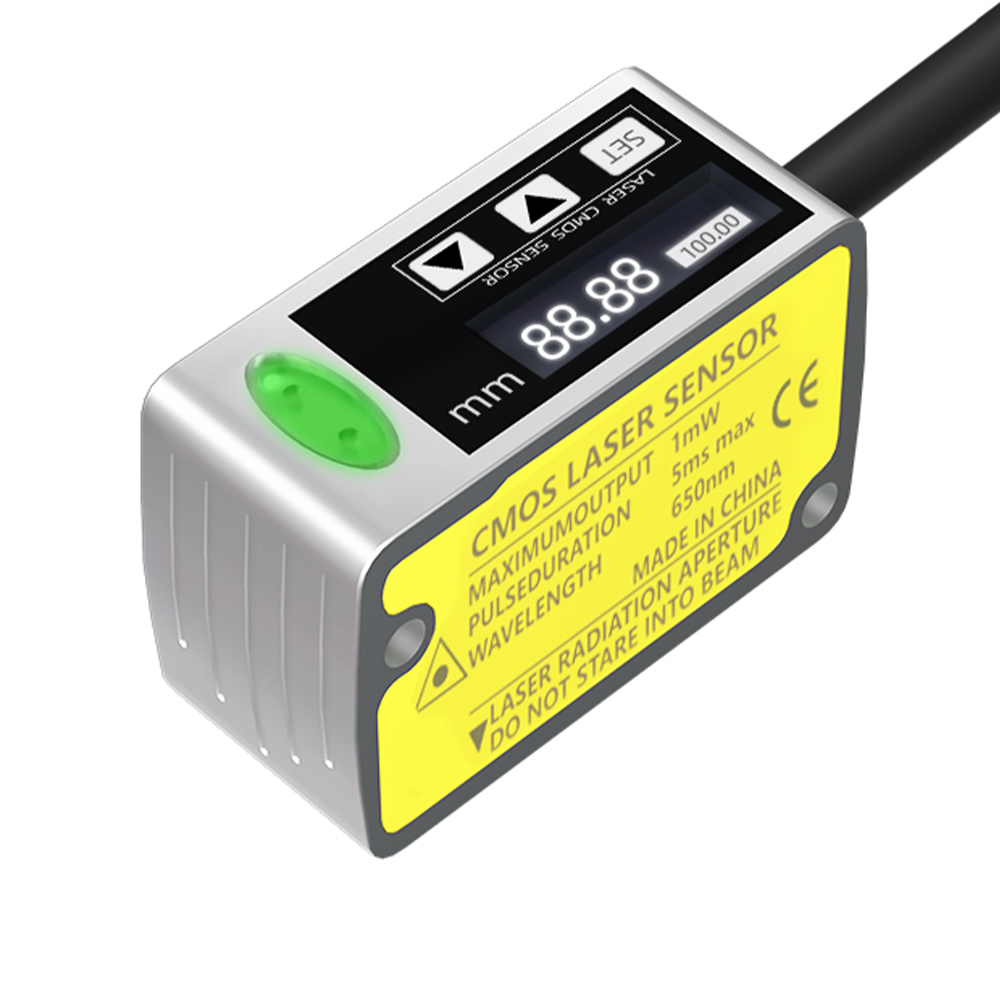

MOTE Long-distance Laser Sensor Has High Accuracy, High Speed and Good Environmental protection Performance
The working principle of TOF (Time-of-Flight) laser rangefinders: Based on time-of-flight ranging technology, it emits laser pulses of a specific wavelength and measures the time it takes for the pulse to travel from emission to reflection. Therefore, by measuring the pulse’s flight time, the distance can be calculated.
Description
Description
Product Model | MD-LTB2000 | MD-LTB5000 | ||
Detection range | 30-2000 | 30-5000 | ||
Repeatability | 2mm | 2mm | ||
Output Category | NPN output/PNP selectable | |||
Output method | Dual switch, RS485 | |||
Communication mode | RS485 (supports multi-site output) | |||
Beam diameter | Approx. 5mm | |||
Power supply voltage | 12V-24V DC±10% ripple P-P10% | |||
Current consumption | 100mA or less | |||
Light source | Red semiconductor laser class 2, maximum output: 1mW, beam wavelength: 620-650mm | |||
Short circuit protection | Equipped with (automatic recovery type) | |||
Response frequency | 20-1000HZ | |||
Protection structure | IP65 (IEC) | |||
Ambient temperature | -10°C-+40°C (no condensation or freezing) | |||
Use environment | 35%-85%RH (non-condensing) | |||
Use environment illumination | Incandescent lamp: illuminance of the light receiving surface is less than 3,000lx | |||
Cable | Outer diameter 5mm 6-core composite cable 2m/cable length can be customized | |||
Material | Main body shell: aluminum casting | |||
Weight | About 35g (without cable) About 85g (with cable) | |||
Product size | 62*37*23mm | |||
Applicable specifications | Compliant with MC directive | |||
