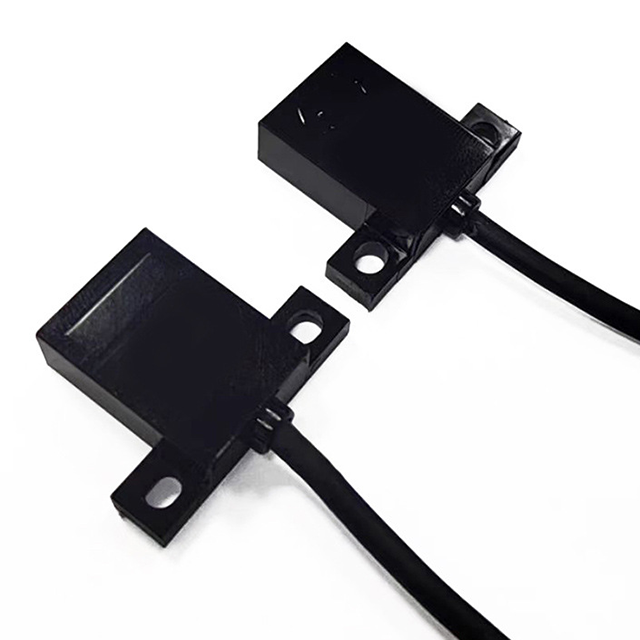

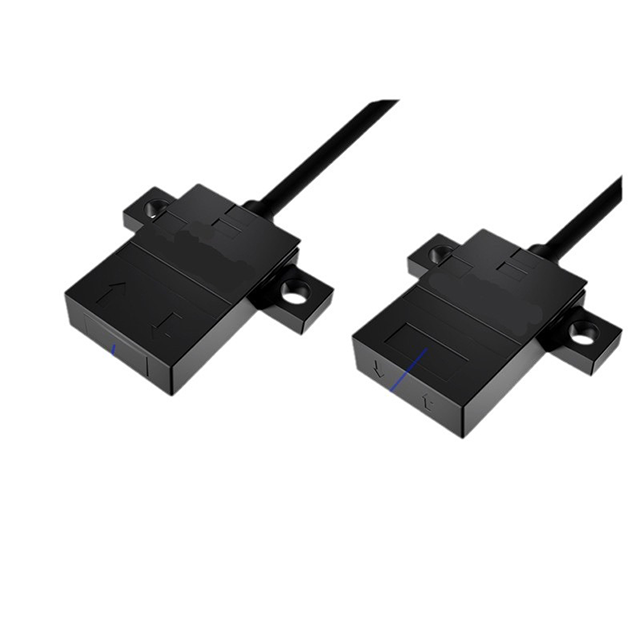

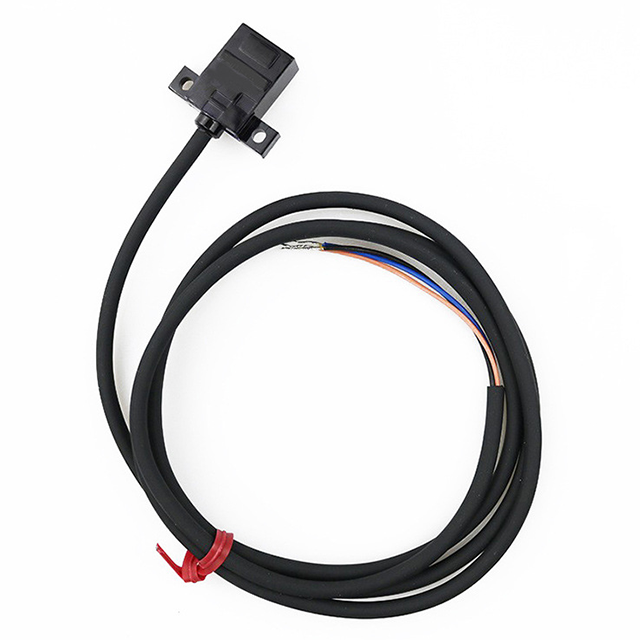

MOTE Flat Detection Diffuse Reflection Photoelectric Switch Sensor Induction Switch NPN Normally Open Normally Closed

  • Supply voltage:DC12-24 pulsation (p-p) less than 10% (DC10-30)
  • Current consumption:≤25mA
  • Response frequency: Less than 1ms
  • Control output:Light ON
  • Detecting objects:Opaque objects with a diameter of more than 4mm
  • Detection light source:940nm infrared light
  • Detection method:Diffuse reflection
  • Detection distance:Black is larger than 5mm White is larger than
描述

Product Features

  • Supply voltage:DC12-24 pulsation (p-p) less than 10% (DC10-30)
  • Current consumption:≤25mA
  • Response frequency: Less than 1ms
  • Control output:Light ON
  • Detecting objects:Opaque objects with a diameter of more than 4mm
  • Detection light source:940nm infrared light
  • Detection method:Diffuse reflection
  • Detection distance:Black is larger than 5mm White is larger than
  • Ultra-small and space-saving: Ultra-small size, suitable for installation in various narrow spaces.

Part Number

Product Model EZ-WD05 EZ-QD05

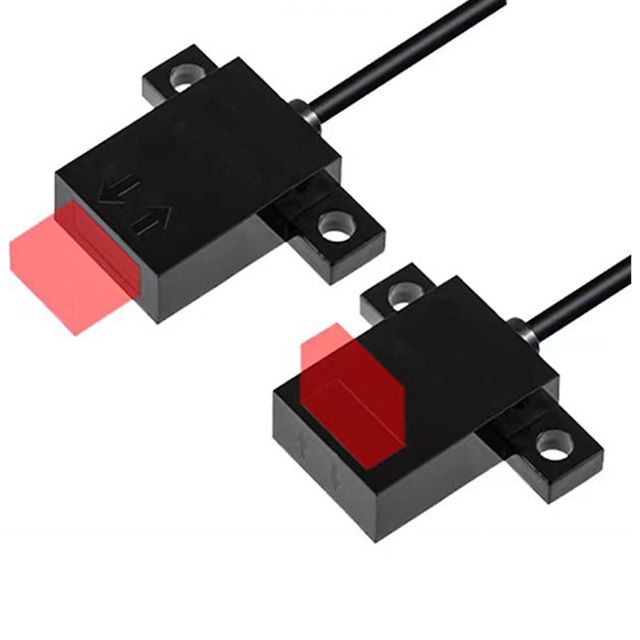

NPN output Upper detection Front detection
Detection distance Black is larger than 5mm White is larger than
Detection method Diffuse reflection
Detection light source Opaque objects with a diameter of more than 4mm
Control output Light ON
Response frequency Less than 1ms
Supply voltage DC12-24 pulsation (p-p) less than 10% (DC10-30)
Current consumption ≤25mA
Circuit protection Surge protection, short circuit protection, reverse polarity protection
Display Light Action indicator light (red)
Ambient temperature Operation: -25°C~+70°C (no ice, no frost) Storage: -40°C~+85°C (no ice, no frost)
Impact of ambient illumination Daylight: 10000LX or less Incandescent lamp: 3000LX or less
Protective structure IP65
Shell material PC
