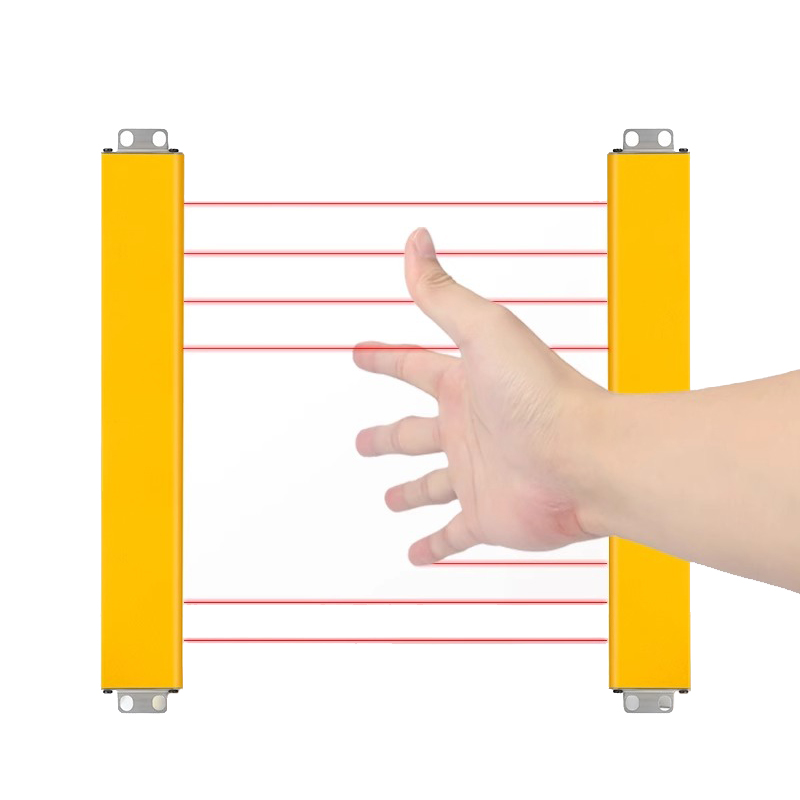

MOTEE Ultra-thin Side Safety Grating Infrared Beam Detector Small Safety Light Curtain Sensor Punch protection

The MTL side-mounted ultra-thin light barrier sensor is an innovative safety solution designed to provide advanced monitoring and protection in industrial applications where space is limited.

描述

Product Features

Supply voltage:24V±10%
Power:3~8W
Response time:≤10ms
Insulation resistance:≥100MΩ
Signal output:NPN、PNP
Protection width:0.2-6m
Operating humidity:35%RH-85%RH
Protection level:IP65

Part Number

Product Name Safety light curtain
Features Universal
Cross-section size 16X29
Optical axis spacing 10mm/20mm/40mm
Number of optical axes 4、6、8、10...256
Protection height Optical axis spacing X (optical axis number - 1)
Protection width 0.2-3m
Supply voltage 24V±10%
Power 3~8W
Response time ≤10ms
Insulation resistance ≥100MΩ
Signal output NPN、PNP
Operating temperature -10℃~+55℃
Storage temperature -40℃~+70℃
Operating humidity 35%RH-85%RH
Anti-light interference 10000Lux
Light curtain form Default line synchronization (optical synchronization above 5M)
Protection level IP65
Product Certification CE / FCC / EMC/ REACH / SIL3/TYPE 4
Circuit Protection Reverse polarity protection/output short circuit protection
Standard wiring Pigtail Air Plug
