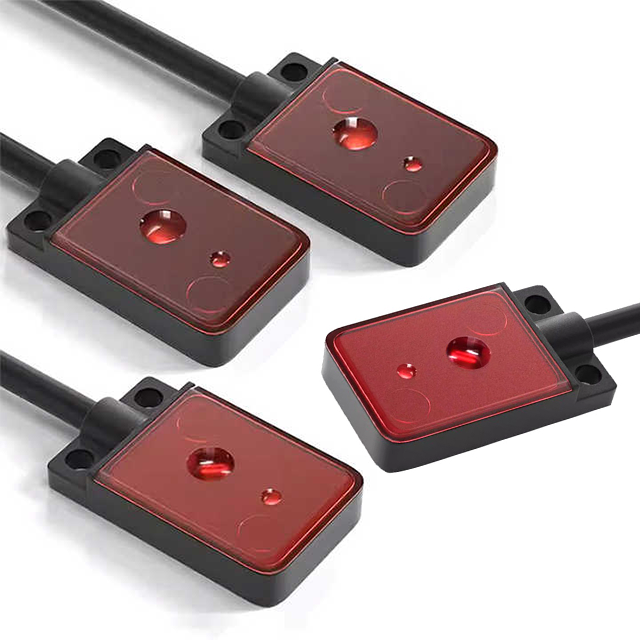

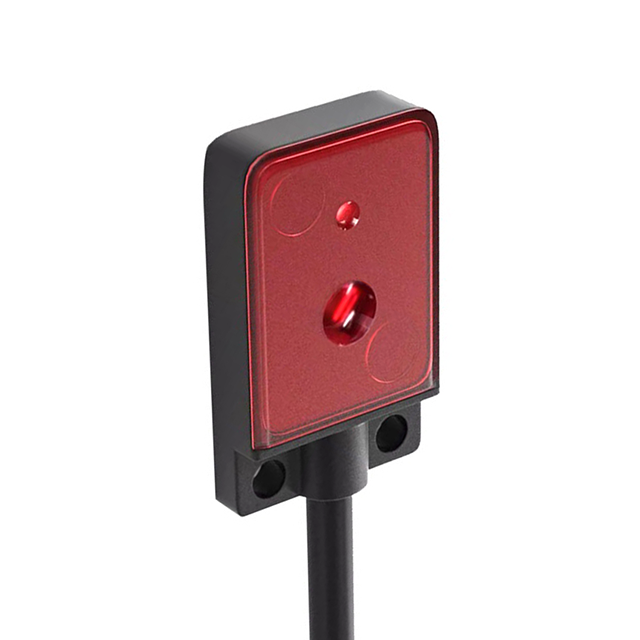

MOTEE Ultra-thin Photoelectric Switch, Diffuse Reflection Sensor Switch, Red Sensor, Flat Type
- Supply voltage:10~30VDC including ripple current (P-P) 10%
- Sturdy Body: Made of durable PBT, it offers a long service life.
- Ultra-Compact: Compact size reduces the inspection area, allowing inspection even when placed close to the inspection window.
- Easy Installation: Easy installation using standard M2 screws.
Product Features
- Supply voltage:10~30VDC including ripple current (P-P) 10%
- Sturdy Body: Made of durable PBT, it offers a long service life.
- Ultra-Compact: Compact size reduces the inspection area, allowing inspection even when placed close to the inspection window.
- Easy Installation: Easy installation using standard M2 screws.
Part Number
超薄光电传感器11
| Product Name | Thin photoelectric sensor | |
| NPN | EZ-FT11 | EZ-FD11 |
| PNP | EZ-FT11P | EZ-FD11P |

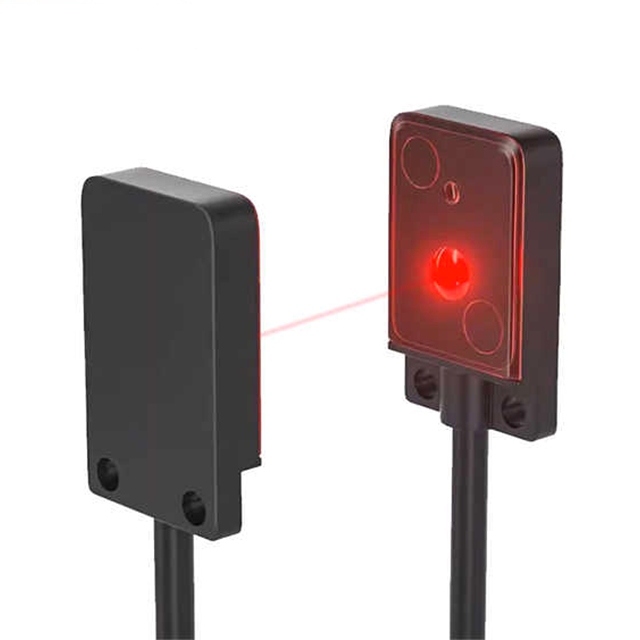

| Type | Through-beam type | Reflective |
| Detection distance | 0.6M | 2~30mm |
| Spot diameter | 3~8mm (the farther away, the larger) | About 5mm (at 30mm) |
| Light source | Point light source: Red LED (650nm) | |
| Reaction time | Maximum 1ms | |
| Indicator Lights | Output: Red; Stable operation: Green; Transmitter power: Green | |
| Supply voltage | 10~30VDC including ripple current (P-P) 10% | |
| Current consumption | 15mA | 20mA |
| Control output | NPN output type: NPN open collector 30VDC or less, 50mA or less; | |
| Residual voltage: 10mA or less, 1.5V or less at 10~30mA, 2.0V or less at 30~50mA | ||
