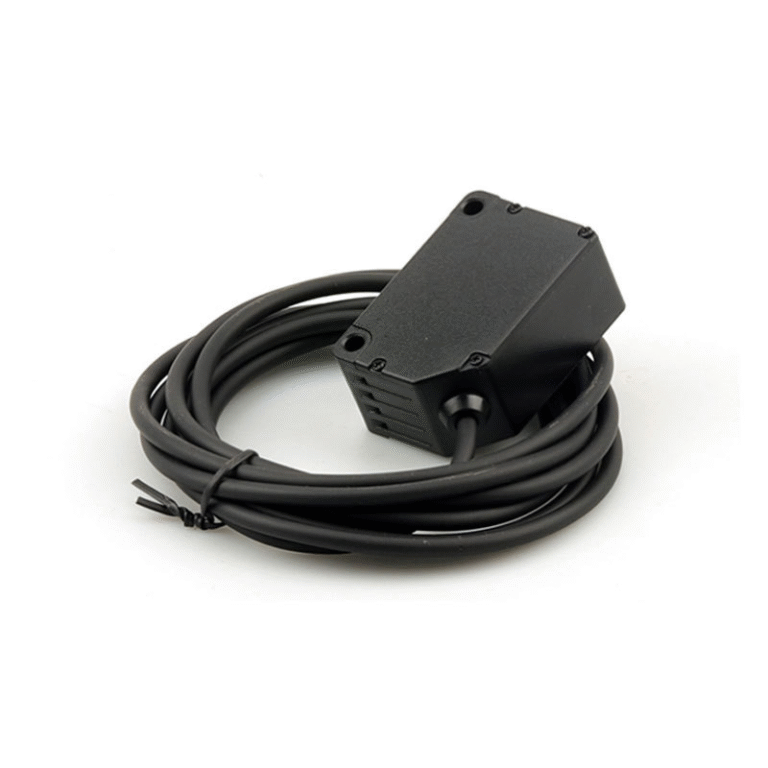

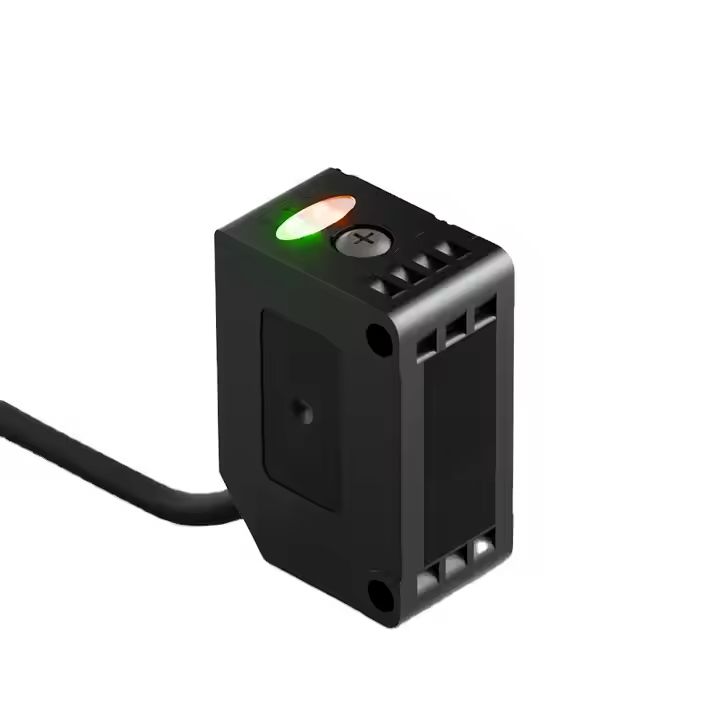

MOTEE Time of Flight Photoelectric Switch Sensor Distance Measurement RS485 Output AGV Intelligent Obstacle Avoidance

  • Detection distance: 30-2000mm (background suppression distance: 1000mm)
  • Light source (wavelength): 640nm red light
  • Power supply voltage: DC12-24V, ripple (p-p) less than 10% (DC10-30V)
  • Protective structure: IP65
  • Casing material: ABS
描述

Product Features

  • Detection distance: 30-2000mm (background suppression distance: 1000mm)
  • Light source (wavelength): 640nm red light
  • Power supply voltage: DC12-24V, ripple (p-p) less than 10% (DC10-30V)
  • Protective structure: IP65
  • Casing material: ABS

Part Number

Product Category Long-distance red light background suppression Long-range laser background suppression
Output NPN EZ-DG10 EZ-LDG10
PNP EZ-DG10P EZ-LDG10P
Detection distance 30-2000mm (background suppression distance 1000mm)
Light source (wavelength) 640nm red light 660nm red laser
Supply voltage DC12-24V ripple (p-p) less than 10% (DC10-30)
Current consumption ≤45mA ≤55mA
Control output Load power supply current 150mA or less (residual voltage 1V or less)
Circuit protection Surge protection, short circuit protection, reverse polarity protection
Response time Action/reply each less than 1.0ms
Display Light Action indicator light (red)
Ambient temperature -25℃~+55℃ -10℃~+45℃
Insulation resistance 20MΩ or more (DC500 megohmmeter) between charging part and shell
Dielectric strength AC1000V or above at 50/60Hz for 1min between charging part and shell
Vibration (durability) 10~50Hz, 1.5mm double amplitude, in X, Y, Z directions for 1h
Impact (durability) 500m/s² double amplitude, 3 times in X, Y, Z directions
Protective structure IP65
Casing material ABS
