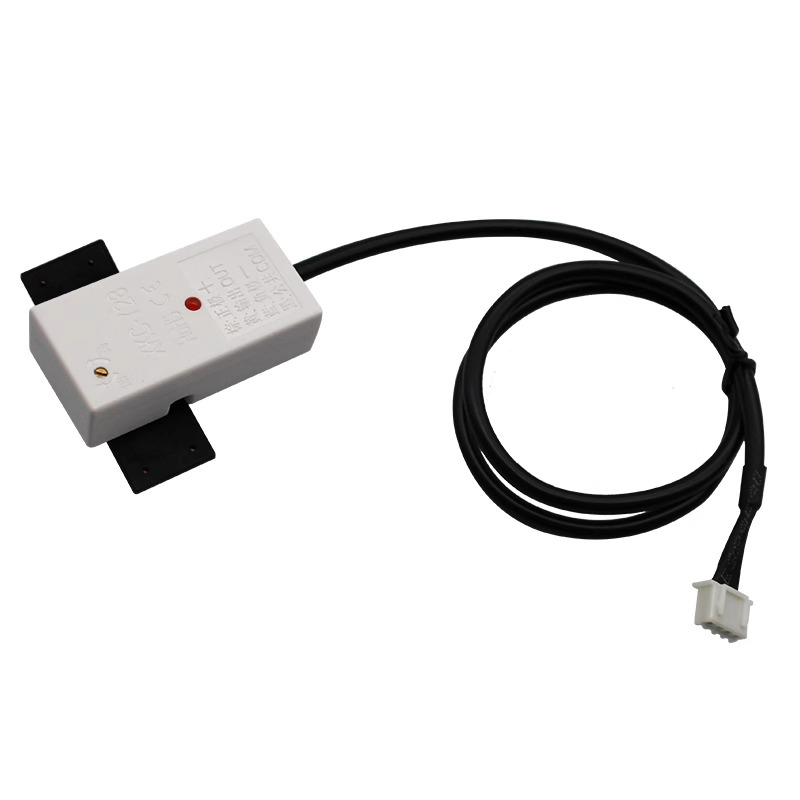

MOTEE Non-contact Liquid Level Sensor External Water Level Sensor Switch Coffee Machine Water Dispenser Lack of Liquid Alarm
- Current consumption：13mA
- Output current：DC24V/2A
- Response time：500mS
- Operating temperature:-20~105 C
- Adopting advanced signal processing technology and high-speed signal processing chip
- It realizes the true non-contact detection of the liquid level in the closed container.
Product Introduction
- Current consumption：13mA
- Output current：DC24V/2A
- Response time：500mS
- Operating temperature:-20~105 C
- Adopting advanced signal processing technology and high-speed signal processing chip
- It realizes the true non-contact detection of the liquid level in the closed container.
Product Description
| Product Name | EB-DRY capacitive liquid level sensor | |||
| Product Model | EB-DRY28NO | EB-DRY28NC | EB-DRY15N | EB-DRY15P |
| DC input voltage | 5-24VDC | |||
| Output method | Normally open | Normally closed | NPN | PNP |
| Sensitivity | Pipe outer diameter D(mm) | Induction tube wall thickness L(mm) | ||
| D≥100 | 20±3 | |||
| 100>D≥80 | 15±2 | |||
| 80>D≥60 | 12±1.5 | |||
| 60>D≥40 | 7±1.0 | |||
| 40>D≥30 | 5±1.0 | |||
| 30>D≥20 | 3±1.0 | |||
| 20>D≥10 | 1.5±0.5 | |||
| Applicable pipe diameter range | ≥11mm | |||
| Liquid level accuracy | 士1.5mm | |||
| Humidity | ±1.5mm | |||
| Cable Length | 5%~100% | |||
| Cable End Definition | 500mm (±10mm) (Customizable in bulk) | |||
| Cable end definition | Brown (power positive), yellow (signal output) | |||
| Blue (negative pole of power supply), black (COM terminal) | ||||
| Material | PC-VO fireproof material | |||
| Waterproof performance | IP65 | |||
| Safety standards certification | CE | |||
| Environmental certification | ROHS2.0 | |||
