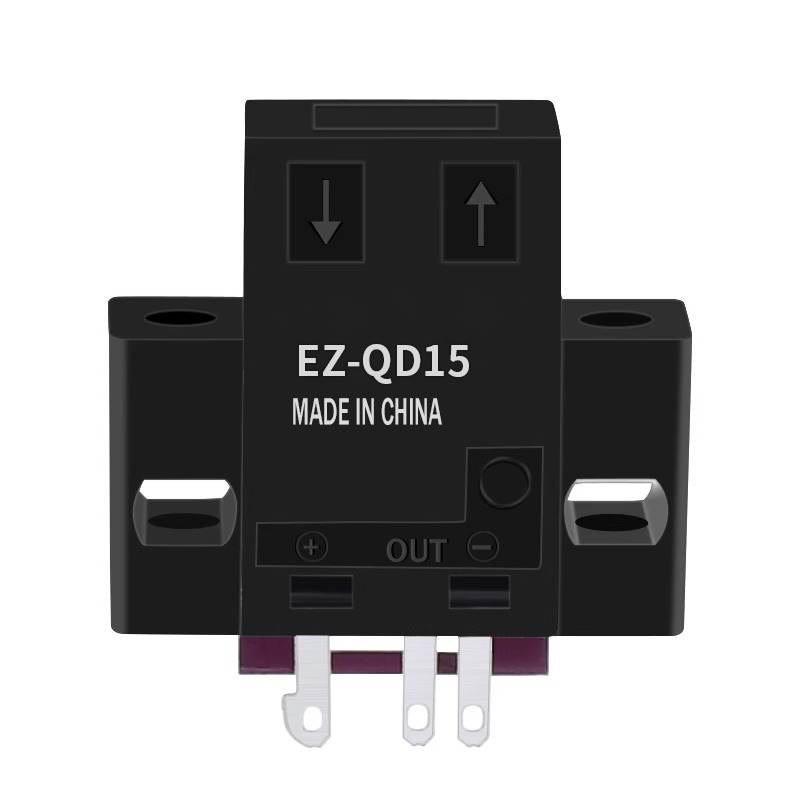

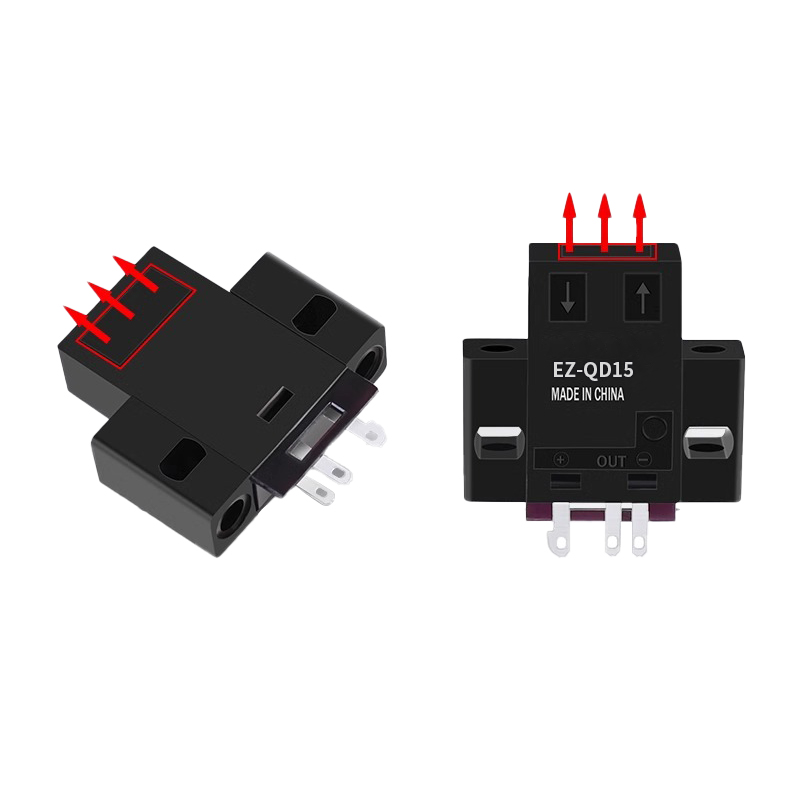

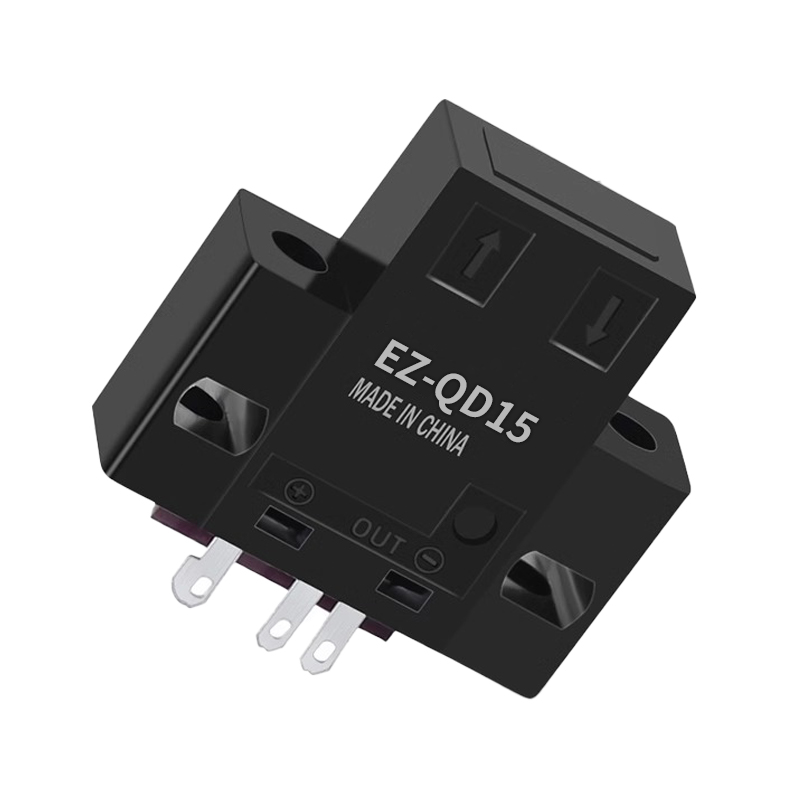

MOTEE Manufacturer Customized Plc Flat Photoelectric Sensor EZ Short-distance Limit Induction Sensor

  • Supply voltage:DC12-24 pulsation (p-p) less than 10% (DC10-30)
  • Current consumption:≤25mA
  • Response frequency: Less than 1ms
  • Control output:Light ON
  • Detecting objects:Opaque objects with a diameter of more than 4mm
  • Detection light source:940nm infrared light
  • Detection method:Diffuse reflection
  • Detection distance:Black is larger than 5mm White is larger than
描述

Product Features

  • Supply voltage:DC12-24 pulsation (p-p) less than 10% (DC10-30)
  • Current consumption:≤25mA
  • Response frequency: Less than 1ms
  • Control output:Light ON
  • Detecting objects:Opaque objects with a diameter of more than 4mm
  • Detection light source:940nm infrared light
  • Detection method:Diffuse reflection
  • Detection distance:Black is larger than 5mm White is larger than

Part Number

漫反射条形光电传感器

NPN signal output EZ-D461 EZ-D561
PNP signal output EZ-D461P EZ-D561P
Detection distance 5mm-200mm, spot size 4mm 5mm-100mm, spot size 1mm
Light source 640nm red light 640nm laser
Minimum detectable object 2mm copper wire (set distance 100mm), can filter up to 5mm gap or perforation
Repeatability Less than 1mm
Supply voltage 12-24V DC±10%
Pulse P-P10% or less
Current consumption 13mA or less
Short circuit protection Equipment
Output Default NPN signal, maximum inflow current: 50mA
Applied voltage: 30V DC or less (between output and 0V)
Residual voltage: 2V or less (inflow current 50mA)
Reaction time 0.5ms or less
Working status indicator Power on green LED, sensing orange LED (lit when output is ON)
Protective structure IP67(IEC)
Operating ambient temperature -25 to +55°C (no condensation or freezing), storage: -30 to +70°C
Operating environment humidity 35-85%RH, Storage: 35-85%RH
Ambient illumination Incandescent lamp: illumination of the light receiving surface is less than 3,000R
Light projector 640nm Red LED
Material PC
Cable 2.8mm outer diameter rubber cable, 2m long, can be customized to extend
Wight 50g
