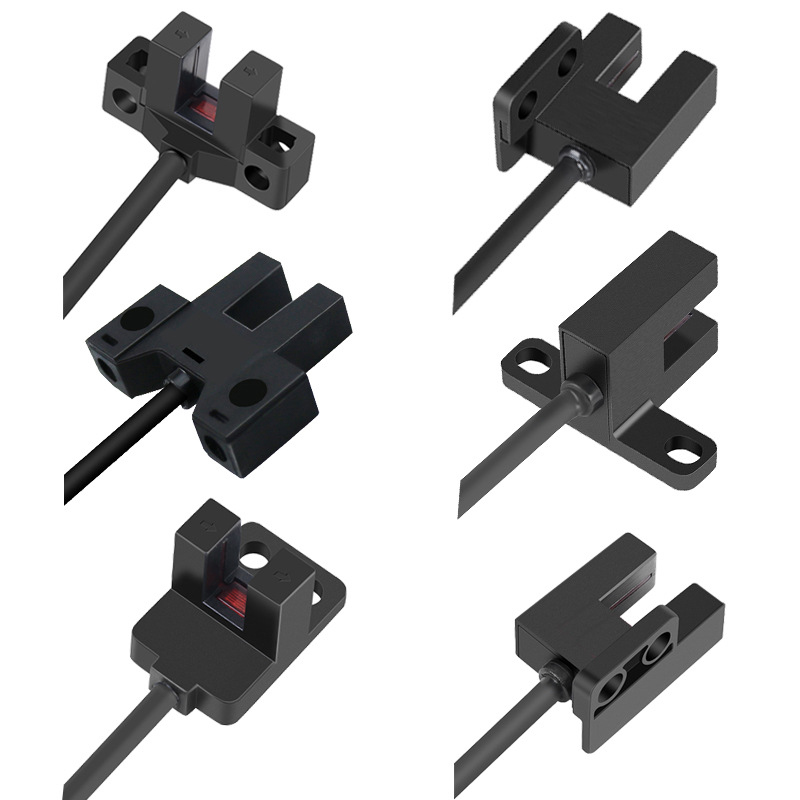

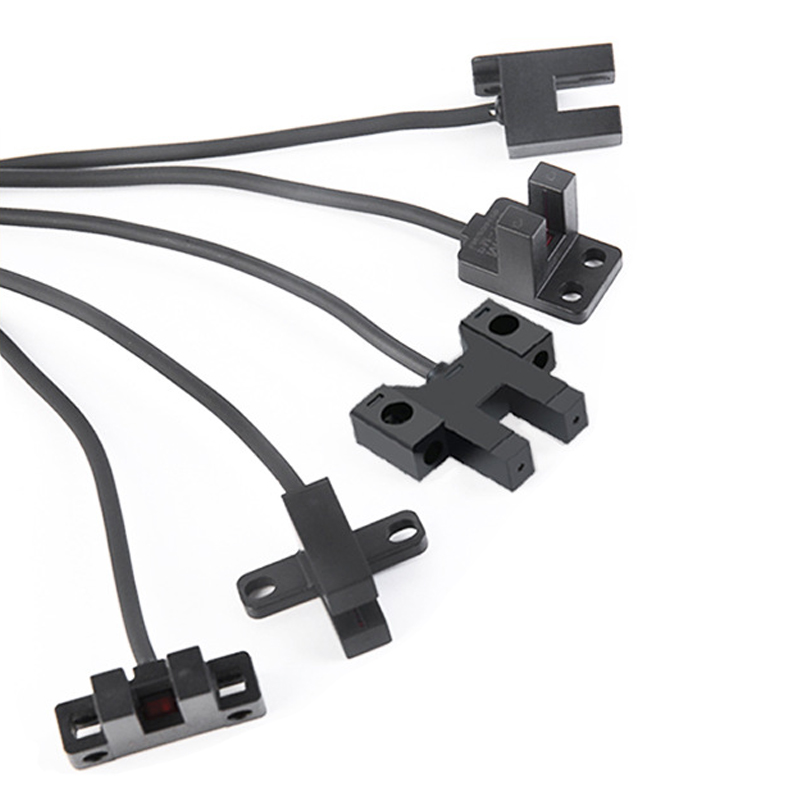

MOTEE Manufacturer Customized Compact Slot-type Photoelectric Sensor UX45 Micro
Operating voltage:5VDC~24V DC±10% ripple P-P10% or less
Residual voltage:1V or less (load current 100mA)
Current consumption:≤8mA
Protective structure:IP50(IEC)
Material:ABS+PC
Product Features
Operating voltage:5VDC~24V DC±10% ripple P-P10% or less
Residual voltage:1V or less (load current 100mA)
Current consumption:≤8mA
Protective structure:IP50(IEC)
Material:ABS+PC
Part Number
| Product Model | K-Type | L-Type | T-Type | Y-Type | F-Type | R-Type |
| Operating voltage | 5VDC~24V DC±10% ripple P-P10% or less | |||||
| Residual voltage | 1V or less (load current 100mA) | |||||
| Current consumption | ≤8mA | |||||
| Protective structure | IP50(IEC) | |||||
| Ambient light | Incandescent lamp illuminance on the light receiving surface: less than 1000 lux | |||||
| Ambient temperature | -25℃-+55℃ (no condensation or icing), storage: -30℃-+80℃ | |||||
| Ambient humidity | 5%RH-85%RH, Storage: 5%RH-95%RH | |||||
| Withstand voltage | AC1,000V 1 minute between all power connection terminals and the housing | |||||
| Vibration resistance | Frequency 10Hz~2,000Hz, double amplitude 1.5mm (maximum acceleration 196m/s2), XYZ directions 2 hours | |||||
| Insulation resistance | Between all power connection terminals and the housing, more than 20MΩ, based on a DC250V high resistance meter | |||||
| Protection level | IP50(IEC) | |||||
| Material | ABS+PC | |||||
| Outlet mode | Connectors | |||||
| Model NPN | UXK45 | UXL45 | UXT45 | UXY45 | UXF45 | UXR45 |
| Model PNP | UXK45P | UXL45P | UXT45P | UXY45P | UXF45P | UXR45P |
