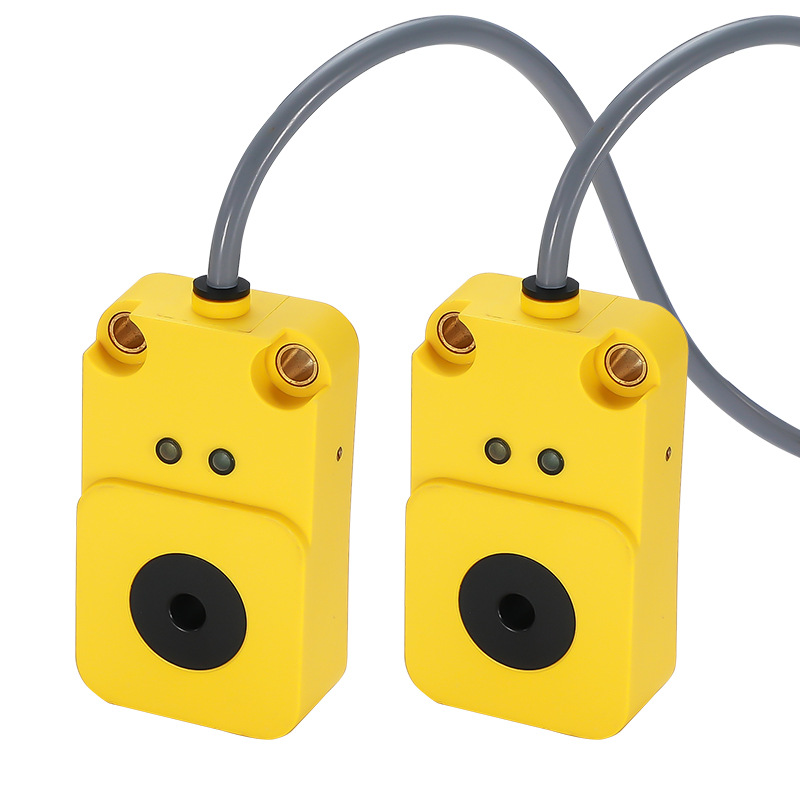

MOTEE High-speed Ring Proximity Switch Sensor Metal Induction Switch Screw Spring Detection Blanking Counter

  • Non-contact position detection, no wear, high reliability
  • High sensitivity, high repeatability, product life up to 8 years
  • A variety of housing materials, from stainless steel, nickel-copper alloy to plastic, Teflon coating
  • Complete specifications and sizes, covering almost all sizes
  • IP67 protection grade design, excellent water and oil resistance
描述

Product Introduction

  • Non-contact position detection, no wear, high reliability
  • High sensitivity, high repeatability, product life up to 8 years
  • A variety of housing materials, from stainless steel, nickel-copper alloy to plastic, Teflon coating
  • Complete specifications and sizes, covering almost all sizes
  • IP67 protection grade design, excellent water and oil resistance

Product Description

Product Model EB-C06 EB-C10 EB-C15
Hole diameter 6mm 10mm 15mm
Hole height 20mm
Operating voltage 10~30VDC (voltage fluctuation <10%)
Residual voltage <1.5V
Maximum load current <150mA
Consumption current <15mA
Switching frequency 2KHz 1.5KHz 1KHz
Minimum detection object D=2.5mm;L=4mm D=3mm;L=6mm D=6mm;L=12mm
Leakage current <10mA
Repeat accuracy <2.0%(Sr)
Hysteresis <15%(Sr)
Casing material PBT
Operating temperature -25°C to +75°C
Protection circuit Short-circuit/reverse polarity protection
Protection level IP67
