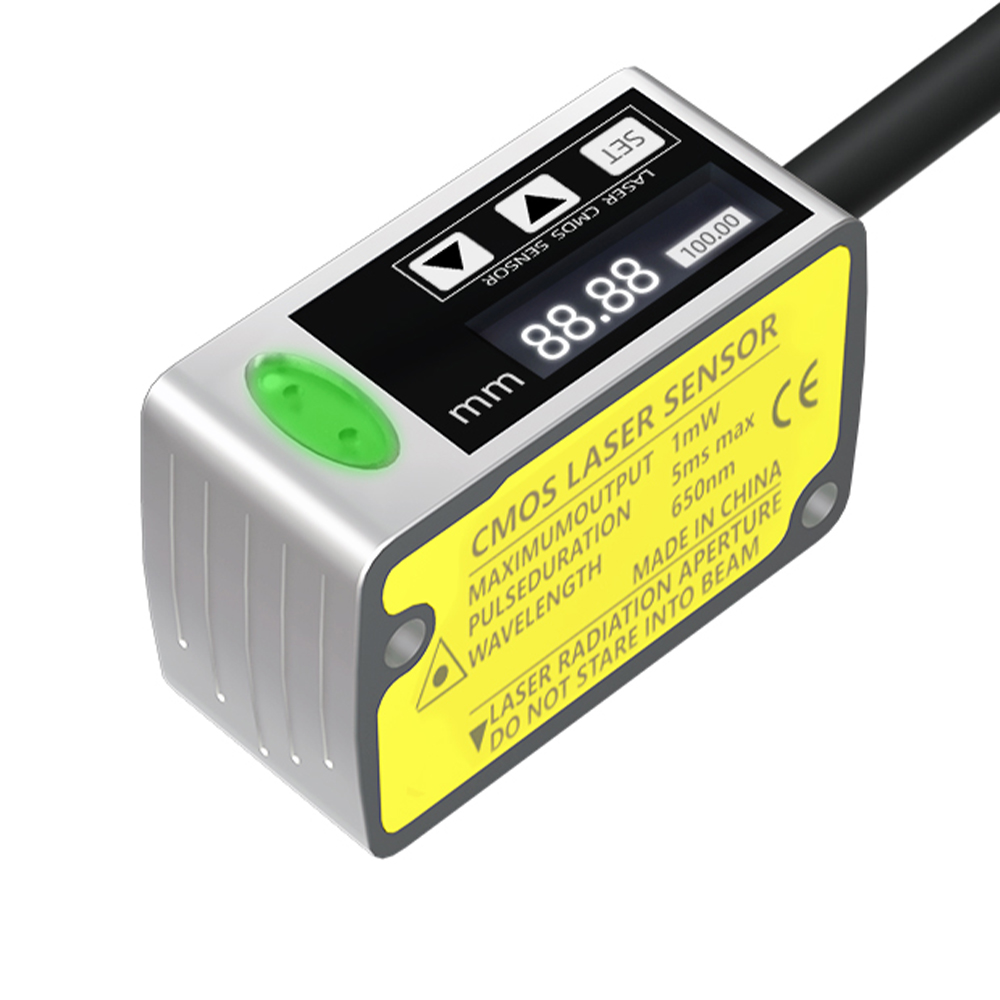

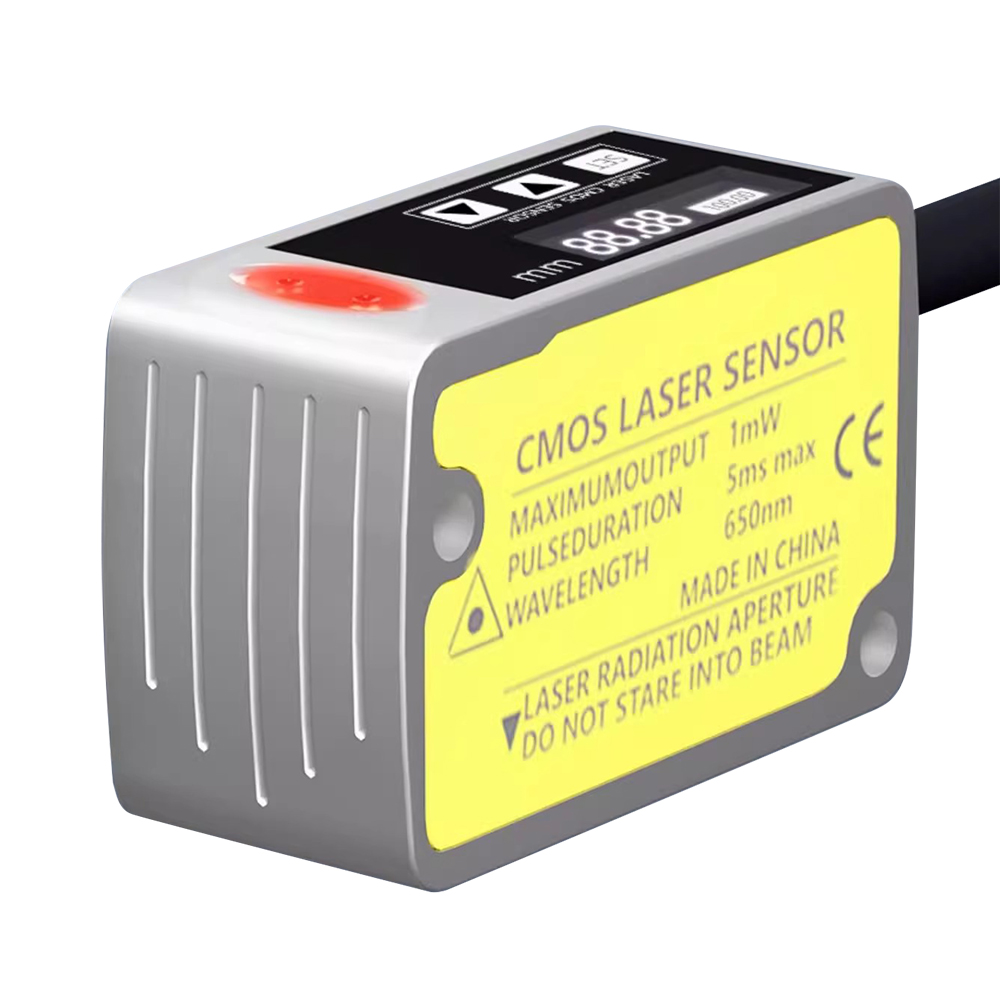

MOTEE High Precision Analog RS485NPN PNP Laser Displacement Sensor Stable Detection with 0.002mm Accuracy Optical Sensor
TOF (Time-of-Fligh), the working principle of the laser ranging sensor is based on the time-of-flight ranging technology. It emits a laser pulse of a specific wavelength and measures the time from the pulse being emitted to the time it is reflected back. Therefore, by measuring the flight time of the pulse, the distance can be calculated.
Product Features
Output Category：NPN output/PNP selectable
Output method：Dual switch, RS485
Communication mode：RS485 (supports multi-site output)
Power supply voltage：12V-24V DC±10% ripple P-P10%
Current consumption：100mA or less
Response frequency：20-1000HZ
Protection structure：IP65 (IEC)
Use environment：35%-85%RH (non-condensing)
Currently, there are two main algorithmic approaches used in industry: pulsed time-of-flight (dTOF) and interphase time-of-flight (iTOF). Pulse-based time-of-flight (dTOF) directly measures the time-of-flight difference between the emission and reception of a light pulse to calculate distance. Its circuit implementation is relatively simple, with a high measurement frequency and an accuracy of approximately 2-3 mm.
MOTEE
Motee Chuangzhi (Guangdong) International Technology Co., Ltd. was established in 2013. The company specializes in a wide range of sensor technologies, including photoelectric sensors, slot sensors, proximity sensors, fiber optic sensors, safety sensors,displacement sensors, barcode readers, and color sensors. As a leading enterprise in the field of industrial automation intelligent sensors, Mote Chuangzhi integrates high-end chip design, advanced semiconductor packaging, and in-depth research and development of microelectronic integrated circuits, precision production, and global sales. We provide core components for China's high-end intelligent equipment manufacturing industry and are recognized as one of the most influential sensor brand manufacturers in the industry. Our team comprises hundreds of professionals dedicated to research and development, sales, and technical services.
