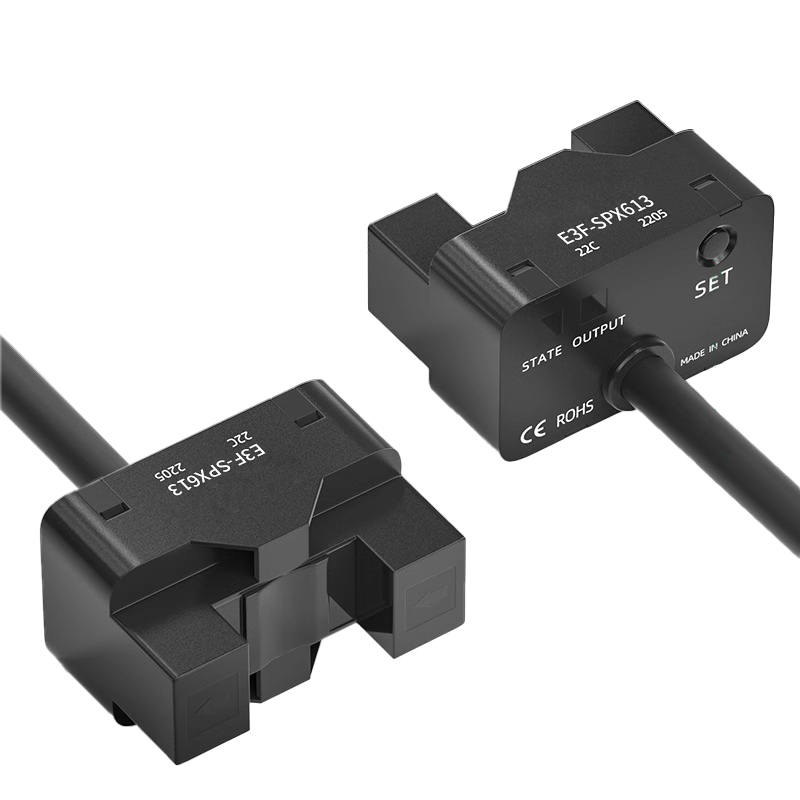

MOTEE E3F-SPX613 Optical Sensor Photoelectric Liquid Level & Water Level Detection Switch

  • With output action switching function and sensitivity switching function, it is a more convenient liquid level sensor
  • One-touch setting makes the sensor smarter
  • Applicable to transparent glass with diameter of 6~13mm and thickness of 1mm
  • Environmentally friendly wire (no powder stripping agent)
描述

Product Features

  • With output action switching function and sensitivity switching function, it is a more convenient liquid level sensor
  • One-touch setting makes the sensor smarter
  • Applicable to transparent glass with diameter of 6~13mm and thickness of 1mm
  • Environmentally friendly wire (no powder stripping agent)

Part Number

Product Model E3F-SPX613 E3F-SPX613P

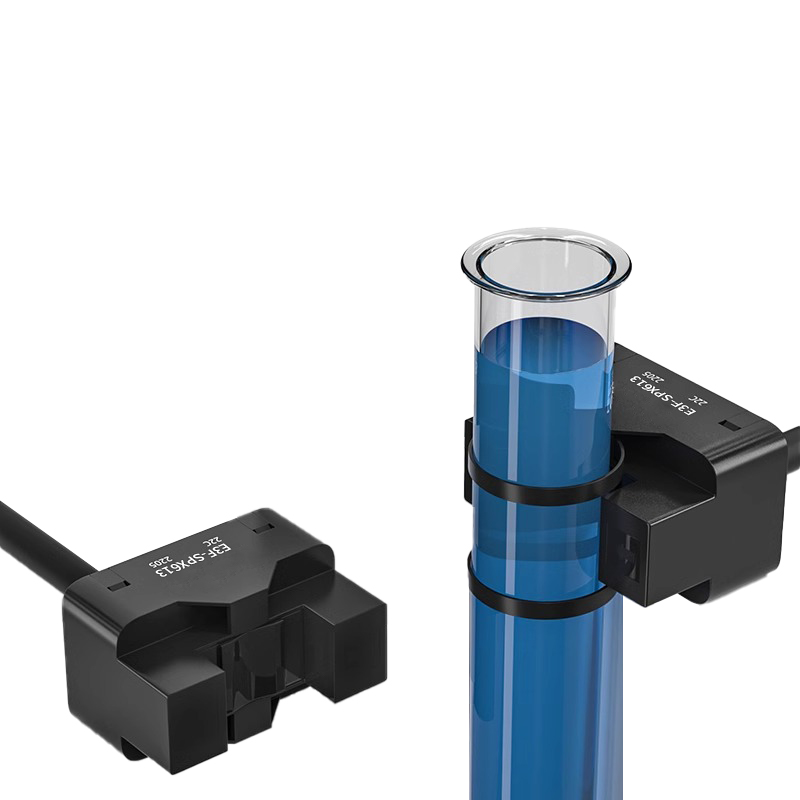

Applicable catheters Transparent catheter with an outer diameter of 6-13mm (thickness 1mm) (made of FEP (fluororesin) or a material with equivalent transparency)
Standard detection object The liquid in the catheter may not be detected if the liquid has high viscosity or contains suspended matter)
Light source (maximum wavelength) GaAs infrared light emitting diode (940nm)

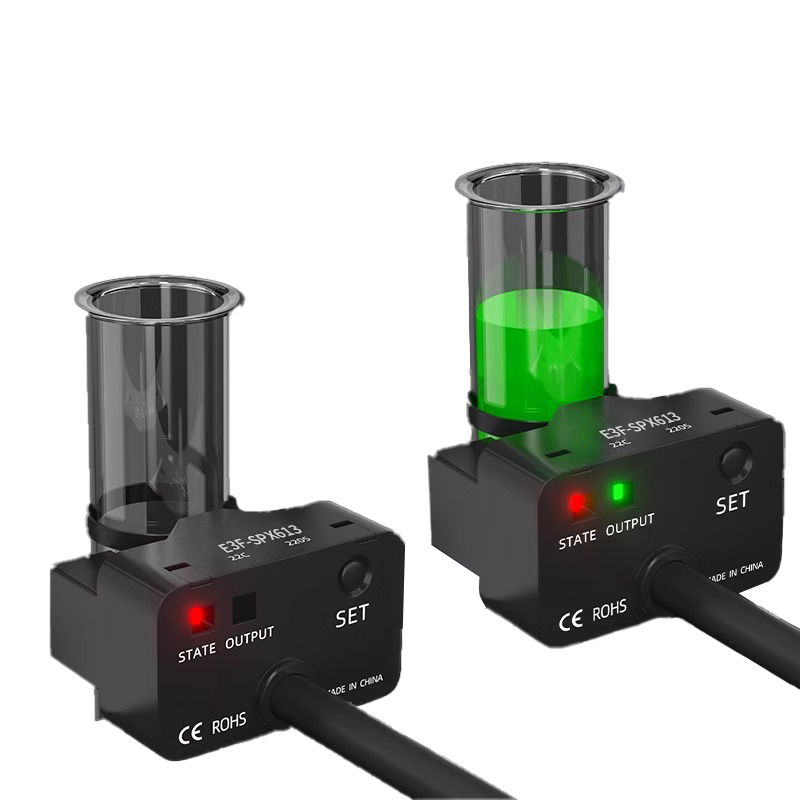

Action indicator Lights up when light enters GaP (red LED: maximum emission wavelength 700nm
Power supply voltage DC12-24V±10% ripple (p-p) less than 5%
Current consumption Average value below 30mA, maximum value below 80mA
Control output Load power supply voltage DC5~24V, load current below 100mA, NPN open collector output type
Operating environment illumination Incandescent lamp and sunlight: 3,000 lx or less each.
Ambient temperature range Operating: -10°C to +55°C; Storage: -25°C to +65°C (no icing or condensation).
Ambient humidity range Operating: 5-85% RH, Storage: 5-95% RH (non-condensing)
Vibration resistance (durability) 10-500Hz, single amplitude 1.0mm or acceleration 150m/s, three sweeps in each of the X, Y, and Z directions (11 minutes per sweep)
Impact resistance (durability) 500 m/s, three times each in the X, Y, and Z directions
Protective structure EC standard: IP50

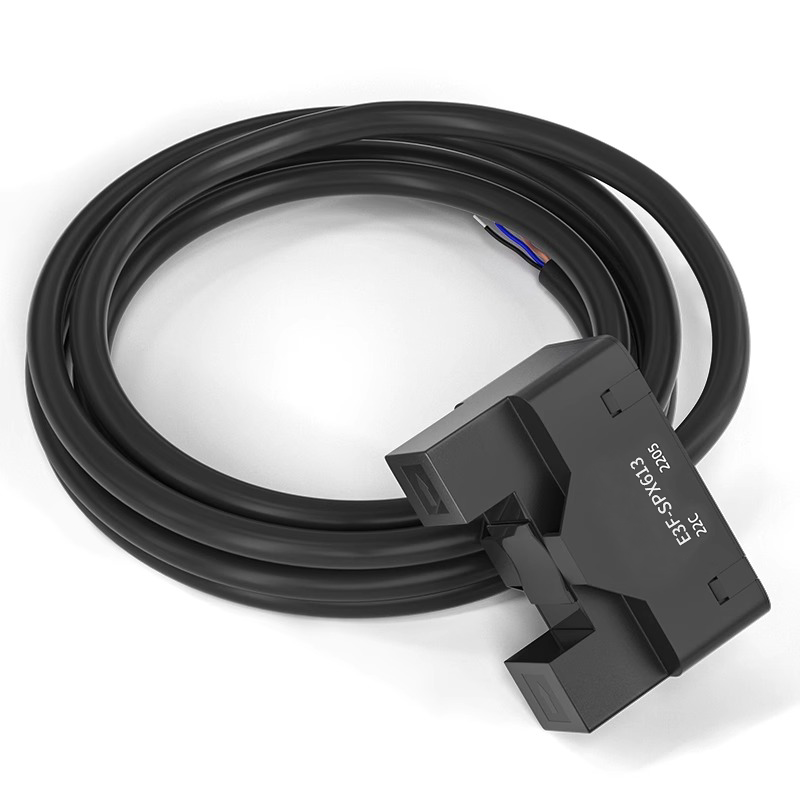

Connection method Lead wire type (standard lead wire length: 1 m)
Quality (after packaging) Approximately 55 g
Material ABS+PC
