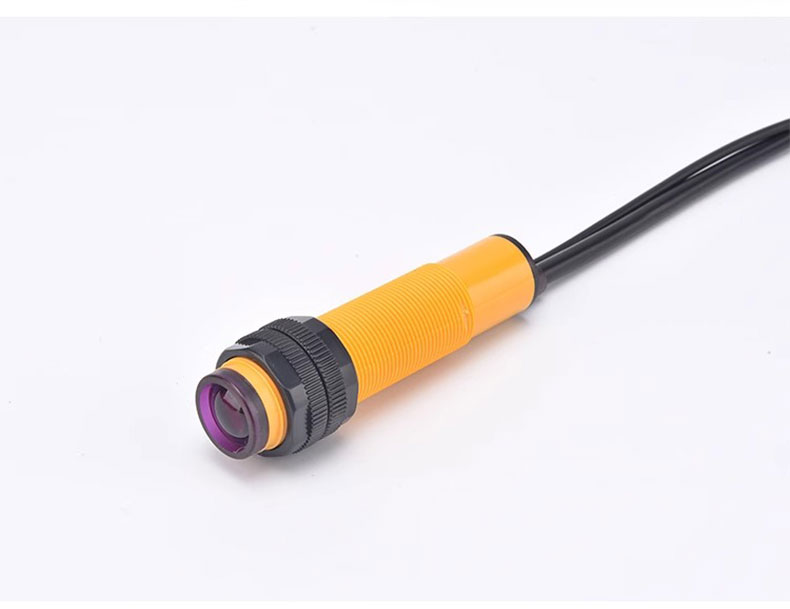

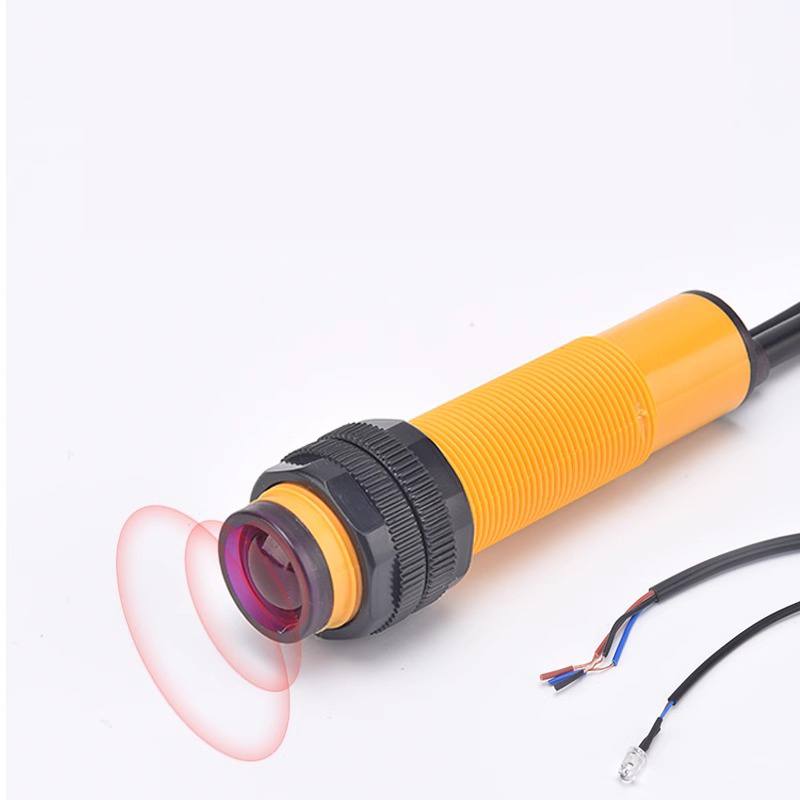

MOTEE Cylindrical Infrared Diffuse Reflection Photoelectric Sensor Sensor Switch E3F Three-wire Sensor NPN Normally Open 24V

  • Contrast:Less than 20% of the detection distance
  • light source:GaAs infrared light emitting diode (850nm)
  • Supply voltage:DC12-24V ripple (p-p) less than 10% (DC10-30)
  • Current consumption:≤25mA
  • Control output:Load power supply current 100mA or less (residual voltage 1V or less)
描述

Product Features

  • Contrast:Less than 20% of the detection distance
  • light source:GaAs infrared light emitting diode (850nm)
  • Supply voltage:DC12-24V ripple (p-p) less than 10% (DC10-30)
  • Current consumption:≤25mA
  • Control output:Load power supply current 100mA or less (residual voltage 1V or less)

Part Number

圆柱形光电传感器

Detection method Diffuse reflection Through-beam type
NPN output Lead wire E3F-DM12 E3F-DM18 E3F-TM12 E3F-TM18 E3F-LTM12 E3F-LTM18
Detection distance 100mm 400mm 5m 10m 20m 40m
Detecting objects 100X100mm white drawing paper Opaque objects with a diameter of more than 12mm
Contrast Less than 20% of the detection distance
light source GaAs infrared light emitting diode (850nm) 660 nm red laser
Supply voltage DC12-24V ripple (p-p) less than 10% (DC10-30)
Current consumption ≤25mA ≤45mA
Control output Load power supply current 100mA or less (residual voltage 1V or less)
Response time Action/response time: less than 1.0ms
Circuit protection Surge protection, short circuit protection, reverse polarity protection
Display Light Action indicator light (red)
Dielectric strength AC1000V or above, 50/60Hz1min, between charging part and shell
Shell material Housing: Metal Light-emitting part/Light-receiving part: PC
