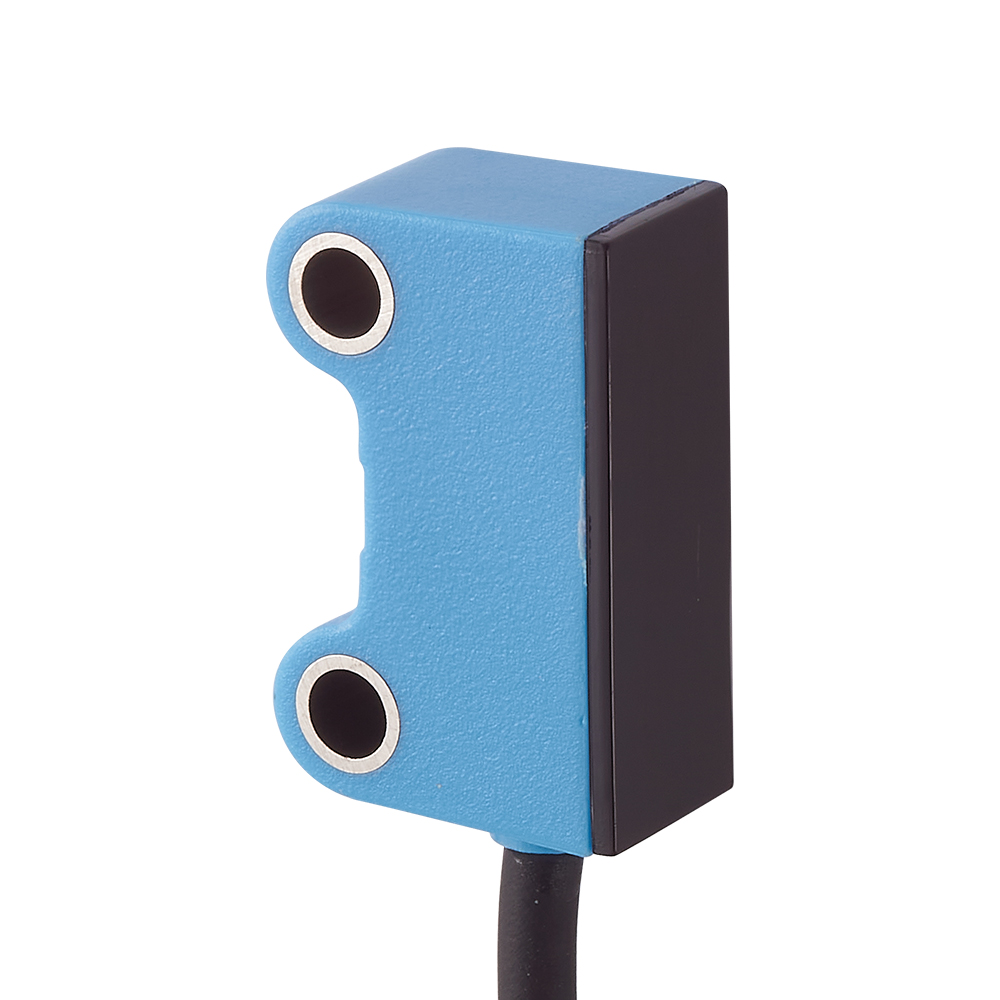

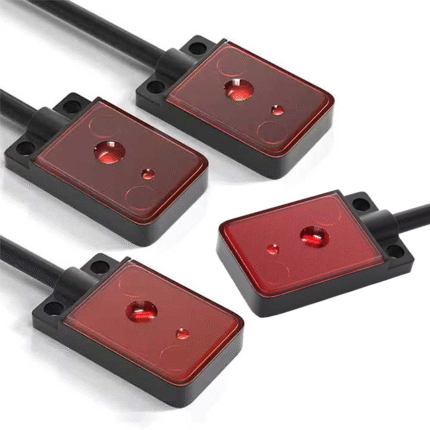

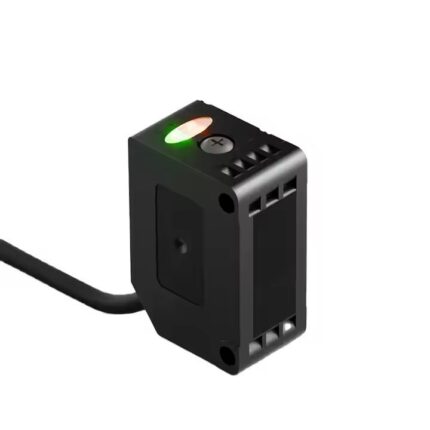

MOTE Smart Micro Photoelectric Sensor Switch Diffuse Reflection Sensor NPN/PNP
- Supply voltage：DC12-24 pulsation (p-p) less than 10% (DC10-30)
- Current consumption：≤25mA
- Switching capacity：≤3W
- Residual voltage：1V or less (load current 100mA)
- Detecting objects：Opaque objects with a diameter of more than 4mm
- Hysteresis：More than 20% of the detection distance
- Control output：Normally open and normally closed switchable
- Response frequency：Less than 1ms
Product Features
- Supply voltage：DC12-24 pulsation (p-p) less than 10% (DC10-30)
- Current consumption：≤25mA
- Switching capacity：≤3W
- Residual voltage：1V or less (load current 100mA)
- Detecting objects：Opaque objects with a diameter of more than 4mm
- Hysteresis：More than 20% of the detection distance
- Control output：Normally open and normally closed switchable
- Response frequency：Less than 1ms
Part Number

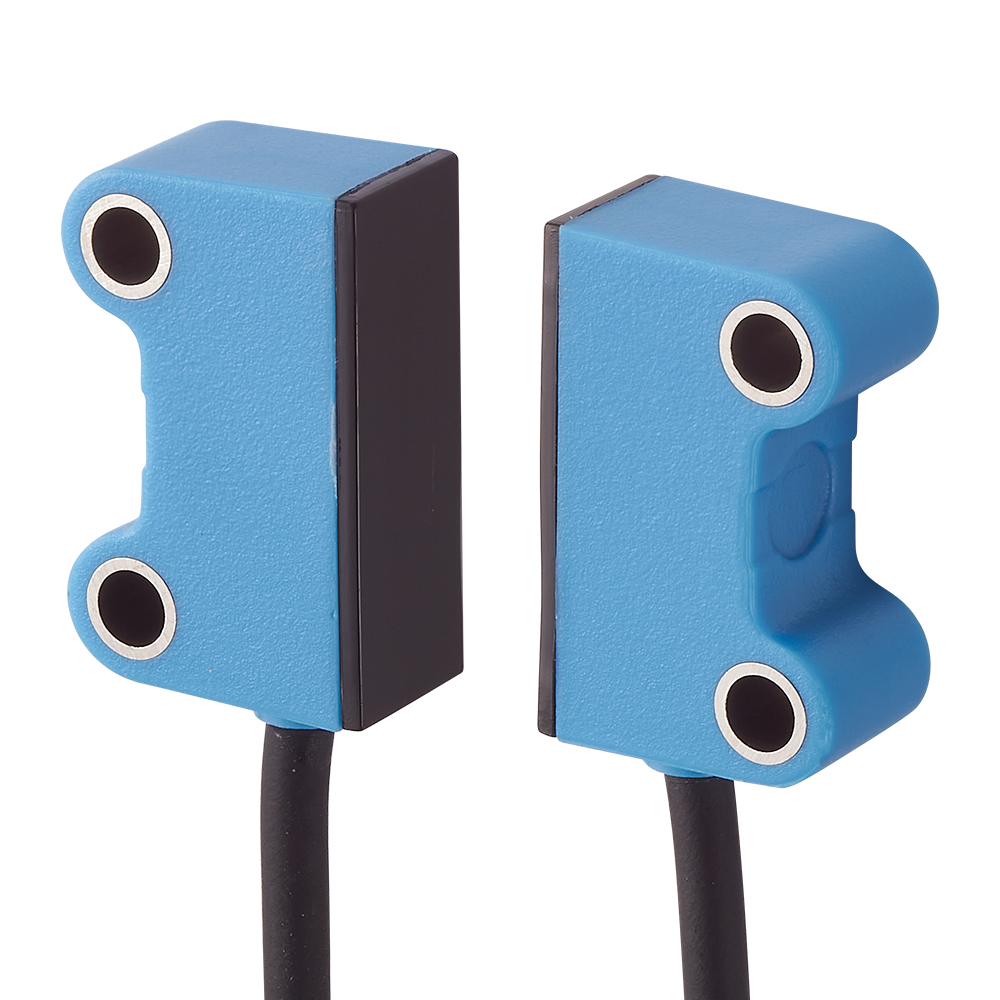

| Model | Through-beam type | Diffuse reflection |
| NPN.NO lead type | EZ-T31 | EZ-D31 |
| PNP.NO lead type | EZ-T31P | EZ-D31P |
| Detection distance | 1500mm | 100mm |
| Detecting objects | Opaque objects with a diameter of more than 4mm | |
| Hysteresis | More than 20% of the detection distance | |
| Control output | Normally open and normally closed switchable | |
| Response frequency | Less than 1ms | |
| Supply voltage | DC12-24 pulsation (p-p) less than 10% (DC10-30) | |
| Current consumption | ≤25mA | |
| Switching capacity | ≤3W | |
| Residual voltage | 1V or less (load current 100mA) | |
| Circuit protection | Surge protection, short circuit protection, reverse polarity protection nm | |
| Display Light | Action indicator light (red) | |
| Ambient temperature | Operation: -25°C~+70°C (no ice, no frost) Storage: -40°C~+85°C (no ice, no frost) | |
| Lmpact of ambient illumination | Daylight: 10000LX or less Incandescent lamp: 3000LX or less | |
| Operating environment humidity | Operation: 45%-85% (no freezing) RH Storage: 35%-85% (no freezing) RH | |
| Effect of voltage | When the rated power supply voltage fluctuates within ±15%, the detection distance changes within ±1% | |
| Insulation resistance | 50MΩ or more between charging part and shell | |
| Dielectric strength | AC1000V or above, 50/60Hz1min, between charging part and shell | |
| Vibration (durability) | 10-55Hz.1.5mm double amplitude, up to 2h in X, Y, Z directions | |
| Impact (durability) | 500m/s² double amplitude, 10 times in each of the X, Y, and Z directions | |
| Protective structure | IP65 | |
