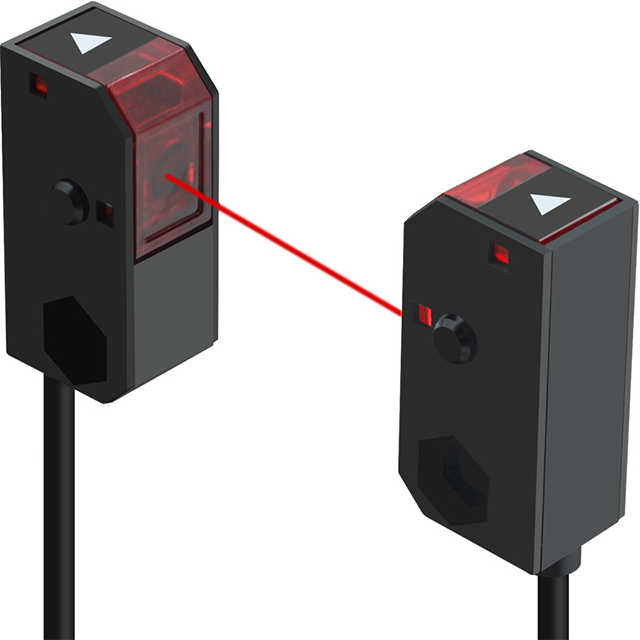

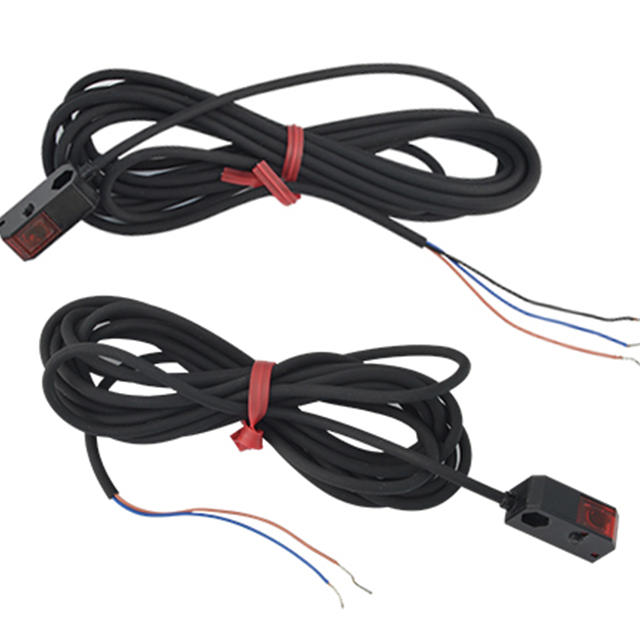

MOTE Small square Miniature Diffuse Reflection Photoelectric Switch Sensor Diffuse Reflection Type Sensor DC NPN Normally Open
- Power supply voltage: DC12-24 pulsation (p-p) less than 10% (DC10-30)
- Current consumption: ≤25mA
- Switching capacity: ≤3W
- Residual voltage: 1V or less (load current 100mA)
- Control output: NPN/PNP transistor collector output
- Response frequency: Less than 1ms
- Detecting objects：Opaque objects with a diameter of more than 4mm
Product Features
- Power supply voltage: DC12-24 pulsation (p-p) less than 10% (DC10-30)
- Current consumption: ≤25mA
- Switching capacity: ≤3W
- Residual voltage: 1V or less (load current 100mA)
- Control output: NPN/PNP transistor collector output
- Response frequency: Less than 1ms
- Detecting objects：Opaque objects with a diameter of more than 4mm
Part Number
| Detection method | Through-beam type | Diffuse reflection |
| Product Model | EZ-T21 | EZ-D21 |
| Detection distance | 1m | 100mm |
| Detecting objects | Opaque objects with a diameter of more than 4mm | |
| Control output | NPN/PNP transistor collector output | |
| Response frequency | Less than 1ms | |
| Supply voltage | DC12-24 pulsation (p-p) less than 10% (DC10-30 | |
| Current consumption | ≤25mA | |
| Switching capacity | ≤3W | |
| Residual voltage | 1V or less (load current 100mA) | |
| Circuit protection | Surge protection, short circuit protection, reverse polarity protection nm | |
| light source | Infrared modulated light | |
| Display Light | Action indicator light (red) | |
| Ambient temperature | Operation: -25℃~+70℃ (no ice, no frost) Storage: -40℃~+85℃ (no ice, no frost) | |
| Lmpact of ambient illumination | Daylight: 10000LX or less Incandescent lamp: 3000LX or less | |
| Operating environment humidity | Operation: 45%-85% (no freezing) RH Storage: 35%-85% (no freezing) RH | |
| Effect of voltage | When the rated power supply voltage fluctuates within ±15%, the detection distance changes within ±1% | |
| Insulation resistance | 50MΩ or more between charging part and shell | |
| Dielectric strength | AC1000V or above, 50/60Hz1min, between charging part and shell | |
| Vibration (durability) | 10-55Hz, 1.5mm double amplitude, up to 2h in X, Y, Z directions | |
| Impact (durability) | 500m/s2 double amplitude, 10 times in X, Y, Z directions | |
| Protective structure | IP65 | |
