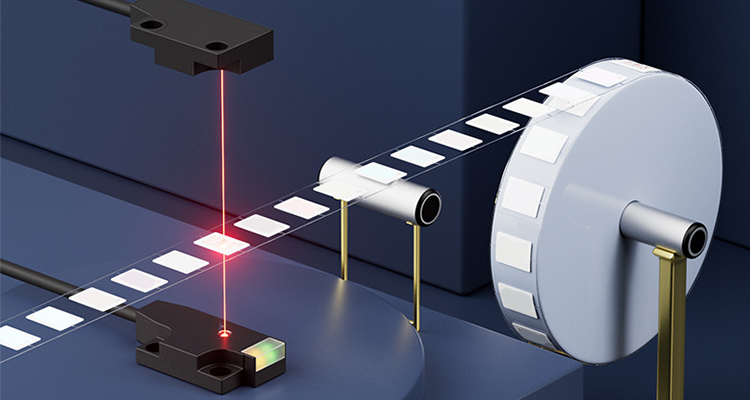

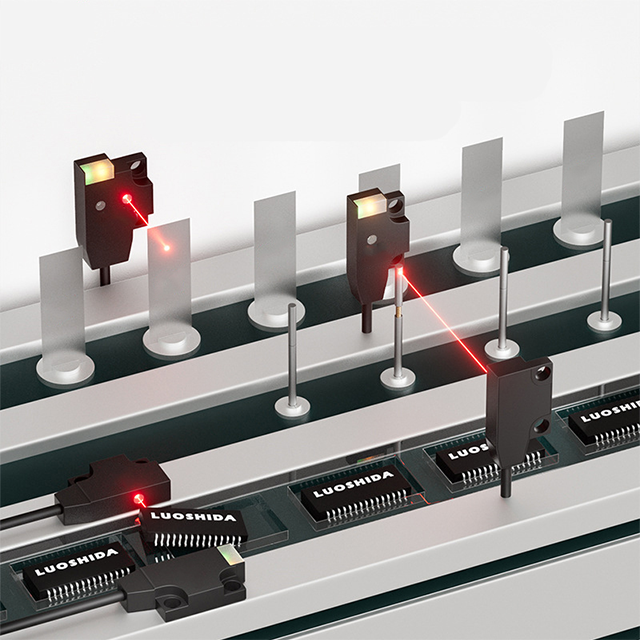

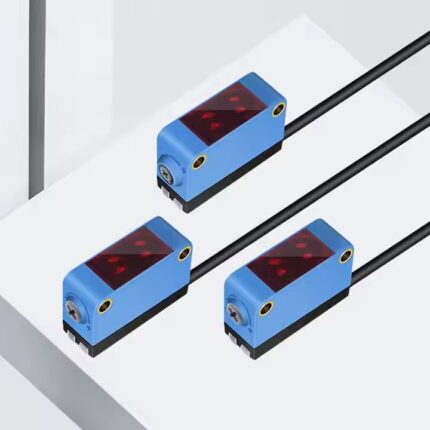

MOTE Micro Ultra-thin Small Flat Photoelectric Diffuse Reflection Sensor Front Side
- Power supply voltage: DC12-24V, ripple (p-p) 10% or less (DC10-30V)
- Current consumption: ≤25mA
- Switching capacity: ≤3W
- Residual voltage: 1V or less (load current 100mA)
- Light source (wavelength): 650nm red LED
Product Features
- ower supply voltage: DC12-24V, ripple (p-p) 10% or less (DC10-30V)
- Current consumption: ≤25mA
- Switching capacity: ≤3W
- Residual voltage: 1V or less (load current 100mA)
- Light source (wavelength): 650nm red LED
Part Number
| Product Model | Diffuse reflection type | Front-facing | Side-facing | ||
| NPN output | EZ-FD14 | EZ-FT13 | EZ-FT19 | EZ-LT13 | EZ-LT19 |
| PNP output | EZ-FD14P | EZ-FT13P | EZ-FT19P | EZ-LT13P | EZ-LT19P |

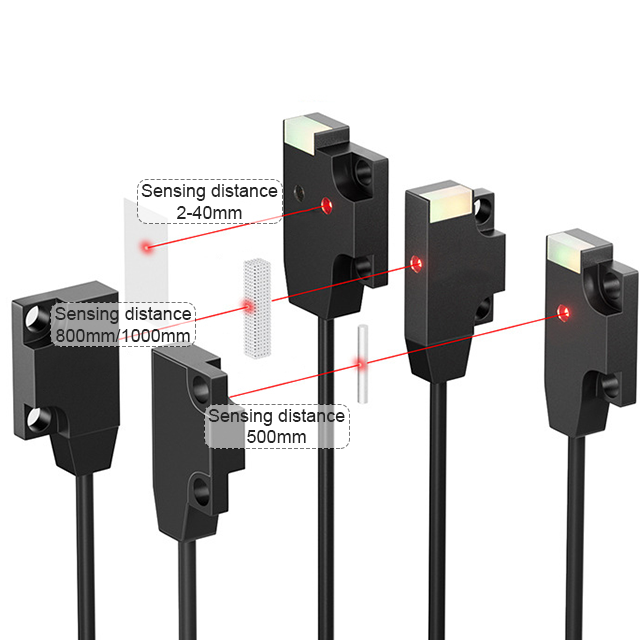

| Detection distance | 25mm(BGS function) | 500mm | 1000mm | 500mm | 1000mm |
| Light source (wavelength) | 650nm red LED | ||||
| Detection object | Opaque objects with a diameter of more than 4mm | ||||
| Contrast | More than 20% of the detection distance | ||||
| Control output | Black is the signal output line, normally open and normally closed can be switched with white line | ||||
| Response frequency | Below 1ms | ||||
| Power supply voltage | DC12-24 pulsation (p-p) less than 10% (DC10-30) | ||||
| Consumption current | ≤25mA | ||||
| Switching capacity | ≤3W | ||||
| Residual voltage | 1V or less (load current 100mA) | ||||
| Ambient temperature | Operation: -25°C~+70°C (no ice, no frost) Storage: -40°C~+85°C (no ice, no frost) | ||||
| Dielectric strength | AC1000V or above, 50/60Hz1min, between charging part and shell | ||||
| Vibration (durability) | 10-55Hz, 1.5mm double amplitude, up to 2h in X, Y, Z directions | ||||
| Impact (durability) | 500m/s² double amplitude, 10 times in each of the X, Y, and Z directions | ||||

MOTEE
Motee Chuangzhi (Guangdong) International Technology Co., Ltd. was established in 2013. The company specializes in a wide range of sensor technologies, including photoelectric sensors, slot sensors, proximity sensors, fiber optic sensors, safety sensors,displacement sensors, barcode readers, and color sensors. As a leading enterprise in the field of industrial automation intelligent sensors, Mote Chuangzhi integrates high-end chip design, advanced semiconductor packaging, and in-depth research and development of microelectronic integrated circuits, precision production, and global sales. We provide core components for China's high-end intelligent equipment manufacturing industry and are recognized as one of the most influential sensor brand manufacturers in the industry. Our team comprises hundreds of professionals dedicated to research and development, sales, and technical services.
