MOTE Grating Displacement Sensor RS485 Communication Output Accuracy Can Reach 0.002mm

10 million rebound tests

RS485 communication output, accuracy up to 0.002mm

CMOS grating measurement principle

High-speed reading from the CMOS sensor eliminates temperature sensitivity and tracking errors

描述

Description

10 million rebound tests

RS485 communication output, accuracy up to 0.002mm

CMOS grating measurement principle

High-speed reading from the CMOS sensor eliminates temperature sensitivity and tracking errors

Product Features

Operating voltage:DC5V

Working current:<50MA

Data update speed:50ms

Lead length:2m

Part Number

Product Name Model Measuring range (mm) Full accuracy Resolution Waterproof grade

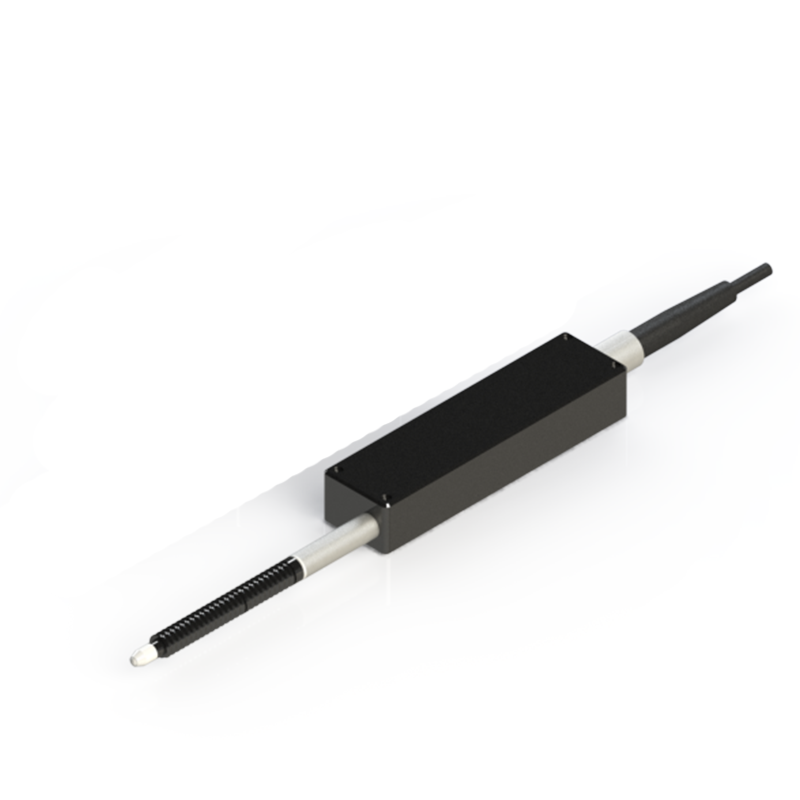

Standard grating displacement sensor MD-LV1050 0-12.7 ≤10μm 5μm IP65
MD-LV1010 ±2μm 1μm
MD-LV1005 ≤2μm 0.5μm

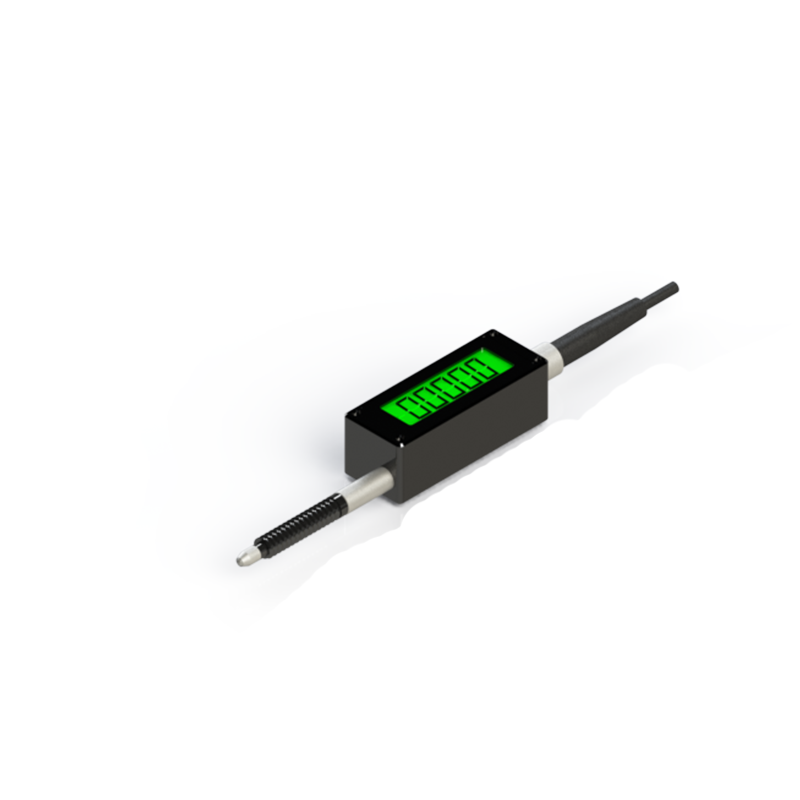

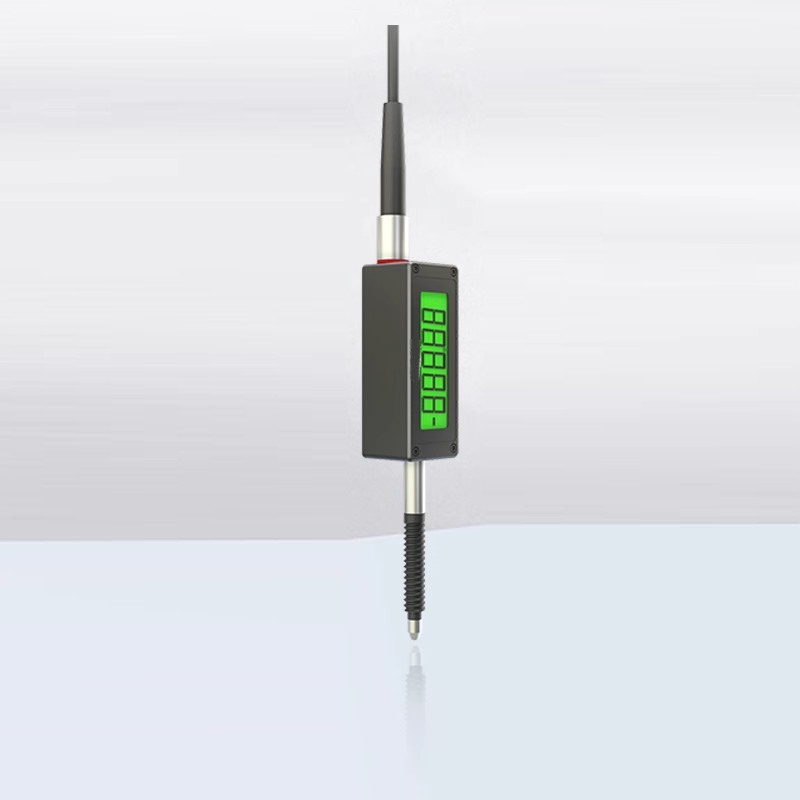

Digital grating displacement sensor MD-LV1050D ≤10μm 5μm
MD-LV1010D ±2μm 1μm
MD-LV1002D ≤1.4μm 0.2μm
Detection system Grating measurement systems, image sensors
Operating voltage DC5V
Working current <50MA
Data update speed 50ms
Lead length 2m
